11. From the local management interface menu, select Connect from the
Call menu or click the Call icon
.
12. In the HyperTerminal window, hit any key to activate the ATI
Diagnostics menu.
13. In the ATI Diagnostics menu, type X to select XMODEM download
updated System Software, and press the Enter key.
The following prompt is displaying, indicating that the system is
ready for the download:
The System is now ready for download. Please
start your XMODEM transfer.
14. From the HyperTerminal main window, select the Send icon
or
select the Transfer menu, and then select Send File... from the pull-
down menu, as shown in Figure 5.

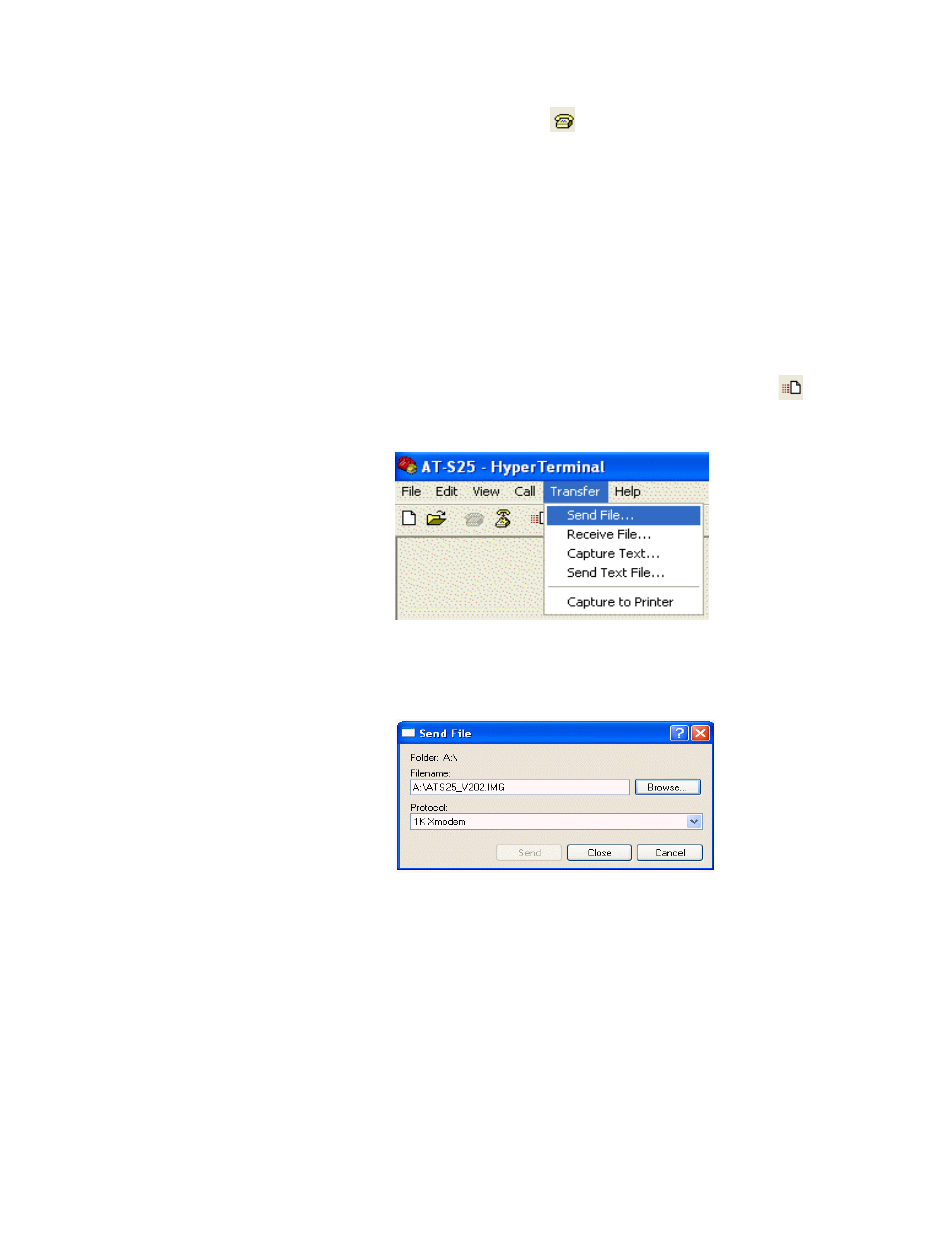

Figure 5 Local Management Window - Send File Menu
The Send File pop-up window in Figure 6 is displayed.
Figure 6 Send File Pop-Up Window
15. Click the Browse button to specify the location and the file to be
downloaded onto the switch.
16. Click on the Protocol filed and select the transfer protocol as either
Xmodem or, for faster download, 1K XModem.
The image file you are downloading is “ATS25_V202.IMG”.
17. Click Send.
