COMMAND DETAILS
55
Syntax :DISPlay:WAVEform {VECTor | DOT | ?}
Parameter VECTor Vectors
DOT Dots
Return parameter Returns VECTOR or DOT.
Example :DISPlay:WAVEform VECTor
Sets the waveform to vectors.
:DISPlay:OUTPut
Description Returns the screen image as a 16 bit RGB run
length encoded image.
Syntax :DISPlay:OUTPut?
Return parameter Format: header+data+LF
For example assuming the image data size is 31649
bytes then the following would be returned:
#531649<[count] [color] [count] [color]….. >
Where #531649 is the header, each [count] and [color]
data are 2 bytes and is a line feed character.

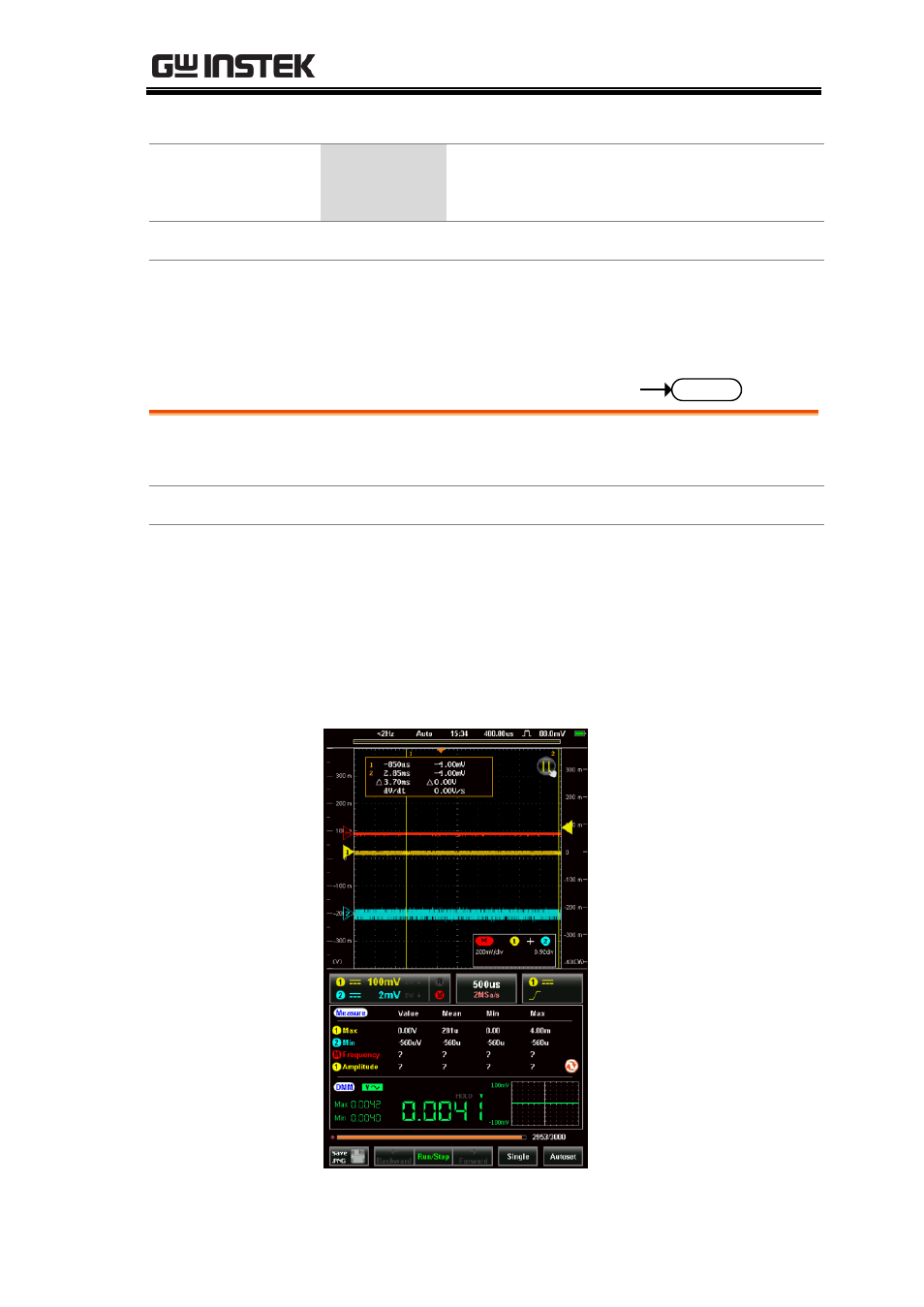

Example Image
(Image extracted
using Labview)
Query
