GP3000 Series Hardware Manual
3-18

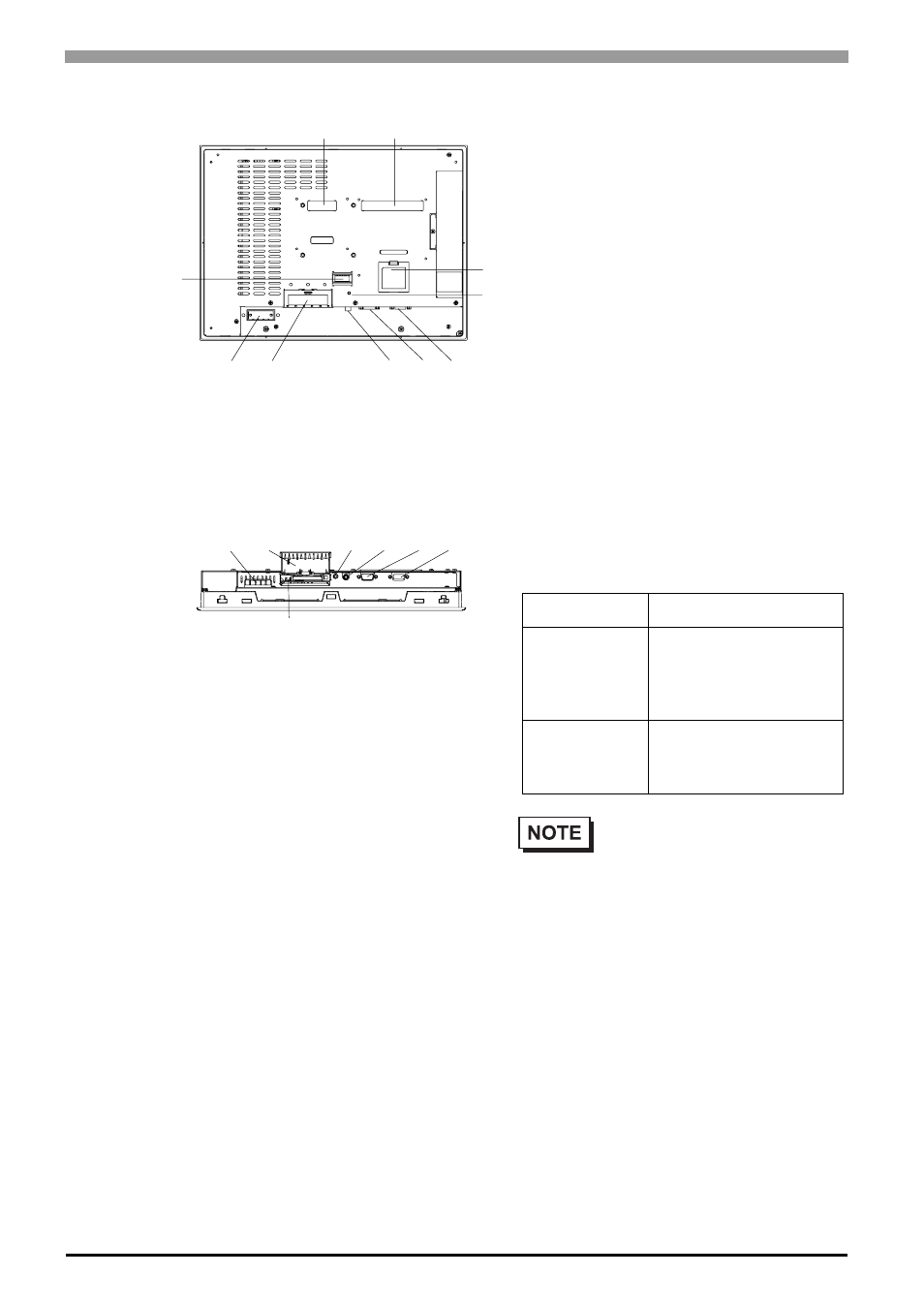

E: Expansion Unit Interface 1
Connects expansion units with communication
features.
F: VM Unit Interface
The interface which connects the expansion unit
which is a kind of Display manufactured by Pro-
face.
G: Auxiliary input/output /Voice Output
Interface (AUX)
This interface is External Reset, Alarm Output,
Buzzer Output, and sound output.
H: Function Expansion Memory Interface Cover
Remove the cover. This is the interface for inserting
the function expansion memory that expands Pro-
face’s Screen Editor’s alarm and text table function.
I: CF Card Access LED
This lamp light up when CF card is inserted and CF
card cover is closed. However, opening the CF card
cover, in the CF card while accessing it continues
to light up.
J: Power Input Terminal Block (AC model), Power Plug Connector (DC model)
K: CF Card Cover
The CF Card I/F and Dip Switches are located in the CF Card Cover open. This cover must be closed when
accessing the CF Card.
L: Audio Input Interface (L-IN/MIC)
This interface connects a microphone. Use for mini jack connector (
Φ3.5mm).
M: Video Input Interface (V-IN)
This interface connects a video camera. Supports NTSC (59.9Hz) / PAL (50Hz) formats. Use for RCA
Connector (75
Ω).
Access Lamp Indicates
Green ON
The CF Card is inserted
and the CF Card Cover
is closed. Or, the CF
Card is being accessed.
Green OFF
The CF Card is not
inserted or is not being
accessed.
• Do not remove or insert the CF
Card when the LED lamp is on.
Doing so may damage data on the
CF Card.
O N J K
H
I
E F
M
Back
G
O N J K L M
Bottom
P
