Chapter 4 Specifications
4-79
„Display Specifications
„Touch Panel Specifications
AGP-3750T
Revision *1

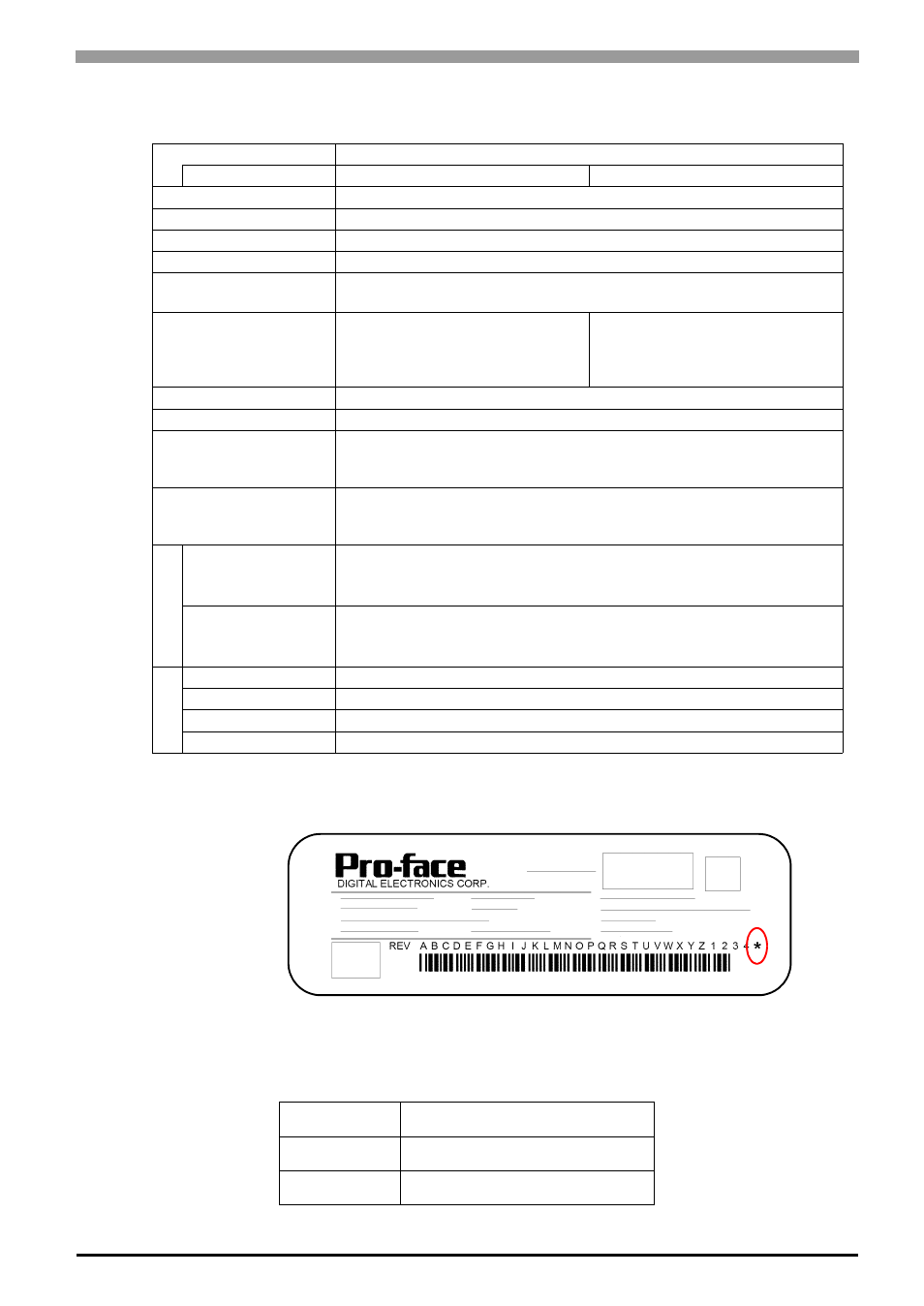

*1 The revision number of the GP is shown in the label affixed to the GP.
In the example shown below, an asterisk “*“ is displayed in the position where “5”
should be, meaning “Rev.5”.
When GP Rev.5 is NOT marked When GP Rev.5 is marked
Display Type TFT Color LCD
Resolution W1024 X H768 pixels
Dot pitch W0.297mm[0.01in] X H0.297mm[0.01in]
Effective Display Area W306.2mm[12.06in] X H230.1mm[9.06in]
Color/Shade level
65,536 Colors (No blink)
16,384 Colors (Enables blink feature)
Backlight CCFL
LED backlight (The backlight
cannot be replaced by the user.
The unit must be sent back for
backlight replacement.)
Brightness control 8 levels of adjustment available via touch panel
Contrast Adjustment No corresponding function
Backlight Service Life
50,000hrs. or more
(at 25°C and continuous operation - period until
backlight brightness decreases to 50% or backlight starts to flicker)
Language Fonts
Japanese: 6962 (JIS Standards 1 & 2)(including 607 non-kanji characters)
ANK: 158 (Korean, Traditional Chinese and Simplified Chinese fonts are
downloadable.)
Te
x
t c
o
m
p
o
s
it
io
n
Character Sizes
Standard font: 8X8, 8X16, 16X16 and 32X32 dot fonts
Stroke font: 6 to 127dot fonts
Font Sizes
Standard font: Width can be expanded up to 8 times.
Height can be expanded up to 8 times
*2
*2 The other font sizes can be set up by software.
Te
x
t
8 X 8 dots 128 Char. X 96 rows
8 X 16 dots 128 Char. X 48 rows
16 X 16 dots 64 Char. X 48 rows
32 X 32 dots 32 Char. X 24 rows
Type Resistive Film (analog)
Resolution 1024 X 1024
Service Life 1,000,000 times or more
