Chapter 8 Installation and Wiring
8-37

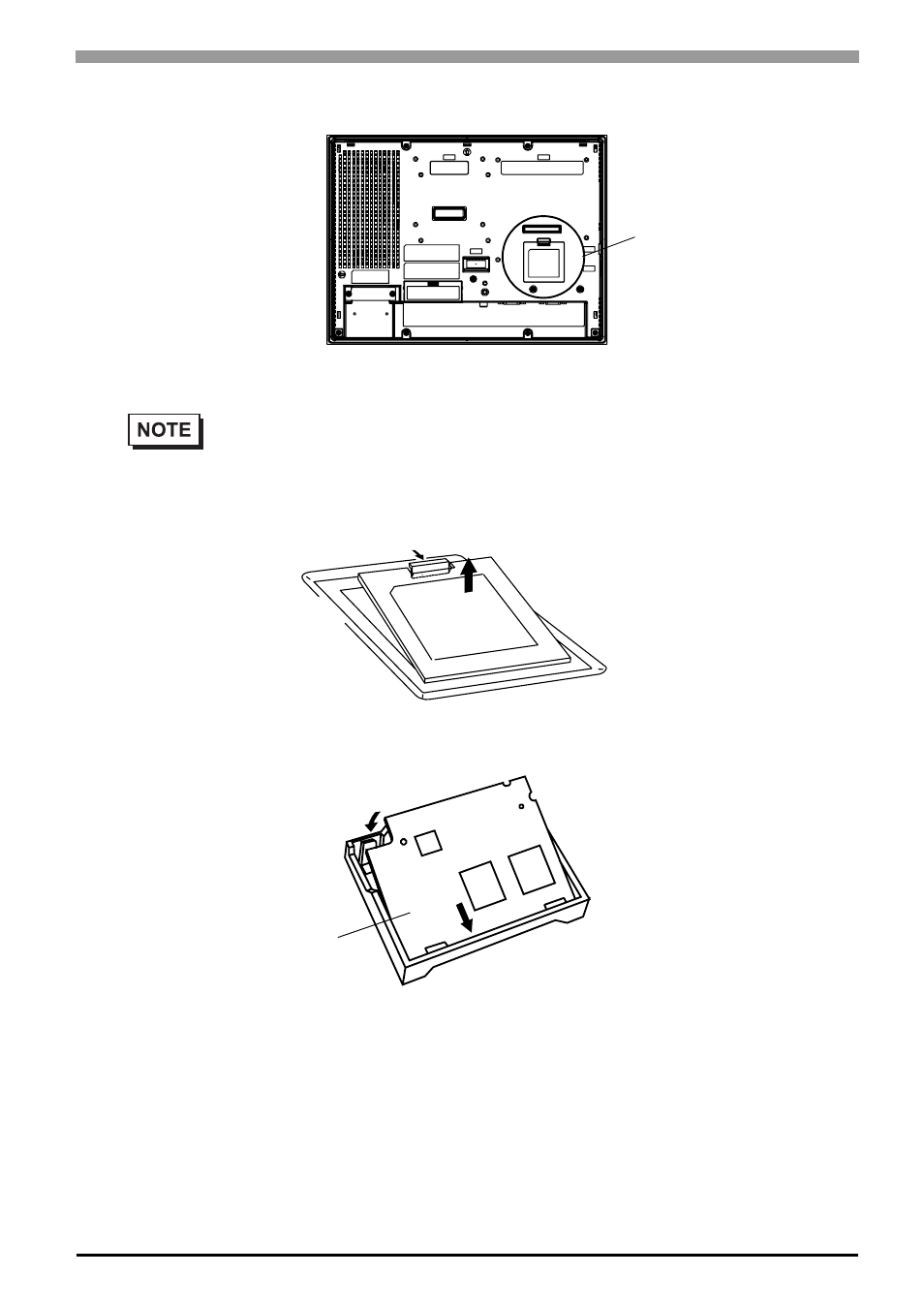

(2) Verify the position of the Function Expansion Memory interface cover.
(3) While pushing on the Function Expansion Memory interface cover’s tab, raise and open.
(4) Insert the Function Expansion Memory at an angle so it’s base plate locks on to the frame’s tabs. While
pushing the Function Expansion Memory in the tab’s direction, connect to the push-in connector.
(5) Verify that the Function Expansion Memory is securely attached to the frame.
(6) Return the Function Expansion Memory interface cover to its original position.
• Depending on the series in use, the position of the Function Expansion Memory interface cover
will differ, however, the installation method will be the same.
Function Expansion
Memory interface cover
GP-3600 Series rear view
Function Expansion Memory
2
1
