Proface AGP3500 - 10.4 DIO HMI" User Manual
Page 218
Chapter 9 Maintenance
9-9
(6)

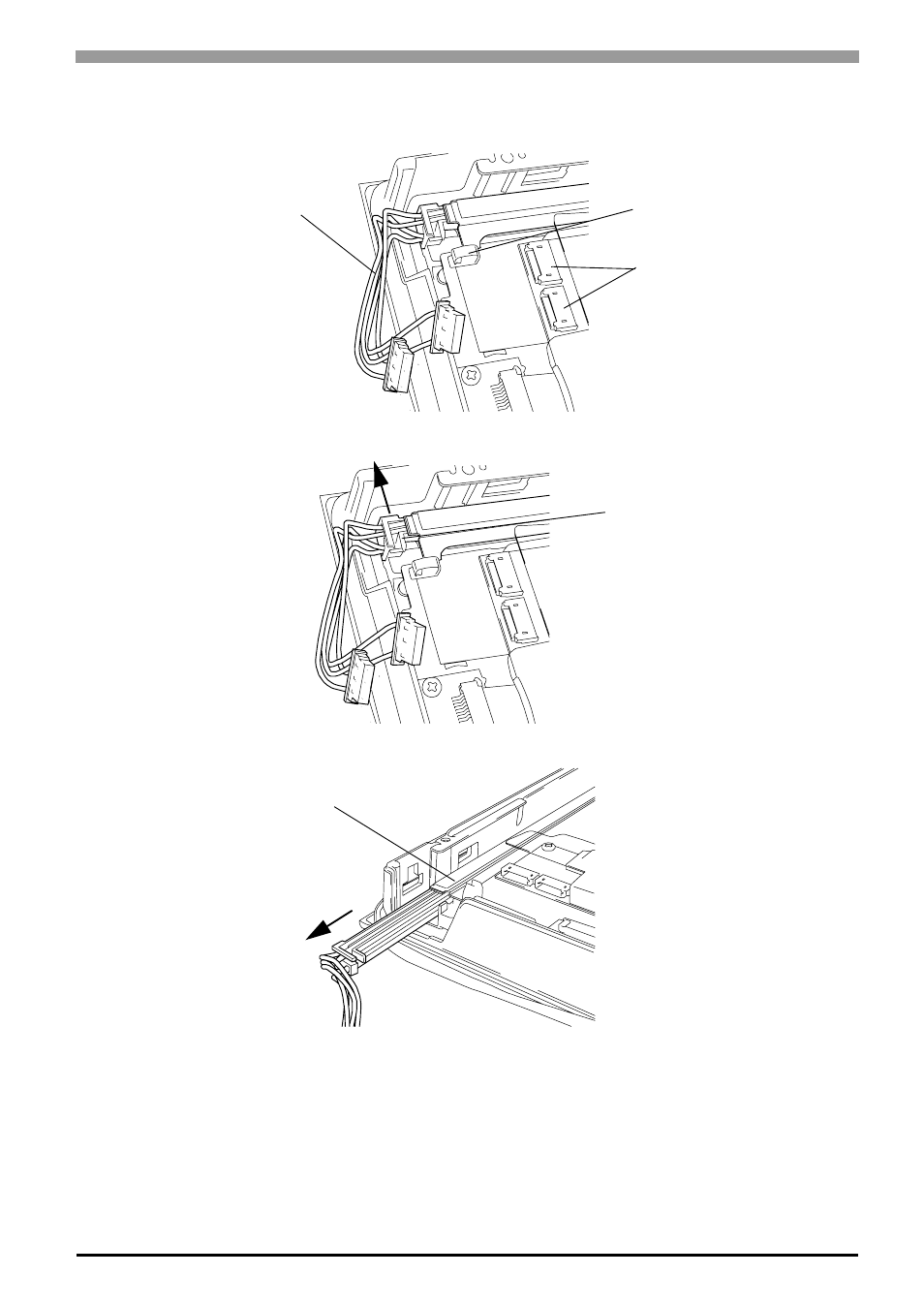

Disconnect the Backlight Unit cable from the connector on the inverter board, and then remove the cable
from the cable clamp.
(7)
Remove the hook from the Backlight Unit.
(8)
Remove the Backlight Unit while sliding it along the groove.
Connector
Cable Clamp
Cable
Hook
Backlight Unit
