GP3000 Series Hardware Manual
3-8
D: Auxiliary input/output /Voice Output
Interface (AUX)
This interface is External Reset, Alarm Output,
Buzzer Output, and sound output.
E: Audio Input Interface (L-IN/MIC) (AGP-
3450T only)
This interface connects a microphone.
Use for mini jack connector (
Φ3.5mm).
F: Video Input Interface (V-IN) (AGP-3450T
only)
This interface connects a video camera.
Supports NTSC (59.9Hz) / PAL (50Hz) formats.
Use for RCA Connector (75
Ω).
G: DIO Interface (DIO board type only)
FLEX NETWORK Interface (FLEX
NETWORK board type only)
CANopen Interface (CANopen board type
only)
The interface to which the unit with
communication capabilities is connected.
H: FLEX NETWORK Communication Status
LED
The LED indicates the status of FLEX NETWORK
communication. The LED turns on to indicate the
current status.
I, J, K: CANopen Status LED
This LED indicates the communication status of
the CANopen.
L: Power Plug Connector
M: Serial Interface (COM1)
RS232C/RS422/RS485 serial interface.
D-sub 9-pin plug type connector.
Communication method is switched via software.
N: Serial Interface (COM2)
RS422/RS485 serial interface.
D-sub 9-pin socket type connector.
Status LED Indicates
RUN (Green)
Turns on when
Communication is enabled.
ERR (Red)
Turns on when failure
occurs in connected I/O
Unit.
Status LED Indicates
I
PWR
(Green) ON: When applying current,
OFF: When light is off
J
RUN
(Green) Turns on when
Communication is enabled.
K ERR (Red)
Turns on when failure
occurs in connected slaves
(ex.) Hybrid Terminal Block.

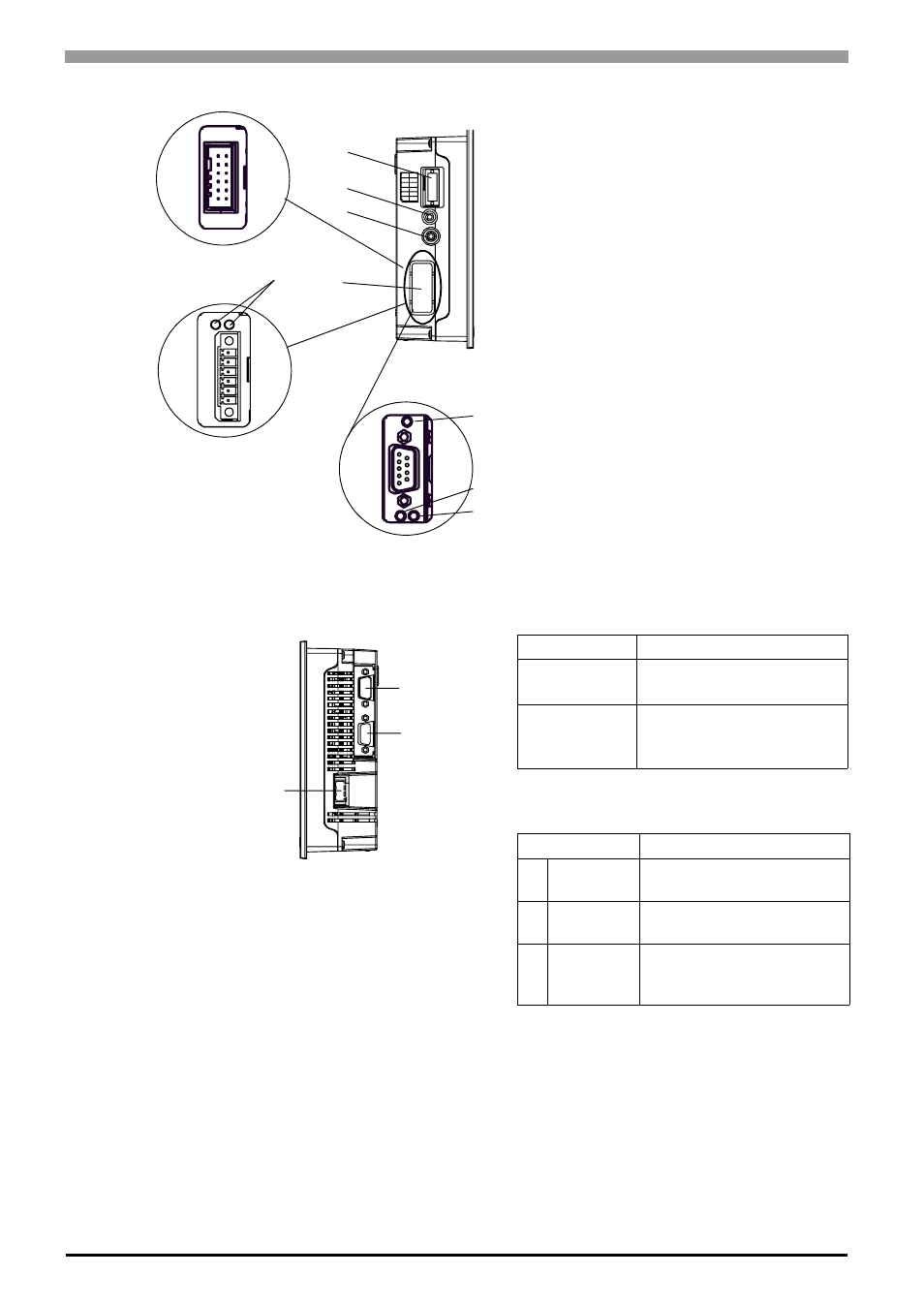

Right side
M
N
L
Left side
D
E
F
G
H
DIO board type
FLEX NETWORK
board type
I
J
K
(Only for AGP-3400S-CA1M/
AGP-3400T-CA1M)
CANopen board type
