Cable attached dimensions – Proface AGP3500 - 10.4 DIO HMI" User Manual
Page 106
Chapter 4 Specifications
4-41

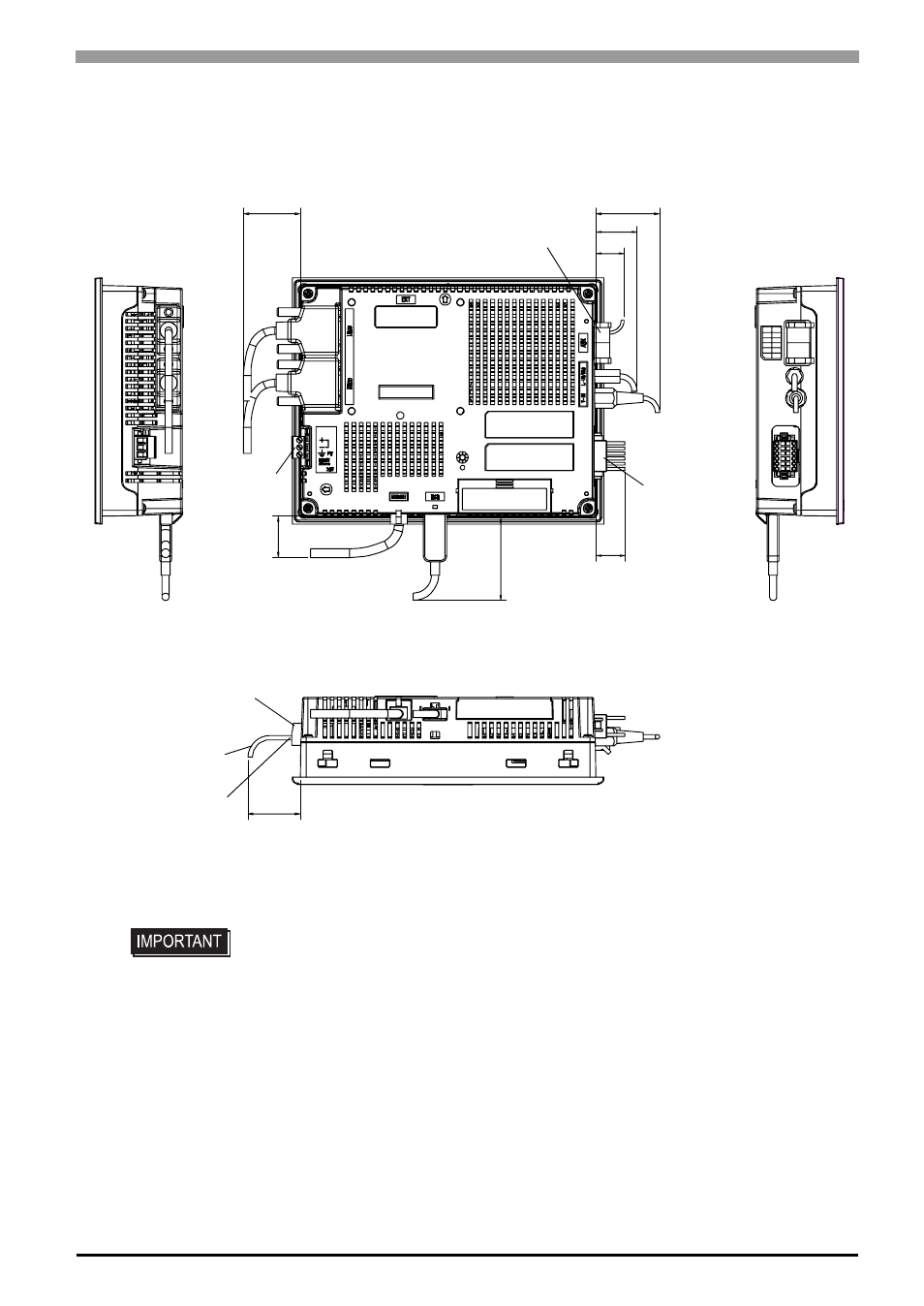

Cable Attached Dimensions
Unit:mm[in.]
• All the above values are designed in case of cable bending. The dimensions given
here are representative values depending on the type of connection cable used.
Therefore, they are all intended for reference only.
Power Connector
59[2.32]
AUX Connector
Bottom
Rear
36
[1.42]
Cable
Power
Connector
40[1.57]
44[1.73]
29[1.14]
20[0.79]
28[1.10]
Right side
Left side
(The figure shows the DIO board type unit.)
Pin terminal
*1
A 20 mm-space is necessary for the DIO/FLEX NETWORK board and a 127 mm-space for the CANopen
board type.
DIO Connector,
FLEX NETWORK
Connector or
CANopen
Connector
*1
