Page 199
GP3000 Series Hardware Manual
8-28
(4)

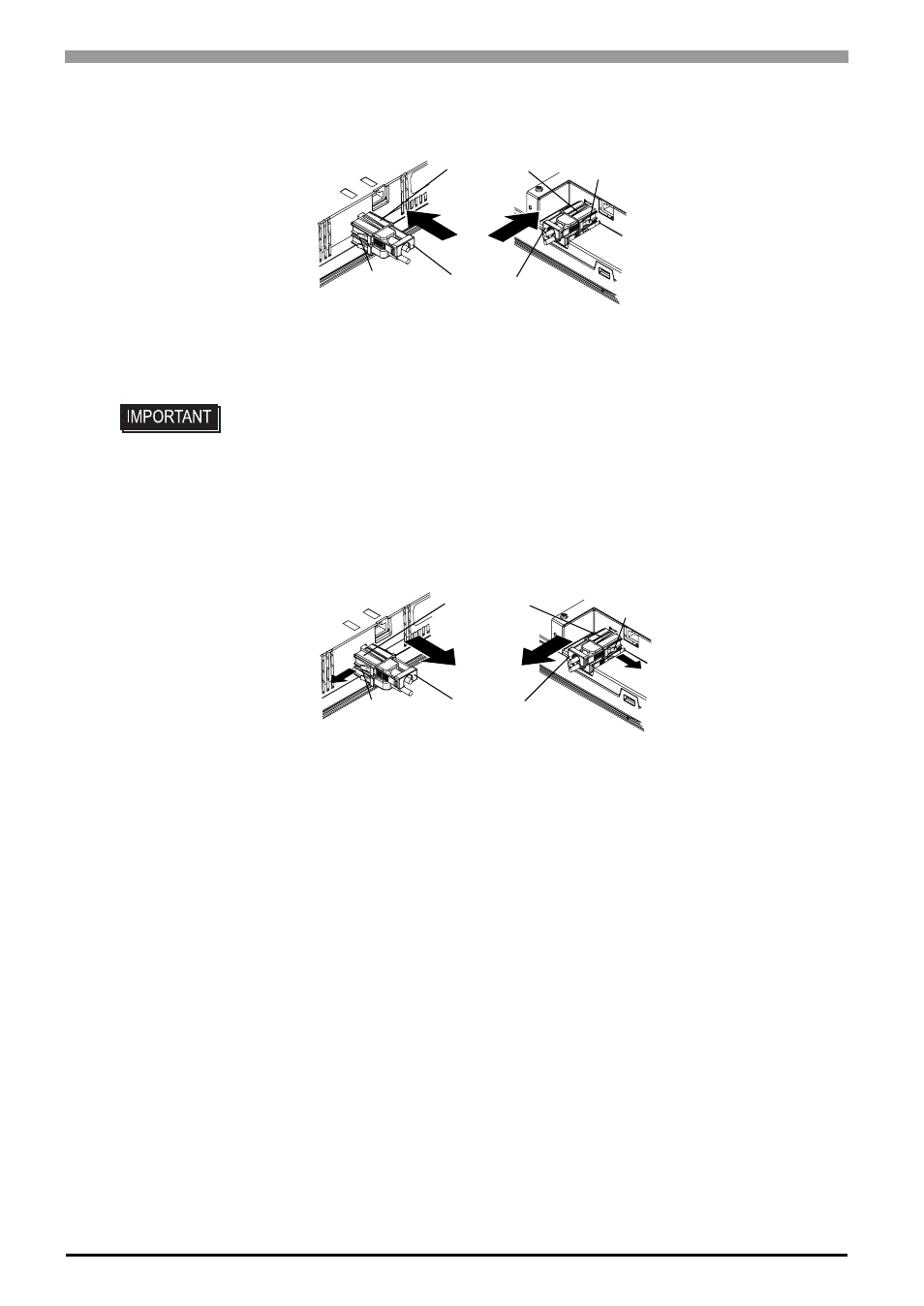

Attach the USB cover to fix the USB cable. Insert the USB cover into the tab of the USB Holder.
In case of installing the second USB cable, repeat the steps (3) and (4).
Removal
(1)
Lift up the tab of the USB Holder and then remove the USB cover as shown below.
(2)
After removing the USB cable, remove the picks pushing the USB Holder from both top and bottom.
• When attaching the USB holder, be sure to attach all the 2 USB covers.
GP-3400/3500/3600 Series
GP-3700 series
USB cover
USB Holder
Tab
Tab
GP-3400/3500/3600 Series
GP-3700 series
USB Holder
USB cover
Tab
Tab
