Chapter 5 DIO Connector
5-3
Input Specifications

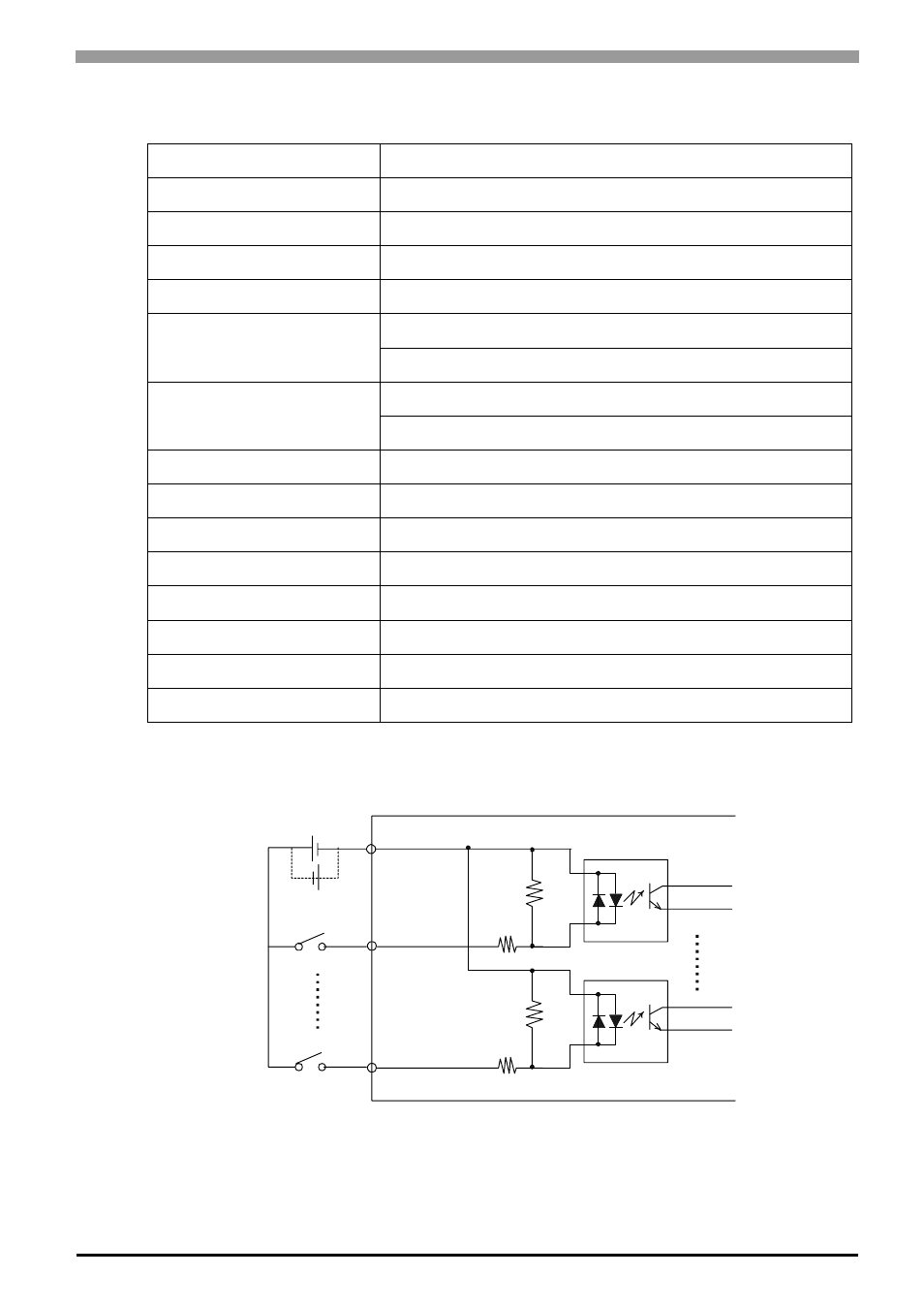

Input Circuit
Rated Voltage
DC 24V
Maximum Allowable Voltage
DC 28.8V
Input Method
Source/Sink Input
Rated Current
5.7 mA (DC 24V)
Input Resistance
4.2 k
Ω
Operation Range
ON Voltage: DC 15V or more
OFF Voltage: DC 5V or less
Input Delay Time
OFF to ON: 1.5 ms or less
ON to OFF: 1.5 ms or less
Common Lines
1
Common Design
6 points/1 common line
External Connection
12-pin connector (used with Output section)
Input Points
6
Input Signal Display
No LED indicators
Status Display
None
Isolation Method
Photocoupler Isolation
External Power Supply
For Signal: DC 24V
DC 24V
External Power
Internal Circuit
COM B3
IN0 B6
Internal Circuit
+
+
-
-
*1
IN5 A4
IN4 B4
IN3 A5
IN2 B5
IN1 A6
*1 Dotted line shows connection to sink output type.
