31

Internal

circuit

Each output

Load

Load

Internal

circuit

Each output

Load

Load

Each output

Each output

Logic

circuit

Logic

circuit

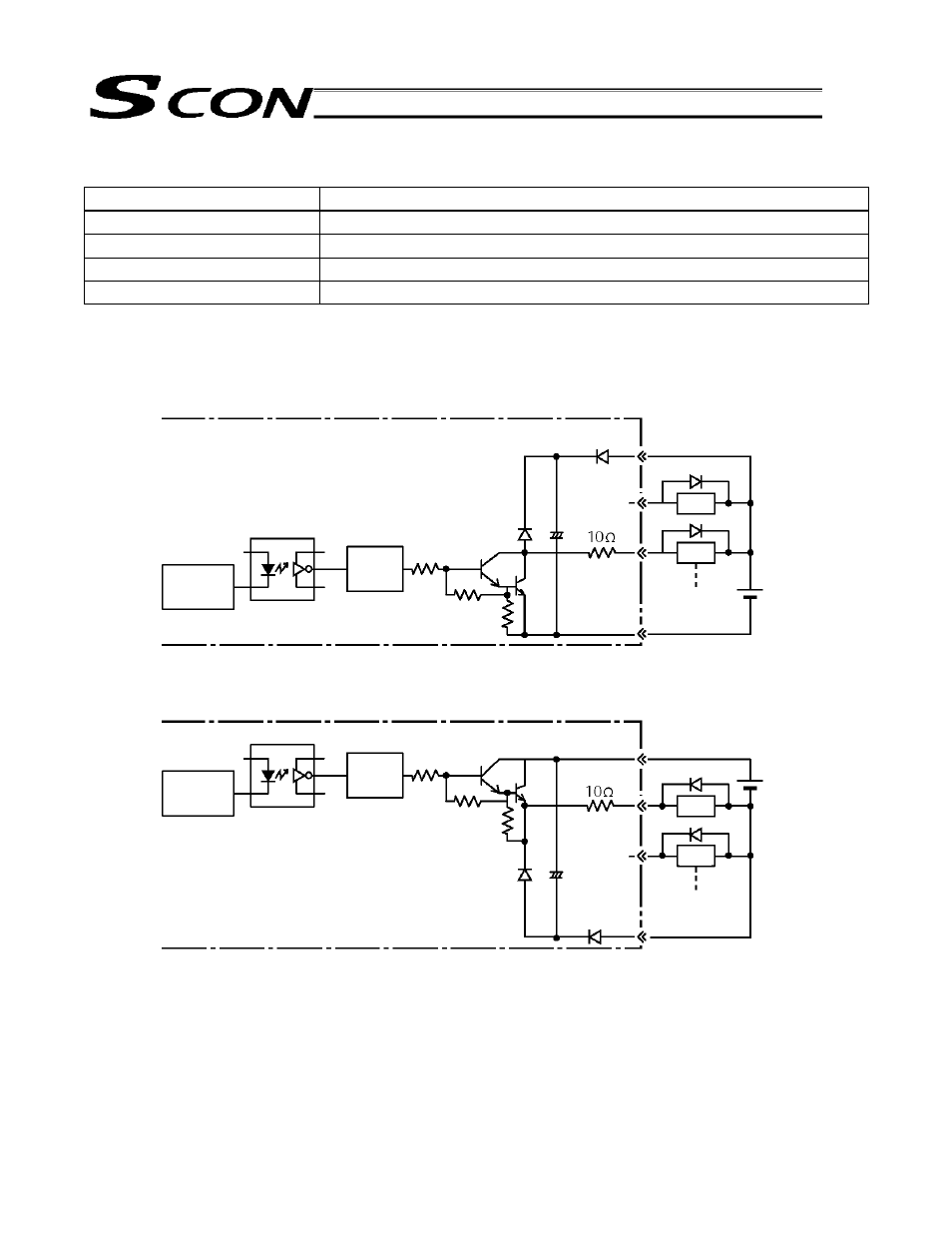

3.7.2

External Output Specifications

Item Specification

Number of output points

16 points

Rated load voltage

24 VDC

Maximum current

100 mA/point 400 mA/8 points

Insulation method

Photocoupler



Internal circuit configuration

[NPN specification]

















[PNP specification]
