202
Appendix
4. PC/Teaching Pendant Connection Method in Multi-axis
Configurations
This section explains the method to permanently connect a PC/teaching pendant in configurations consisting of
multiple axes, so that the PC/teaching pendant connector need not be removed/inserted each time.
The connector is connected to a SIO converter, and the SIO converter sends/receives data to/from each
controller via RS485 serial communication.
The basic specifications are as follow:
[1] Maximum number of connected axes: 16
[2] Maximum length of serial communication cable: 100 m or less
[3] Terminal
resistor: 220
 (Be sure to install a terminal resistor for the last axis to prevent the effect of
radiating noise.)

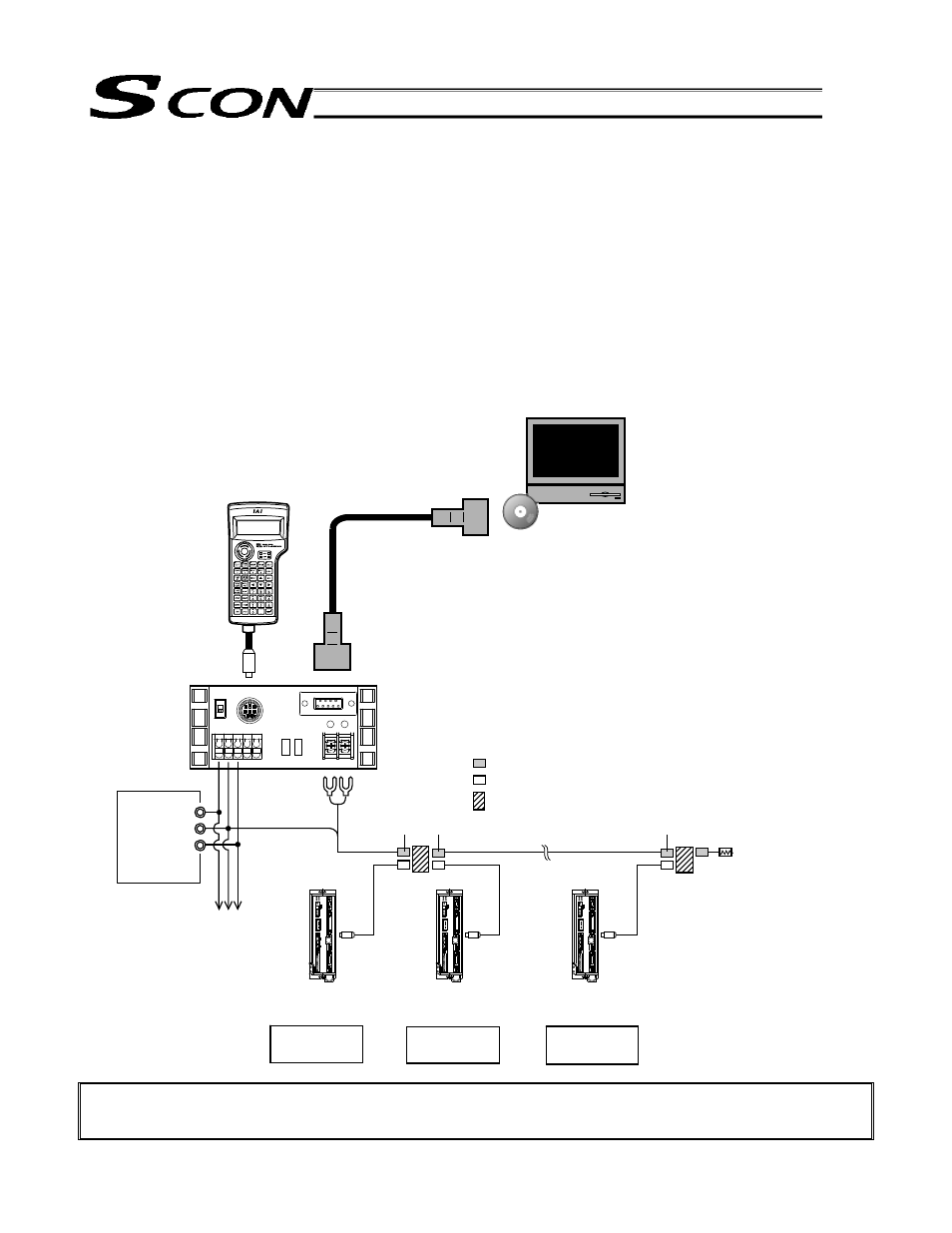

4.1 Connection Example
Caution: Do not connect the teaching pendant and PC at the same time.
If both are connected at the same time, a communication error (message level) will occur.
ADRS switch: 0 ADRS switch: 1 ADRS switch: n-1
Controller 1 Controller 2 Controller n
Teaching pendant
[CON-T]
PC software
(Optional)
RS232C cross cable
(Provided by the user)
Components:
SIO converter (with built-in terminal resistor)
Vertical type
Horizontal type
Input power
supply
Controller power supply
Terminal resistor
R = 220

Controller link cable
E-Con connector (AMP 4-1473562-4: housing color green)
E-Con connector (AMP 3-1473562-4: housing color orange)
Junction (AMP 5-1473574-4)
Green Green Green
(Note) External equipment communication
cable cannot be
used for connection to a PC.
RS232C type
USB type
FG
O V
24 V
PERSONAL
COMPUTER
