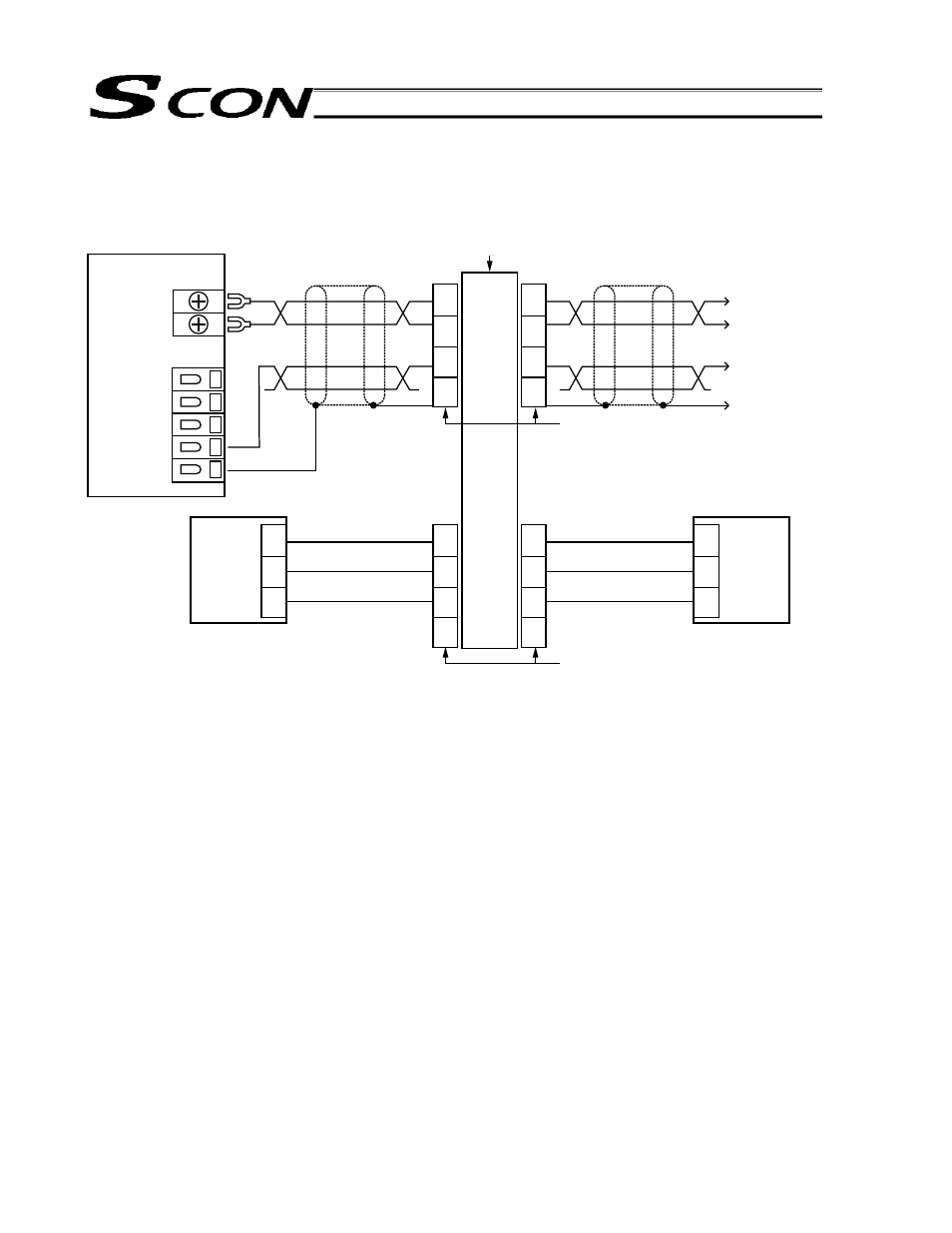

4.5 Detail
Connection
Diagram
(Note) The user must provide the two-paired shielded cable.
If cables other than the recommended brands are connected to [A] and [B], use those with a cable-
sheath outer diameter of 1.35 to 1.60 mm.
Accessories (Optional):
[1] Controller link cable CB-RCB-CTL002 (connector on both ends), length 200 mm
[2] Four-way junction, made by AMP: 5-1473574-4
[3] e-Con connector, made by AMP: 4-1473562-4 (green)
[4] Terminal resistor 220
(with e-Con connector)
Of the above, [2], [3] and [4] are provided for the same number as the controller link cables. Therefore, not all
units are needed when multiple axes are used.
1
2
SIO converter
Two-paired shielded cable
Recommended brand:
Taiyo Electric Wire & Cable
HK-SB/20276XL
2PX22AWG
