122
T1:
6 msec or more; time after selecting/entering a command position until the start input turns ON
(The scan time of the host controller must be considered.)
Caution: When the start signal turns ON, the position complete output will turn OFF and the moving output will
turn ON.
Always turn OFF the start signal after confirming that the start signal is currently ON and the position
complete output has turned OFF.

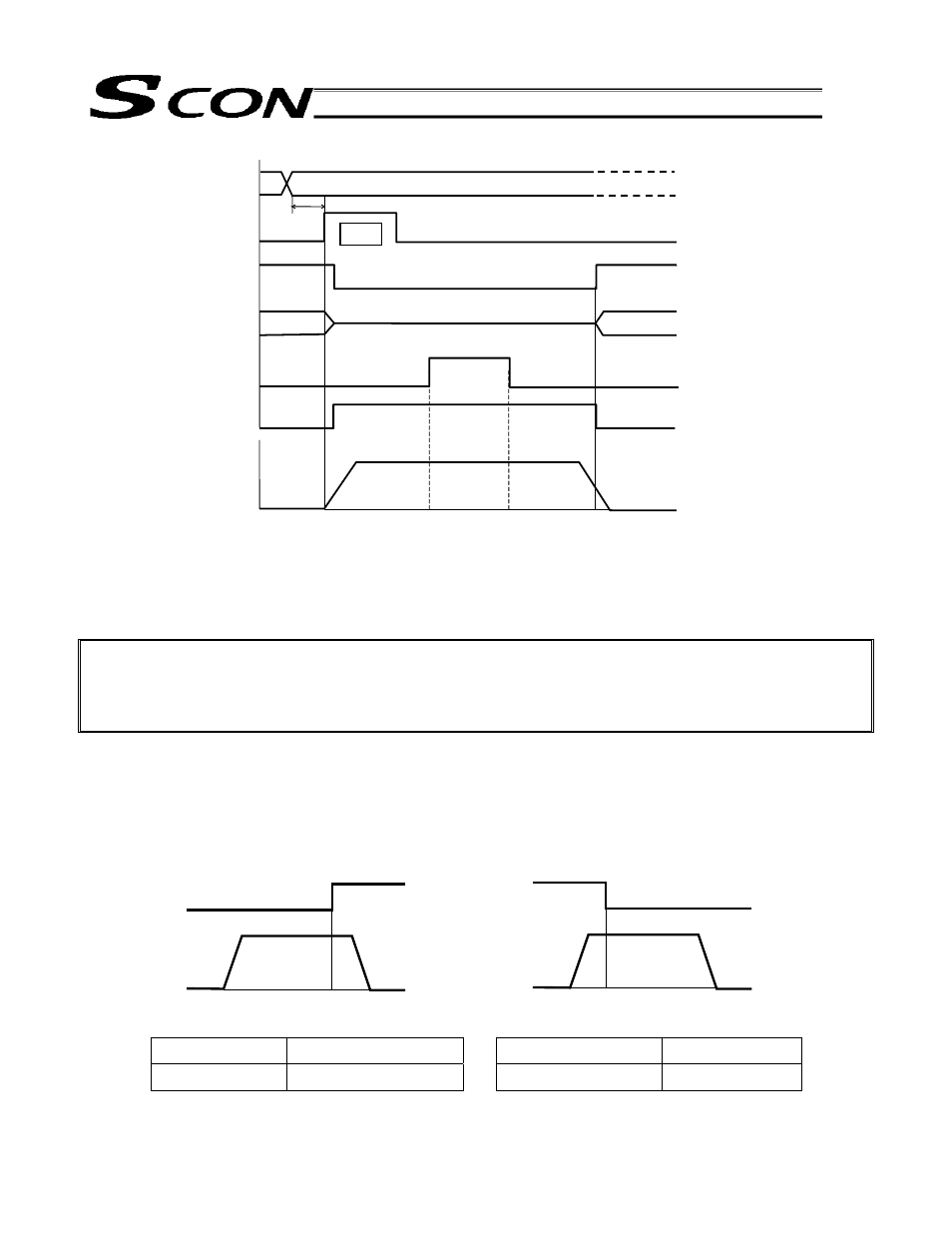

Example of other zone output)
Zone output at 120 or more Zone output at 40 or less
Zone1+ Maximum stroke length Zone1+ 40
Zone1– 120 Zone1– 0
* The zone functions have been changed due to version upgrade. Refer to the precautions at the outset.
Zone Zone
120 40
T
1
Command position
Start
Position complete
Completed position
Zone
Moving
Actuator movement
Speed
Note
0 mm 40 mm 120 mm 150 mm
