145
1.3.2 Pulse Converter (JM-08)
Model: JM-08
Description: Pulse converter + Input/output e-CON connector
This converter converts differential pulses (operation system compliant to RS-422) to open-collector pulses.
It is possible to use feedback pulse output to operate other devices of open collector pulse train inputs. However,
cautions must be paid to input frequency specifications of input devices.
Basic specifications
 Input power supply: 24 VDC  10% (50 mA max.)
 Differential input:
2 phases (differential signal compliant to RS-422, maximum 10 mA/phase)
 Input frequency:
500 kHz max.
 Output:
2 phases (24 VDC open-collector pulse, collector current: maximum 25 mA/phase)
 Weight:
10 g max. (cable connector not included)
 Accessory:
e-CON connector on the plug side
37104-3122-000FL made by 3M: 2 units attached
Applicable wire: AWG24 to 26, 0.14 to 0.3 mm (max.) {EMBED Equation 3}
Final outer diameter:
1.0 to 1.2 mm

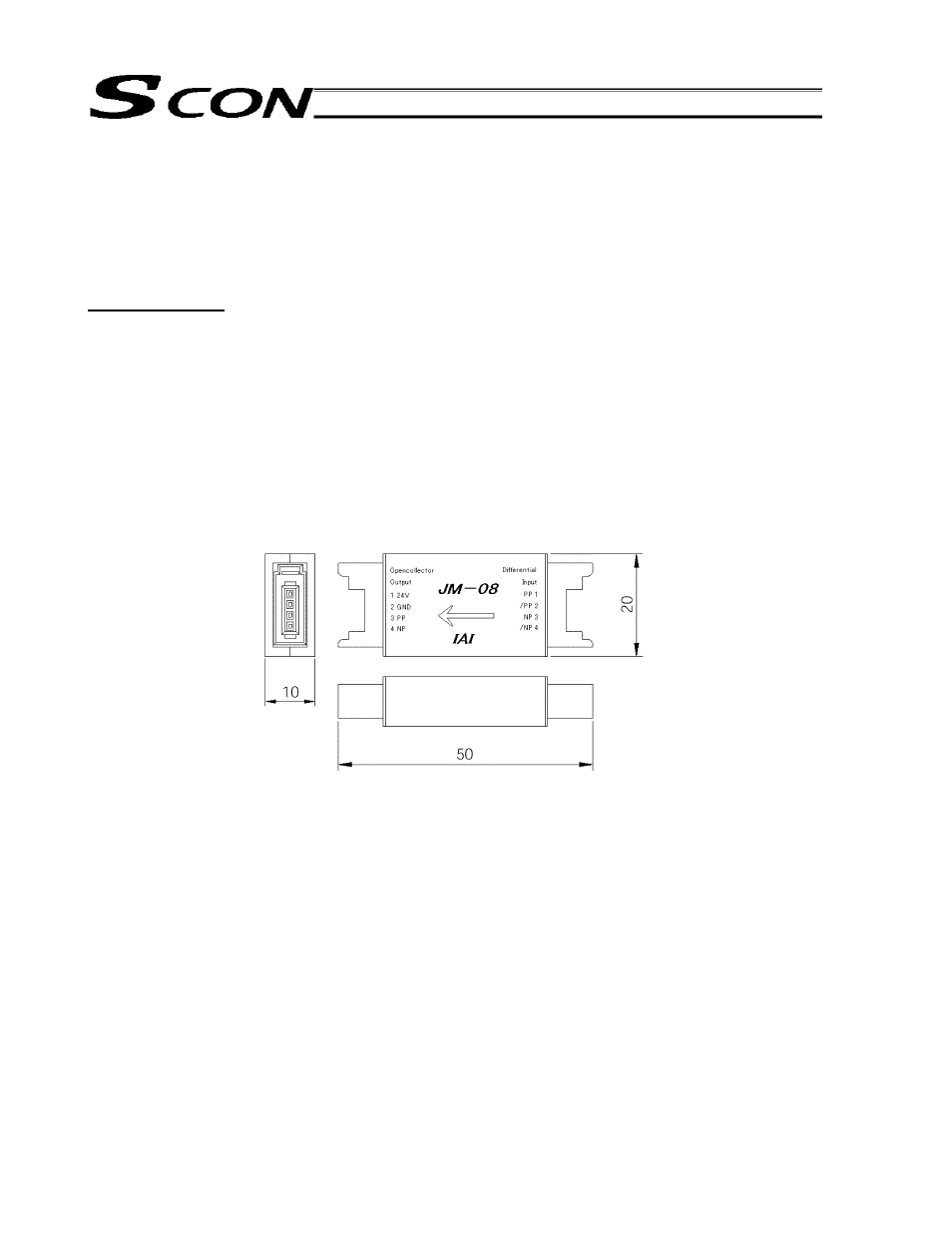

External dimensions
