115

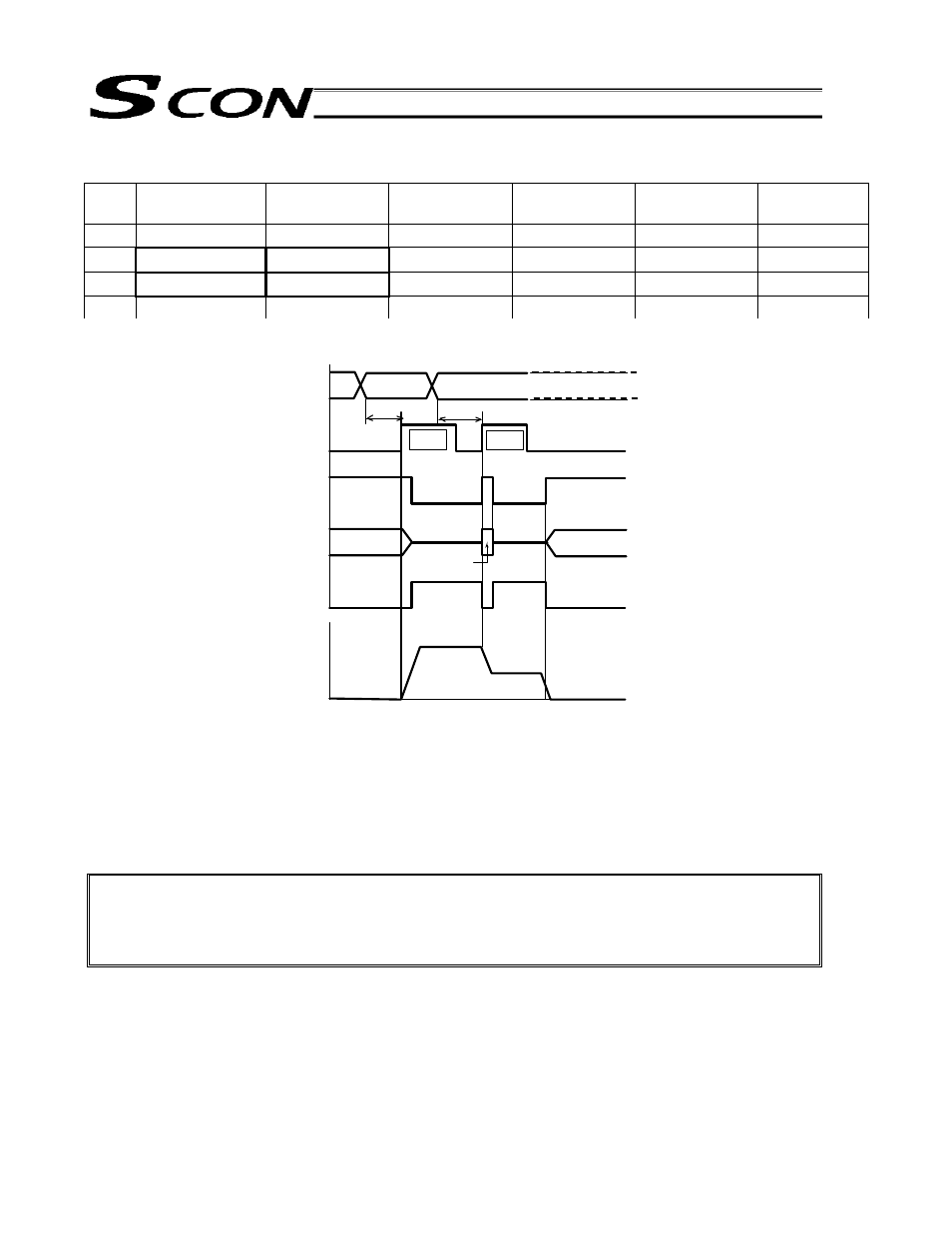

Position table (Field(s) within thick line must be entered.)
No.
Position
[mm]
Speed
[mm/s]
Acceleration
[G]
Deceleration
[G]
Push
[%]
Positioning
band [mm]
0 * * * * * *
1 150.00 200.00 0.30 0.30 0 10.00
2 200.00 100.00 0.30 0.30 0 0.10
:
T1: 6 msec or more; time after selecting/entering a command position until the start input turns ON
(The scan time of the host controller must be considered.)
Caution: When the start signal turns ON, the position complete output will turn OFF and the moving
output will turn ON.
Always turn OFF the start signal after confirming that the start signal is currently ON and the
position complete output has turned OFF.
Command position
Start
Position complete
Completed position
Moving
Actuator movement
Speed
Position 1 Position 2
Position 1
T
1
T
1
Position 2
Note Note
