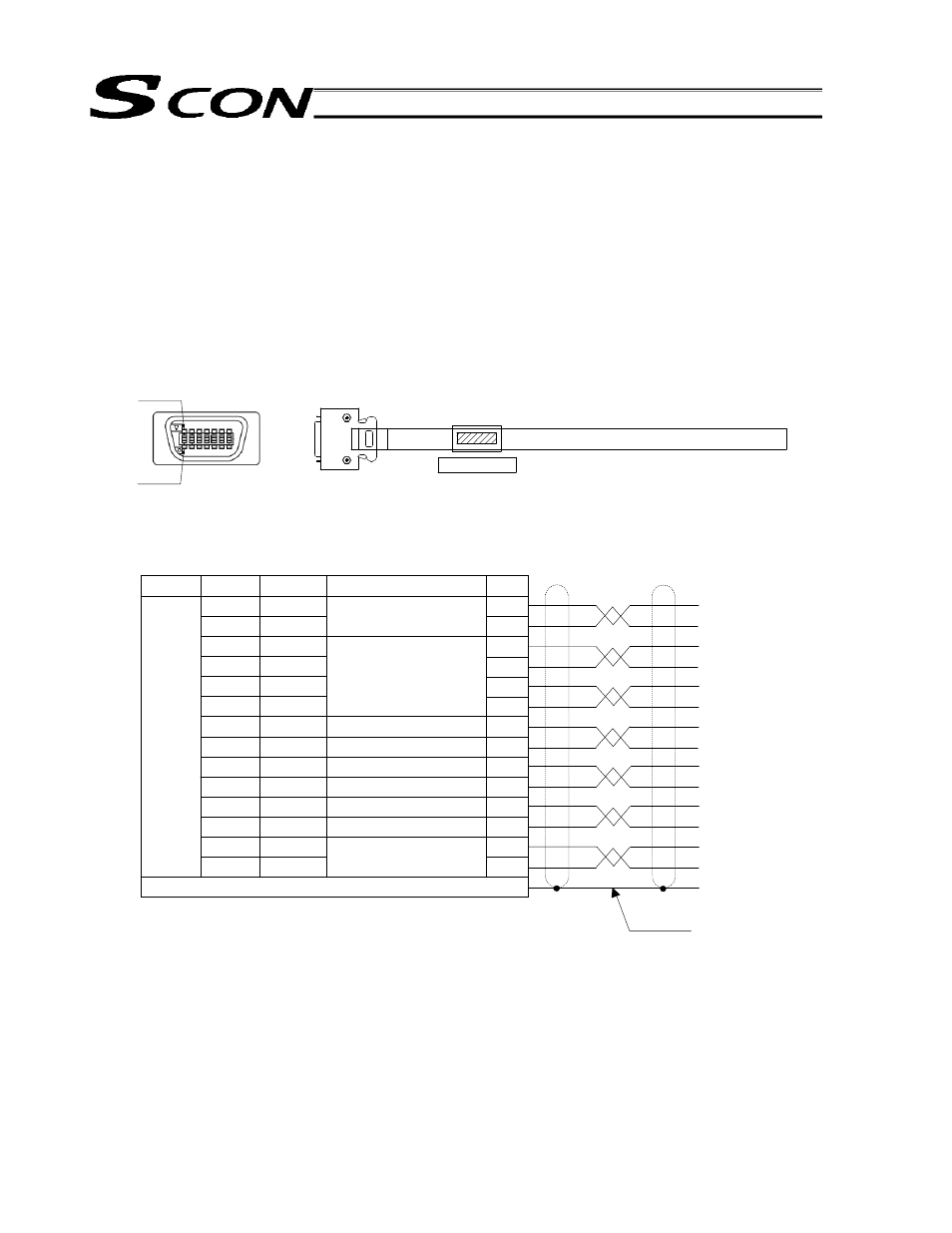

1.3.3 Pulse-train Control Service Cable
Model: CB-SC-PIOS 
* Enter the cable length in . Lengths up to 10 m can be specified. Example) 020 = 2 m
(The maximum cable length is 2 m if the AK-04 is used to convert open-collector pulses.)
Description: Plug + Shell + Shielded cable
Use this cable to connect pulse-train control signals to the host equipment.
The cable does not have a connector on the host equipment end.
The customer should connect the cable to the host equipment by processing the host equipment end of the
cable in accordance with the equipment to be connected.
Wire Color Symbol Signal name No.
Connect the shield to the hood using a clamp.
Black
White/Black
Red
White/Red
Green
White/Green
Yellow
White/Yellow
Brown
White/Brown
Blue
White/Blue
Gray
White/Gray
0.2 sq.,
soldered
Pulse-train input
Line-driver output line for
feedback pulse output
Host equipment
end
Shield
Plug: 10114-3000PE (Sumitomo 3M)
Shell: 10314-52F0-008 (Sumitomo 3M)
Pin 1
Pin 8
CB-SC-PIOS***



PP
/PP
NP
/NP
AFB
/AFB
BFB
/BFB
ZFB
/ZFB
GND
GND
+A
-A
+B
-B
+Z
-Z
1
2
3
4
5
6
7
8
9
10
11
12
13
14
