Configuration Worksheets
Rather than trying to remember the configuration for each preset, use worksheets to record
this information. The worksheet accommodates all of the matrix sizes available with the
MTPX Plus series models documented in this guide. Make copies of the blank worksheet on
page 64
and use one for each preset configuration. Cross out all unused or inactive inputs
and outputs. Use different colors for video and audio.
Worksheet Example 1: System Equipment

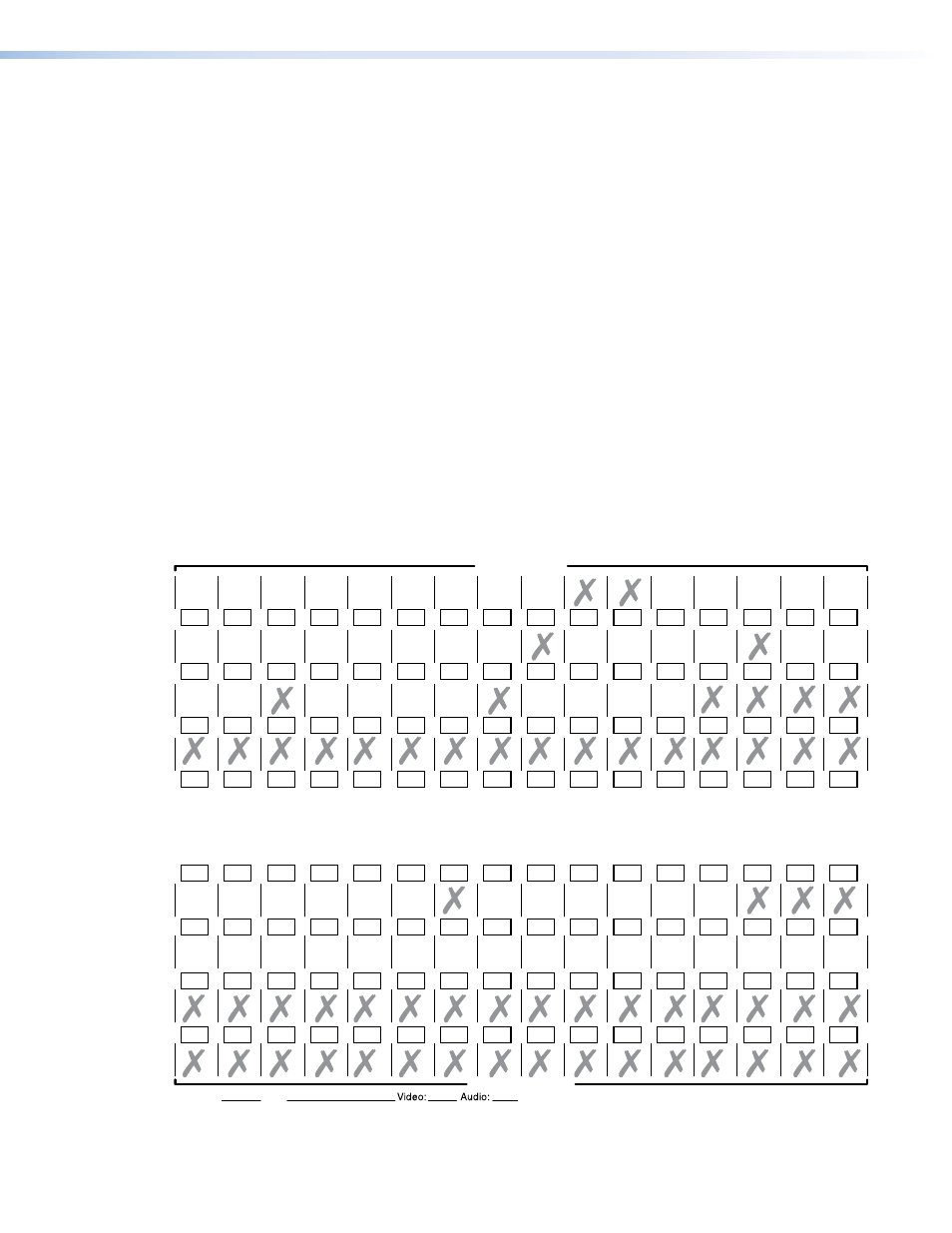

Figure 26 shows a worksheet for a switcher configured as a 48-input by 48-output matrix in
a fictional organization with the system hardware annotated.
Inputs 10 and 11 have no connections in this organization, so they have been crossed out
on the worksheet. Inputs 49 through 64 do not exist on this model, so they are also crossed
out.
Similarly, outputs 7, 14, 15, 16, and 17 through 47 and 33 through 48 have no connection
and are crossed out on the worksheet. Outputs 49 through 64 do not exist on this model, so
they are also crossed out
Inputs include PCs, an audio CD player, cameras, and an Extron VTG 400D. Output devices
include monitors, front and rear projectors, a stereo, and a VCR for recording presentations.
The VTG 400D video test generator connected to input 12 generates a video test pattern to
be sent to one, several, or all output devices for problem isolation or adjustment purposes.
An audio test tape or CD could be used in a similar manner to check the audio components.
Input sources
Output destinations
Preset #
Title:
Fill in the preset number and use colors, or dashes, etc. to make connecting lines. Indicate if the configuration is for Video, Audio, or both.
58
59
60
61
62
63
64
49
50
51
52
53
54
55
56
57
42
43
44
45
46
47
48
33
34
35
36
37
38
39
40
41
26
27
28
29
30
31
32
17
18
19
20
21
22
23
24
25
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
42
43
44
45
46
47
48
33
34
35
36
37
38
39
40
41
26
27
28
29
30
31
32
17
18
19
20
21
22
23
24
25
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
Camera
main
podium
VTG
400
Rack DVD
(DVS)
PC1
RGB 201
Classrm
#1 VCR
DVS 406
Classrm
#2 VCR
DVS 406
Audio
CD
Laptop
RGB 201
Podium
mic
Camera
#2
Floorbox
#1-1
Floorbox
#1-4
Floorbox
#1-3
Floorbox
#1-2
Floorbox
#2-1
Floorbox
#2-4
Floorbox
#2-3
Floorbox
#2-2
Floorbox
#3-1
Floorbox
#3-4
Floorbox
#3-3
Floorbox
#3-2
Floorbox
#5-1
Floorbox
#5-4
Floorbox
#5-3
Floorbox
#5-2
Floorbox
#4-1
Floorbox
#4-4
Floorbox
#4-3
Floorbox
#4-2
Demo rk
#1
USP 405
Demo rk
#3
USP 405
Demo rk
#2
USP 405
Demo rk
#4
USP 405
Demo rk
#5
USP 405
Demo rk
#7
USP 405
Demo rk
#6
USP 405
Demo rk
#8
USP 405
Main
hall
PJ#1
Demo
rack
monitor
Class
room #1
monitor
Lobby
monitor
VCR
(USP 405)
Class
room #2
monitor
Sound
system
#2
Conf.
room
Podium
monitor
Main
hall
PJ#2
Demo
wallbox
#1-1
Demo
wallbox
#1-2
Demo
wallbox
#2-1
Demo
wallbox
#2-2
Demo
wallbox
#3-1
Demo
wallbox
#3-2
Demo
wallbox
#4-1
Demo
wallbox
#4-2
Demo
wallbox
#5-1
Demo
wallbox
#5-2
Demo
wallbox
#6-1
Demo
wallbox
#6-2
Demo
wallbox
#7-1
Demo
wallbox
#7-2
Demo
wallbox
#8-1
Demo
wallbox
#8-2
Demo
rack
switcher
Demo
room
PJ#!
58
59
60
61
62
63
64
49
50
51
52
53
54
55
56
57
Figure 26.
Worksheet Example 1: System Equipment
