Page 38

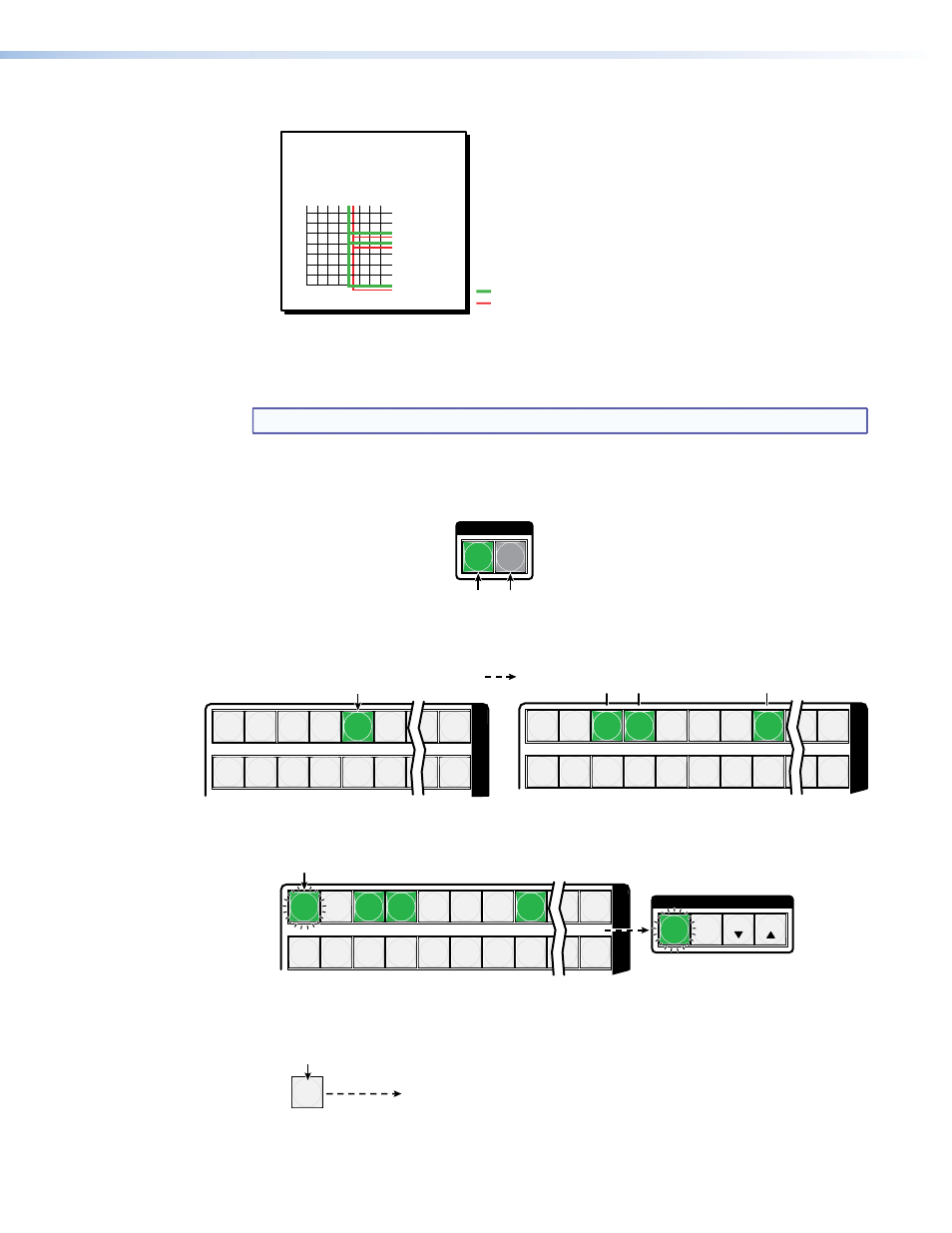

The current configuration is now input 5 tied to output 3, output 4, and output 8.
Input
5 (video/audio) tied
to outputs
3, 4, and 8
Input
Output
3
4
8
5
Video
Audio
Example 2: Adding a video tie to a set of video and audio ties
In the following example, a new tie is added to the current configuration. The steps show
the front panel indications that result from your action.
NOTE: This example assumes that you have performed
.
1.
Clear all selections: Press and release the Esc button. The button flashes once.
2.
Select video only for the tie: Press and release the Video button and the Audio
button as necessary to light Video only.
I / O
VIDEO AUDIO
Press the Video button to toggle on and off.
The button lights
green when selected.
Press the Audio button to toggle on and off.
The button is
unlit or background illuminated when deselected.
3.
Select an input: Press and release the input 5 button.
I
N
P
1 2 3 4 5 6 15 16
17 18 19 20 21 22 31 32
O
U
T
1 2 3 4 5 6 7 8 15 16
17 18 19 20 21 22 23 24 31 32
Press the button.
The button lights
green to indicate that video
outputs can be tied to or untied from this input.
The Output 3, Output 4, and Output 8 buttons light
green to indicate the video ties created in example 1.
4.
Select the output: Press and release the output 1 button.
C O N T R O L
PRESET
ENTER
ESC
VIEW
O
U
T
1 2 3 4 5 6 7 8 15 16
17 18 19 20 21 22 23 24 31 32
Press the button.
The button blinks
green to indicate that only the selected video
input will be tied to this output.
The Enter button blinks
green to indicate the need to
confirm the change.
5.
Confirm the change: Press and release the Enter button.
ENTER
All
input buttons and output buttons
return to unlit or background illumination.
Press the Enter button to confirm
the configuration change.
The Enter button returns to
unlit or background illumination.
MTPX Plus 6400 Series Matrix Switchers • Operation
32
