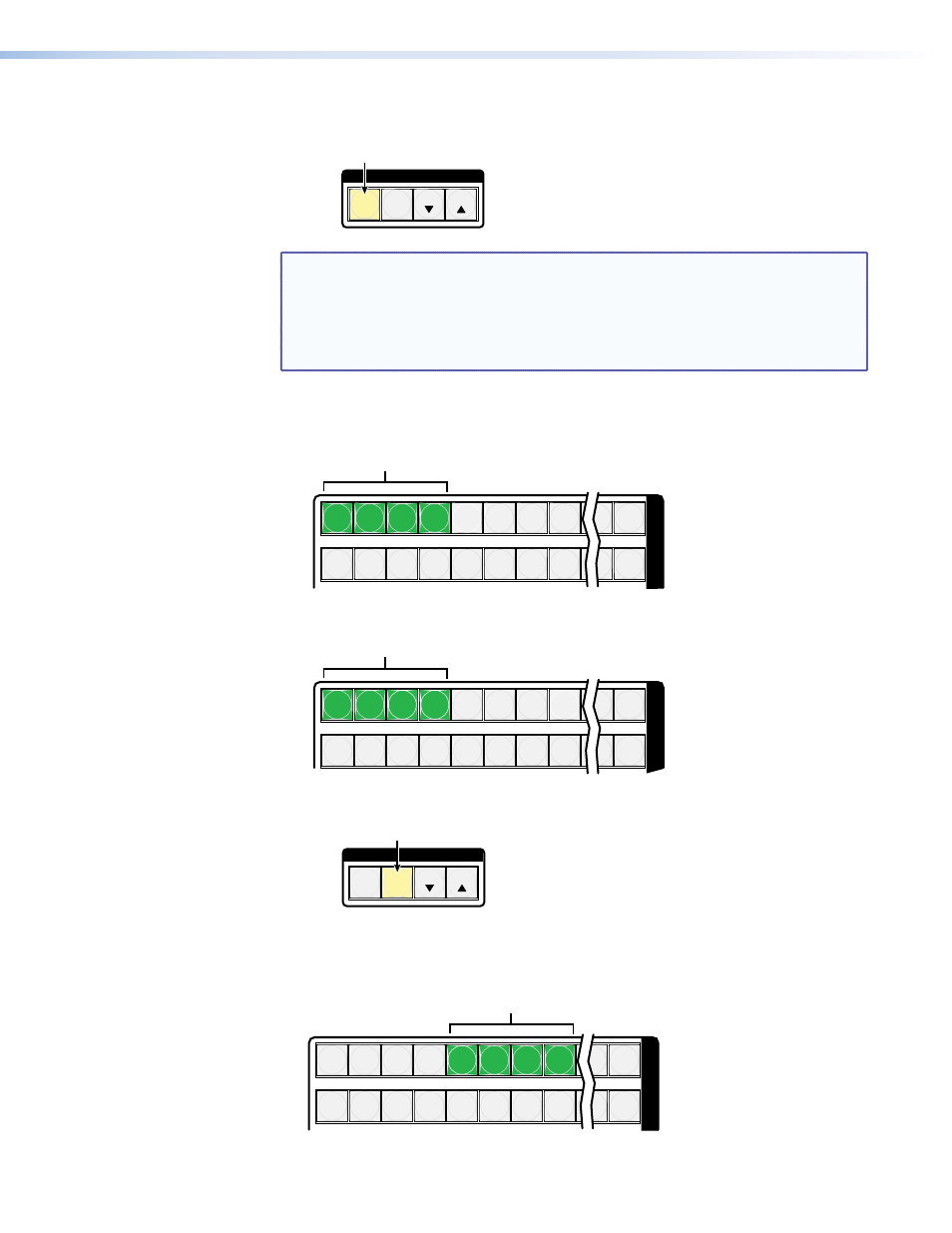

3. Select an I/O group: Press and release the Enter button to select group 1.
C O N T R O L
PRESET ENTER ESC VIEW
1 3 2 4
Press the button.
The button lights amber to indicate the selection.
Group #
NOTE: I/O groups are protected when front panel Lock mode 2 is selected.
You can view the groups in Lock mode 2, but you cannot change them
from the front panel (see “
Setting the Front Panel Locks (Executive
Modes) ”).
If front panel Lock mode 2 is selected and you try to perform step 4, the
actions are ignored and the Enter, Video, and Audio buttons flash.
4. Assign inputs and outputs:
a. One at a time, press and release the input 1 through 4 buttons.
I
N
P
1 2 3 4 5 6 7 8 15 16
17 18 19 20 21 22 23 24 31 32
Press the buttons.
The selected buttons light green.
b. One at a time, press and release the output 1 through 4 buttons.
O
U
T
1 2 3 4 5 6 7 8 15 16
17 18 19 20 21 22 23 24 31 32
Press the buttons.
The selected buttons light green.
5. Select an I/O group: Press and release the Preset button to select group 2.
C O N T R O L
PRESET ENTER ESC VIEW
1 3 2 4
Press the button.
The button lights amber to indicate the selection.
Group #
6. Assign inputs and outputs:
a. One at a time, press and release the input 5 through 8 buttons.
I
N
P
1 2 3 4 5 6 7 8 15 16
17 18 19 20 21 22 23 24 31 32
Press the buttons.
The selected buttons light green.
MTPX Plus 6400 Series Matrix Switchers • Operation 40
