IP Settings/Options Window
The
IP Settings/Options
window (see figure 36), accessible via the
Tools
menu,
provides a location for viewing and, if connected via either serial port or if logged on via
the Ethernet port as an administrator, editing settings unique to the Ethernet interface (see
“
” on page 146 for basic information about IP addresses). None of
the fields on this screen can be edited while you are logged on as a user.

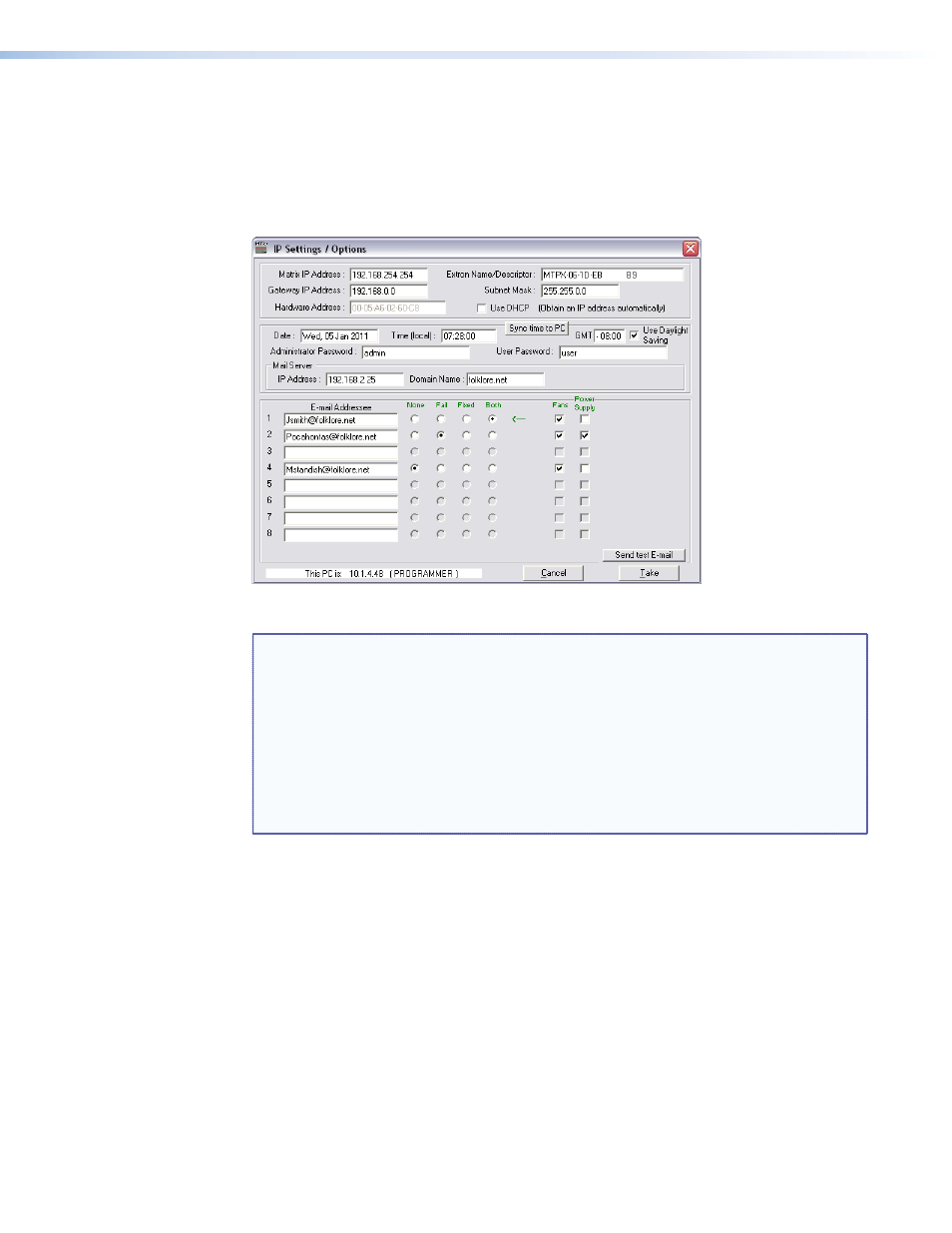

Figure 36.
Control Program IP Setting/Options Window
NOTES: • Editing variables in the IP Settings/Options window while connected via
the Ethernet port can immediately disconnect the user from the switcher.
Extron recommends editing the settings on this screen using the serial port
or USB port and protecting the Ethernet access to this screen by assigning an
administrator’s password to qualified and knowledgeable personnel only.
• When the control program is connected to the switcher via the serial port or
USB port, the
Administrator
Password
and
User
Password
fields are not
masked. If a password has been inadvertently changed to an unknown value,
you can look up and, if desired, change a password in this window without
knowing the current password.
