Page 45

Create I/O groups on the front panel as follows:
1.
Press the Esc button to clear any front panel button indications that may be lit.
2.
To enter I/O Group mode, press and hold the Input 1 and Output 1 buttons until the
input and output buttons light to display the ungrouped inputs and outputs.
3.
Press and release one of the Control buttons to select a group:
z
z
Press the Enter button to select group 1.
C O N T R O L
PRESET
ENTER
ESC
VIEW
1
3
2
4
Group #
z
z
Press the Preset button to select group 2.
z
z
Press the View button to select group 3.
z
z
Press the Esc button to select group 4.
4.
Select the desired inputs and outputs to assign to the group by pressing the input and
output buttons.
5.
Allow the I/O Group mode to time out after approximately 30 seconds.
NOTES:
•
Ties between groups (an input in group 1 tied to an output in group 2)
can be created under serial port, USB port, or Ethernet control.
•
Ties that were created before I/O groups were created remain valid, even
if they include inputs and outputs in different groups.
•
Presets can be created under serial port, USB port, or Ethernet control
that tie inputs and outputs across group boundaries. These presets are
selectable from the front panel
•
An input or output can be assigned to only one group. If you assign an
input or output to a group and that input or output is already assigned
to a different group, the older grouping is discarded in favor of the new
grouping
•
For I/O groups to have any function, at least two groups must be created.

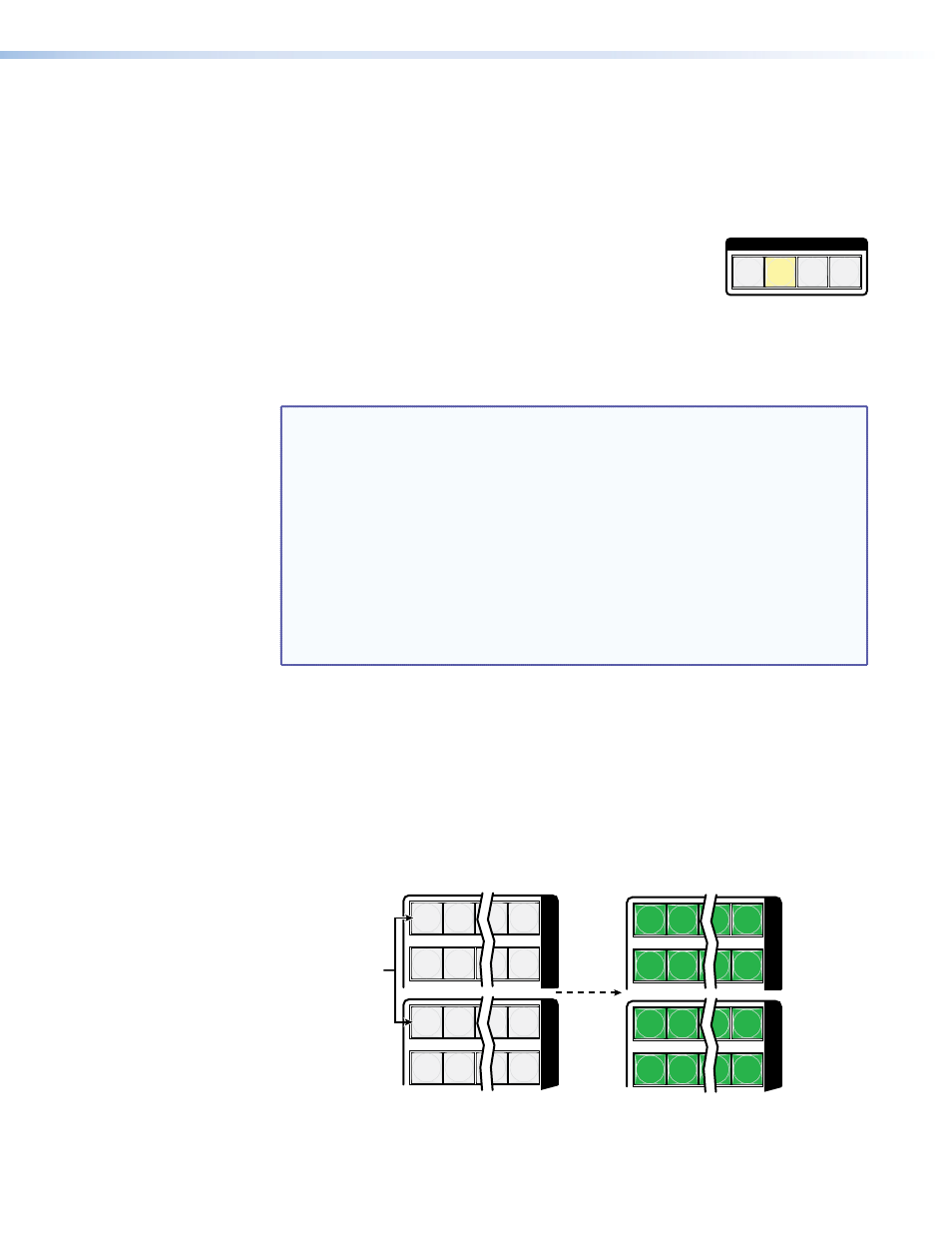

Example 5: Grouping inputs and outputs
In the following example, several switcher inputs and outputs are assigned to groups. The
steps show the front panel indications that result from your action.
1.
Clear all selections: Press and release the Esc button. The button flashes once.
2.
Select I/O Group mode: Press and hold the Input 1 and Output 1 buttons
simultaneously for approximately 2 seconds and then release the buttons.
•
O
U
T
1 2
16
17 18
32
I
N
P
1 2 15 16
17 18 31
15
31
32
O
U
T
1 2
16
17 18
32
I
N
P
1 2 15 16
17 18 31
15
31
32
Press and
hold
the Input 1 button
and Output 1 button.
Release the Input 1 button
and Output 1 button.
Ungrouped input and
output buttons light.
2 seconds
