Page 108
Serial-port-connected firmware upload
10

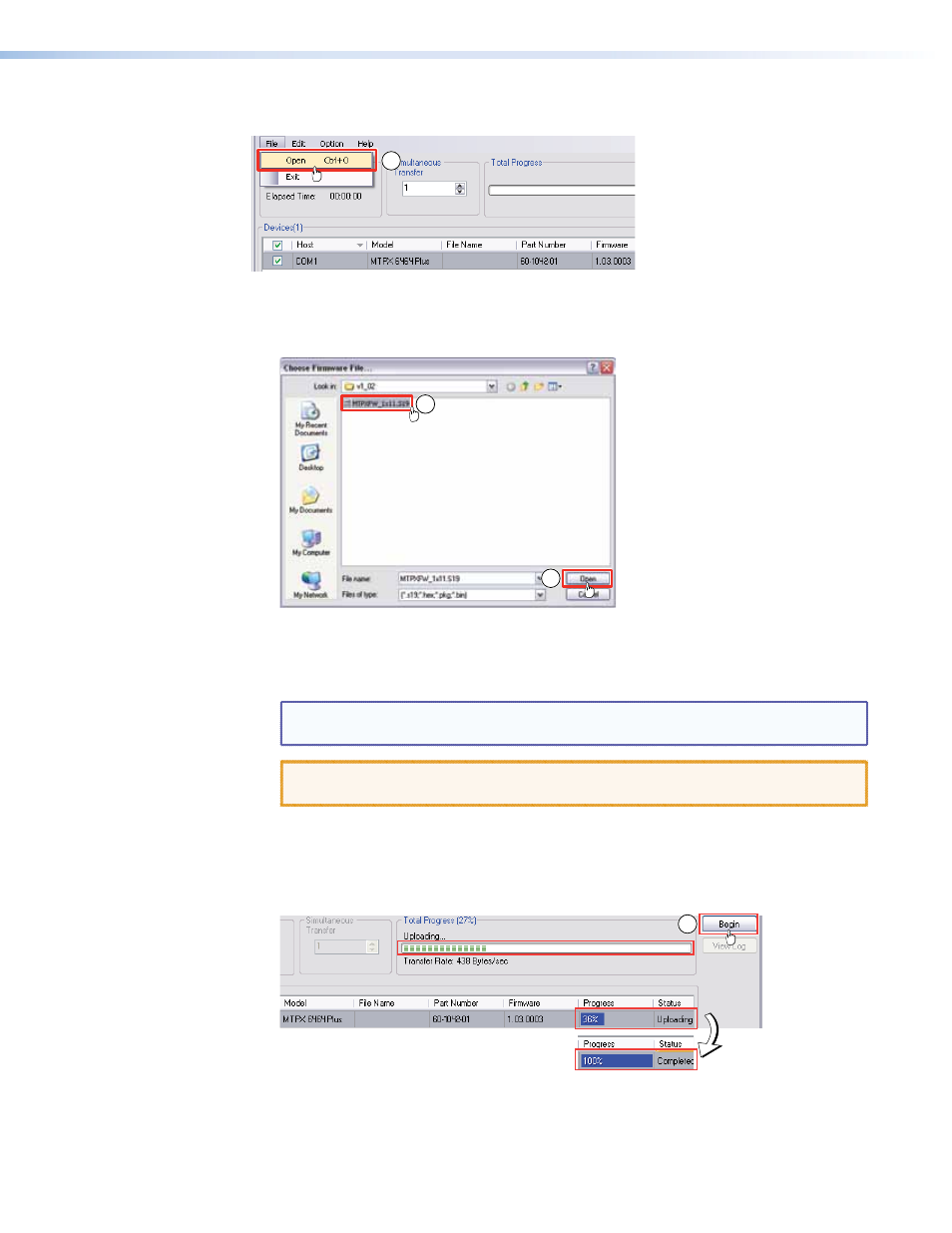

Figure 41.
Extron Firmware Loader Window
10.
Select the MTPX Plus matrix switcher and click
File
>
Open
. The Choose Firmware File
screen appears (see figure 42).
11
11
Figure 42.
Choose Firmware File Window
11.
Navigate to and select the new firmware file. Click
Open
. The Choose Firmware File
window closes.
NOTE: When downloaded from the Extron website, the firmware is placed in a
subfolder of
C:
\
Program Files
\
Extron
\
Firmware
.
CAUTION: The firmware file must have an .s19 extension. Other file types can
cause the switcher to stop functioning.
12.
In the Firmware Loader window, click
Begin
(see figure 43).
The
Total Progress
and
Progress
status bars show the upload progress. The firmware
upload may take several minutes. Once the status bars have progressed from 0% to
100%, and Status is listed as Complete, the firmware loader utility resets the switcher.
12
Figure 43.
Firmware Loader Screen
13.
Click
Exit
to close the Firmware Loader.
MTPX Plus 6400 Series Matrix Switchers • Matrix Software 102
