Performing Soft System Resets (Modes 3, 4, and 5)
Perform a soft reset of the switcher as follows:
1.
Use an Extron Tweeker or other small screwdriver to press and hold the rear panel
Reset button until the rear panel Reset LED and the front panel Preset and View
buttons blink once (events reset), twice (IP settings reset), or three times (absolute reset)
(see figure 25).
2.
Release the Reset button and then immediately press and release the Reset button
again. Nothing happens if the second momentary press does not occur within 1 second.
I / O
VIDEO
AUDIO
I / O
VIDEO
AUDIO
I / O
VIDEO
AUDIO
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
Release, then
immediately
press and release again.
IP Settings
Reset
Absolute Reset
Press and
hold
the Reset button.
Events Reset
(Mode 4)
(Mode 5)
(Mode 3)
Front panel I/O buttons flash
once.
Reset LED flashes several times at
3 seconds.
Release, then
immediately
press and release again.
Reset LED flashes several times at
3 seconds,
and again at
6 seconds.
Press and
hold
the Reset button.
Reset LED flashes several times at
3 seconds,
at
6 seconds, and again at 9 seconds.
Press and
hold
the Reset button.
Front panel I/O buttons flash
twice.
Front panel I/O buttons flash
three times.
Release, then
immediately
press and release again.

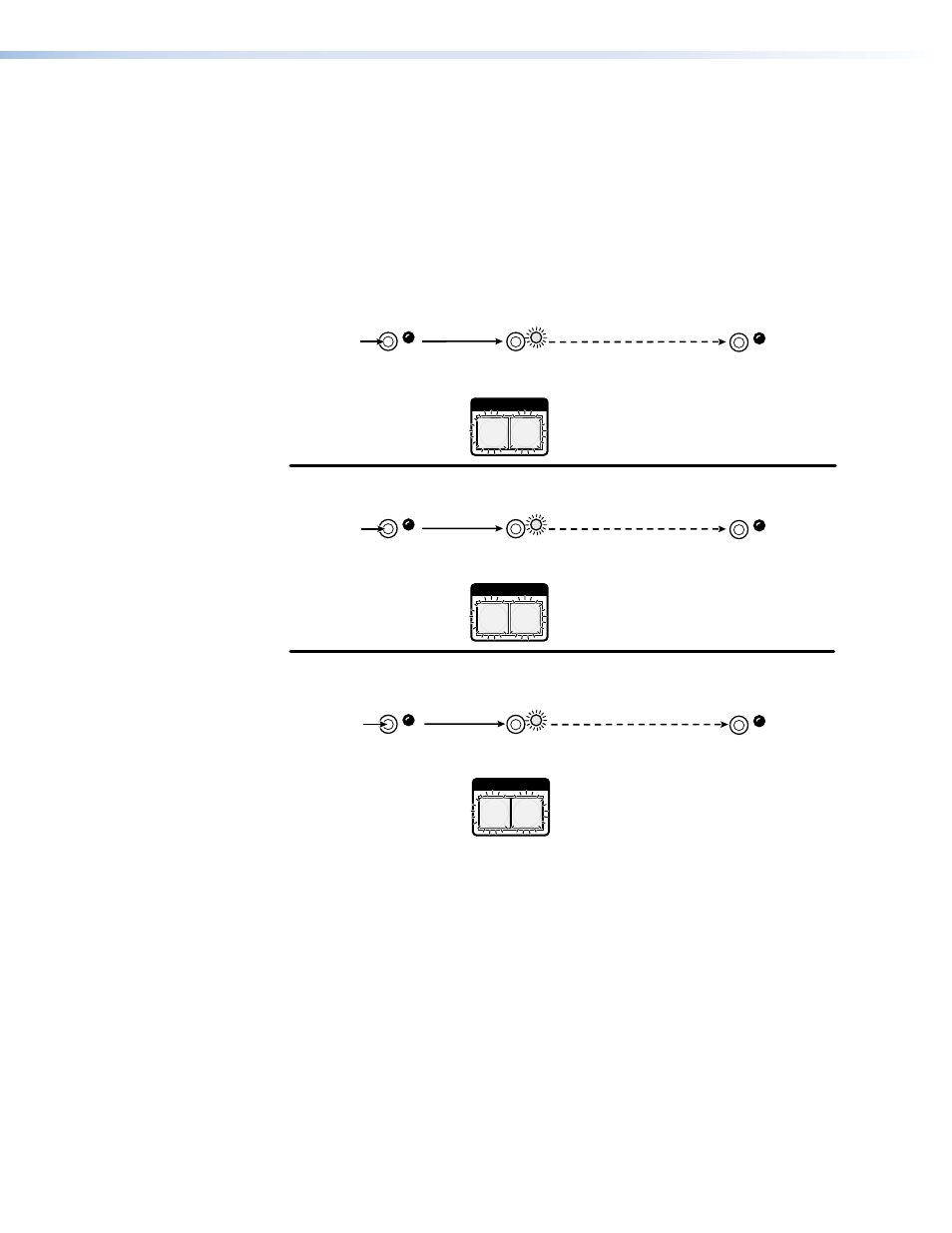

Figure 25.
Soft System Resets
