Configuration Tab
System Settings Page
The MTPX Plus switcher downloads the System Settings page (see figure 60) when you
click the
Configuration tab. The screen consists of fields in which you can view and edit
IP administration and system settings. You can access the Passwords, Email Settings, and
Firmware Upgrade pages by clicking the appropriate link (see “
Ethernet Connection ” on
page 146 for basic information about IP addresses and subnetting).
Select Passwords
Refresh
Select Firmware Upgrade
Select Email Settings

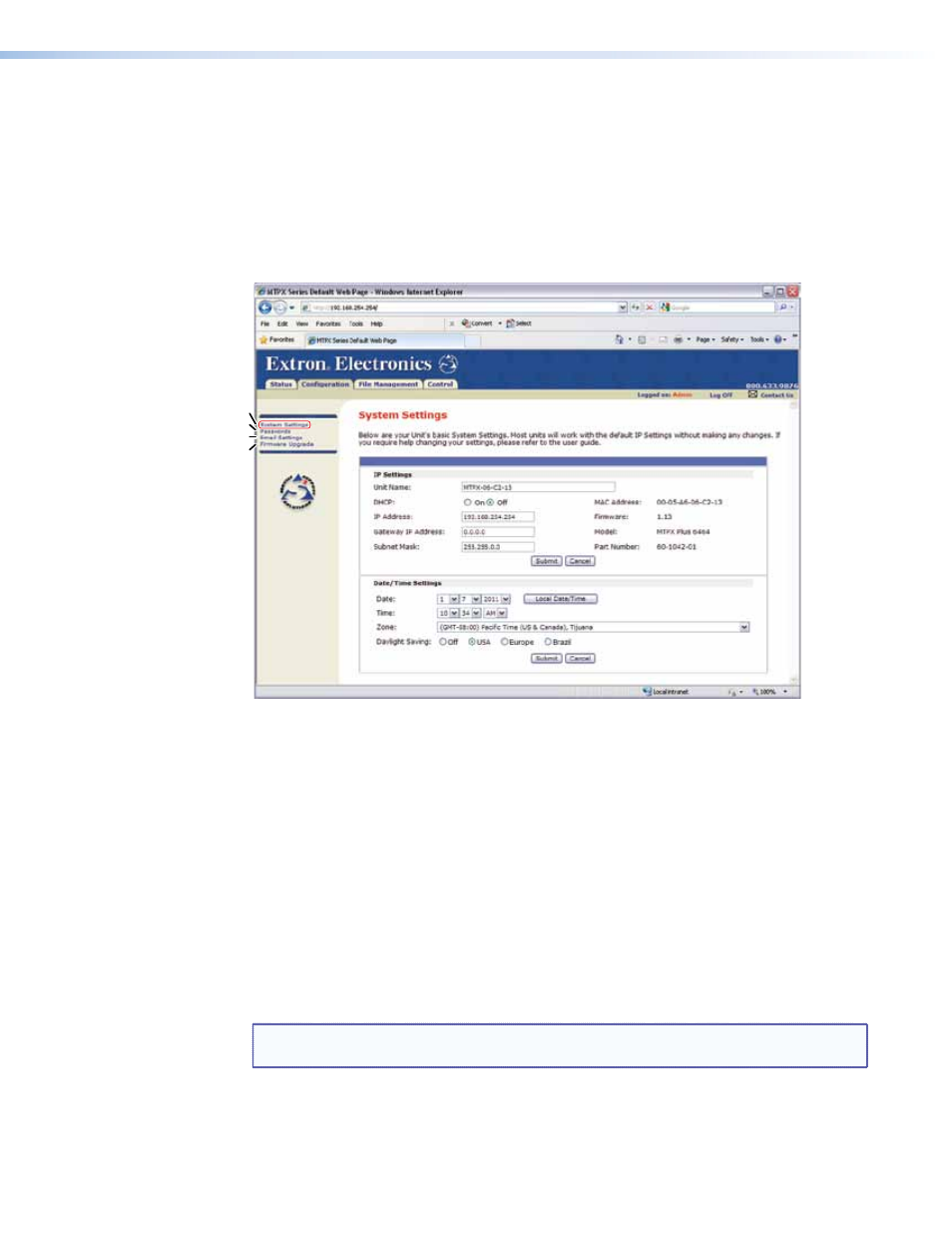

Figure 60. System Settings Page
On password-protected connections, there are two levels of protection: administrator and
user. Administrators have full access to all switching capabilities and editing functions. Users
can create ties, create and recall presets, set audio or RS-232 output mutes, and view all
settings with the exception of passwords.
IP Settings fields
The IP Settings fields provide a location for viewing and editing settings unique to the
Ethernet interface. After editing any of the settings in this field, click the Submit button at
the bottom of the field.
Unit Name field
The Unit Name field contains the name used as the “from” information when the switcher
emails notification of its failed or repaired status. This name field can be changed to any
valid name, up to 24 alphanumeric characters.
NOTE: The following characters are invalid or not recommended in the matrix name:
+ ~ , @ = ‘ [ ] { } < > ’ “ ; : | \ and ?.
MTPX Plus 6400 Series Matrix Switchers • HTML Operation 120
