EDID settings
— Displays the Extended Display Identification Data (EDID) Configuration
window (see figure 48), which allows you to set each input to a specific EDID value and
to save the output resolution to the user-configurable EDID slots.

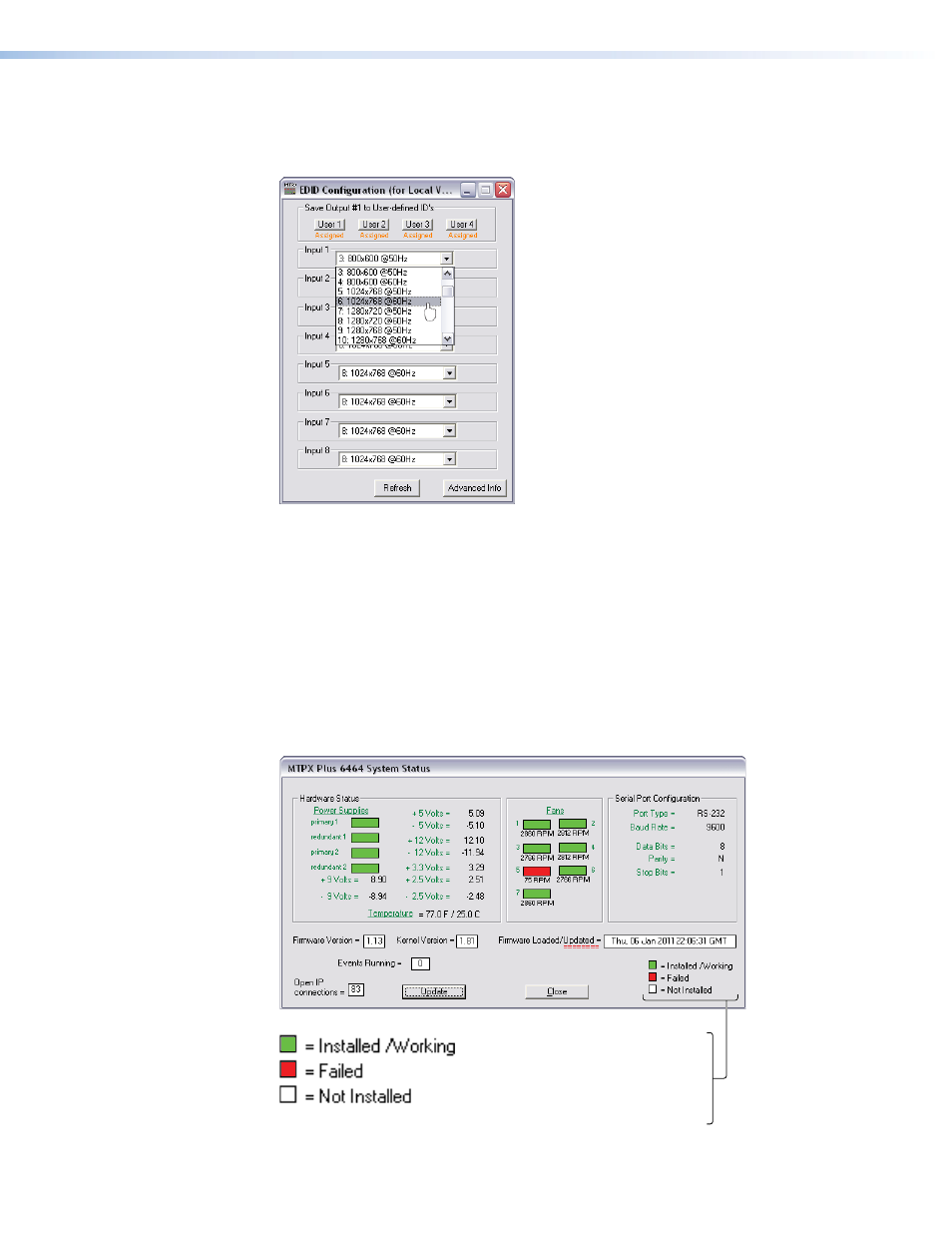

Figure 48.
EDID Configuration Window
Update Firmware
—
Allows you to replace the firmware that is coded on the control
board of the switcher without taking the switcher out of service (see “
IP Options
— Allows you to set IP options (see “
HTML file manager
— Displays a list of HTML files installed on the switcher and allows
you to upload custom files from a PC connected to the switcher (see “
Hardware status
— Provides an overall view of the status of the matrix switcher,
including the power supply voltages, the internal temperature, the Remote RS232/
RS422 port configuration, and the installed and updated firmware status (see figure 49).
Fan is operating properly.
Fan has failed.
The MTPX Plus fans will
never display this status.
Figure 49.
Status Window
MTPX Plus 6400 Series Matrix Switchers • Matrix Software 107
