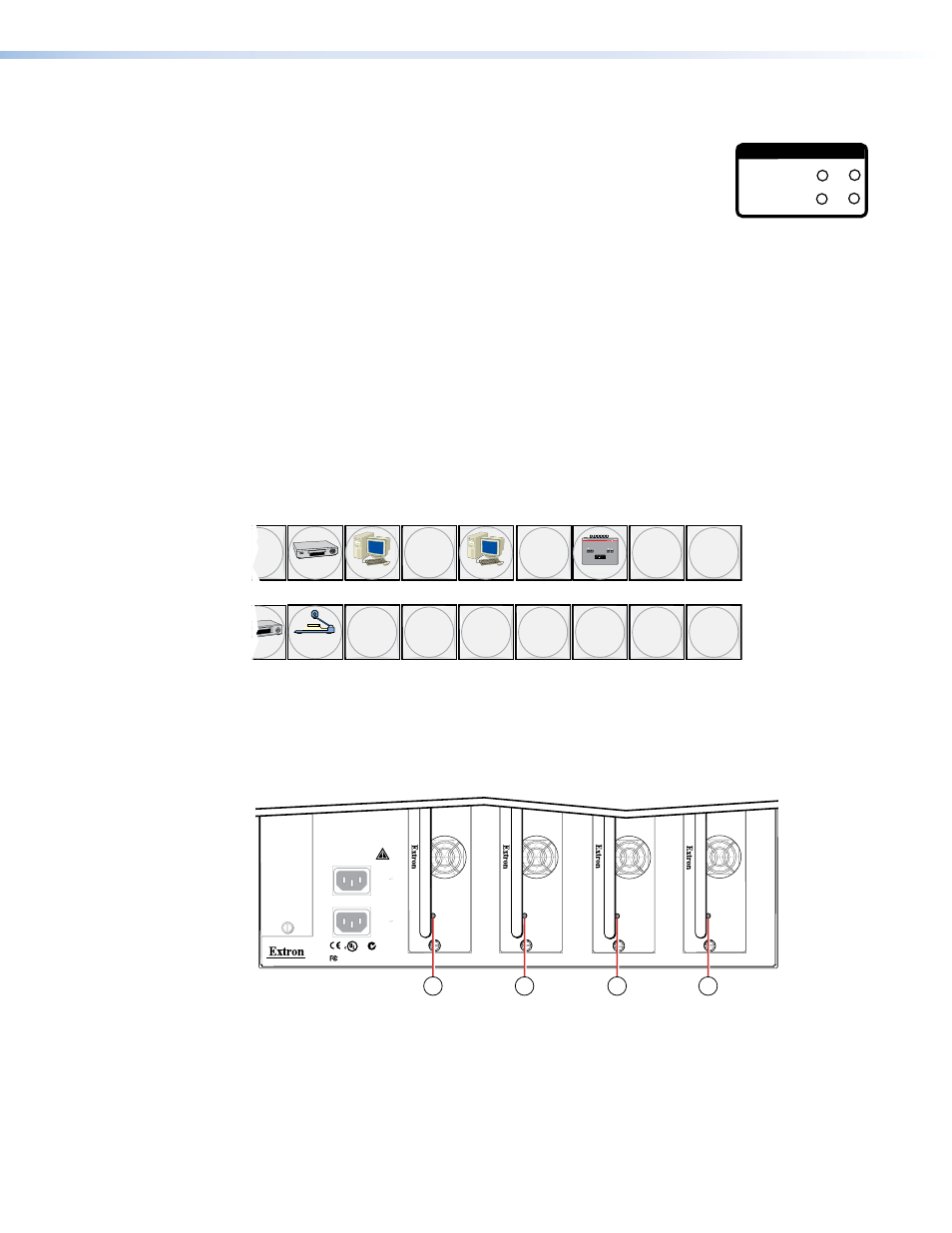

Power Indicators
i
Primary and Redundant Power Supply LEDs —
PRIMARY 1 2
REDUNDANT 1 2
POWER SUPPLY
Green — Indicates that the associated power supply is operating
within normal tolerances.
Red — Indicates that the associated power supply is
operating outside the normal tolerances or has failed (see the
“
“ section to replace the power supply).
Unlit — No power supply is installed.
Button Labels
The numbered translucent covers on the input and output buttons can be removed and
replaced to insert labels behind them.
Input and output labels can be created easily with the Extron Button Label Generator
software, which ships with every Extron matrix switcher. Each input and output can be
labeled with names, alphanumeric characters, or color bitmaps for easy and intuitive input
and output selection (see figure 14) (see “
Button Label Generator Program
“Matrix Software” section for details on using the labeling software, see “
“ in the “Maintenance and Modifications” section for blank labels
and a procedure for removing and replacing the translucent covers).
DVD
VCR
Computer
Computer
Document
Camera
VTG 200
8
11
13
27
26
28 29 30 31 32
15 16
Figure 14.
Sample Button Labels and Icons
Rear Panel Power Indicators
The two power supply modules (primary power supply and redundant power supply,
see figure 15) each have a 2-color LED.
ANAHEIM, CA
100-240V
50/60Hz
6.4A MAX.
100-240V
50/60Hz
1.2A MAX.
REDUNDANT
PRIMARY
LISTED
1T23
US
®
N15779
PRIMA
RY
POWER SUPPL
Y 1
PRIMA
RY
POWER SUPPL
Y 2
REDUNDANT POWER SUPPL
Y 1
REDUNDANT POWER SUPPL
Y 2
1
1
1
1
Figure 15.
Rear Panel Power Supply Indicators
a
Primary and Redundant Power Supply LEDs —
Green — Indicates that the associated power supply is operating within normal
tolerances.
Red — Indicates that the associated power supply has failed (see “
“ to replace the power supply).
MTPX Plus 6400 Series Matrix Switchers • Operation
27
