Ties as Crosspoints
— Displays ties as a matrix of inputs and outputs (see figure 51).
z
z
Video and audio ties are indicated as amber check boxes.
z
z
Video-only ties are indicated as green check boxes.
z
z
Audio-only ties are indicate as red check boxes.
z
z
Ties that will take effect when you click the
Take
button are indicated by a + in the
check box.
z
z
Ties that will be broken when you click the
Take
button are indicated by a – in the
check box.

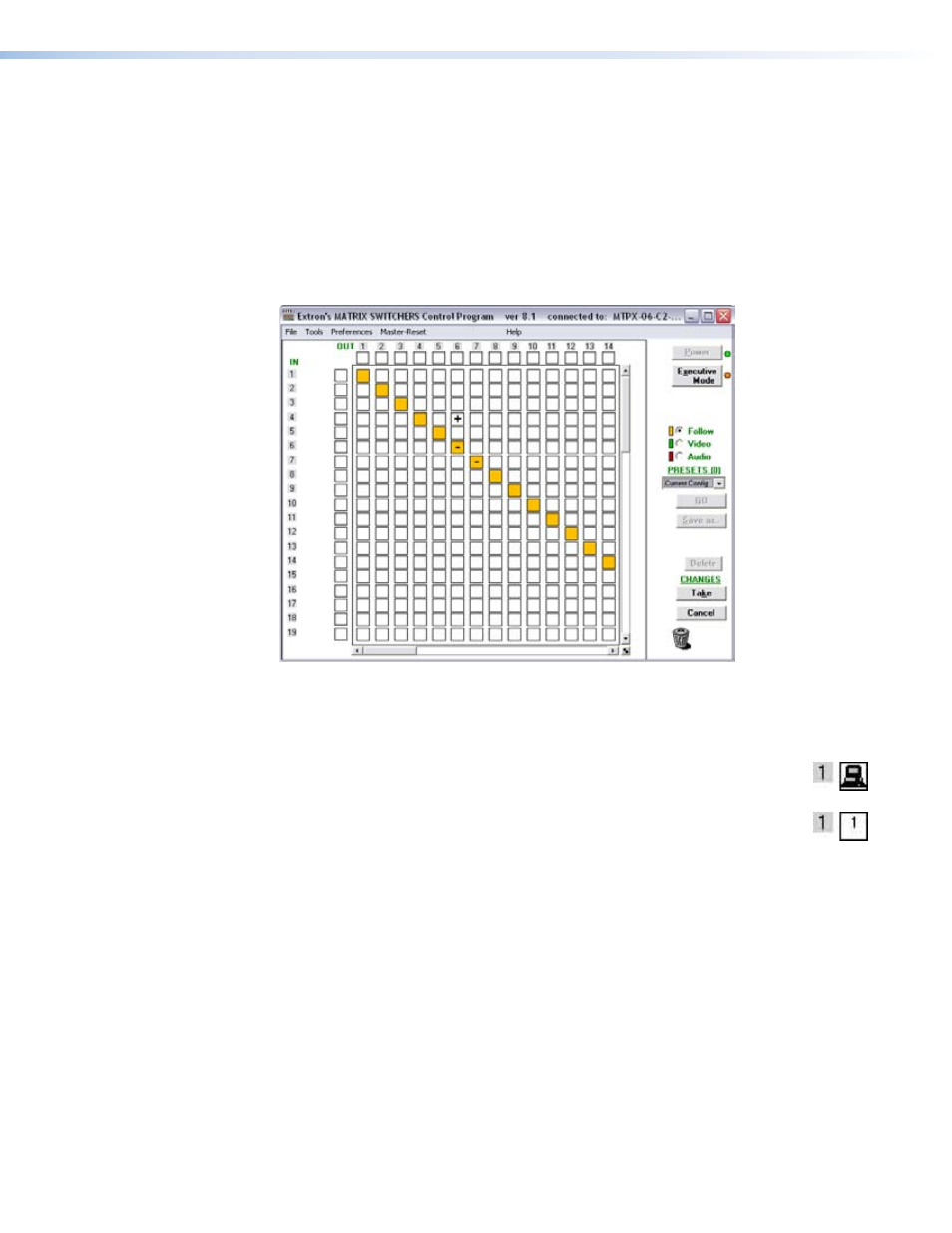

Figure 51.
Ties Shown as Crosspoints
Limit ties to same group
— Allows you to limit the creation of ties using the program
to inputs and outputs that are in the same group (similar to front panel operation).
Icons in I/O Boxes
— Erases any numbers in the I/O boxes in the Control
). You can place icons in the boxes.
Numbers in I/O Boxes
— Erases any icons in the I/O boxes in the Control
Program window and fills each box with the associated input or output
number.
Catch FPC/others changes
— When checked, sets the switcher to report all
configuration and setting changes to the serial port or Ethernet connection that turned
this selection on. These reports allow the Matrix Switchers Control Program to track
the changes that occur in the configuration and settings of the switcher, whether
commanded via the front panel, either serial port, or the Ethernet port.
MTPX Plus 6400 Series Matrix Switchers • Matrix Software 109
