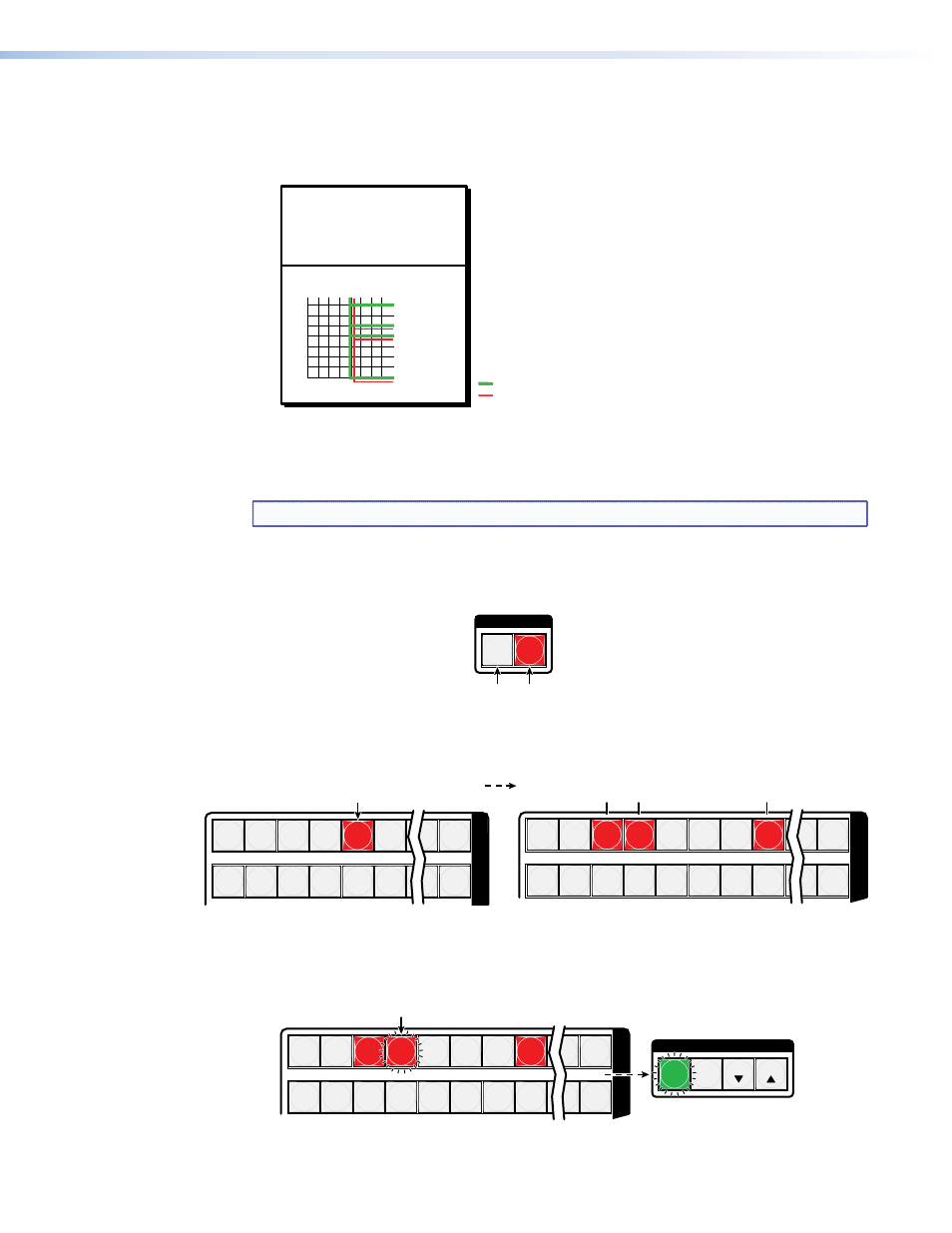

The current configuration is now:
z
z
Video — Input 5 is tied to output 1, output 3, output 4, and output 8.
z
z
Audio — Input 5 is tied to output 3, output 4, and output 8.
Input
5 video tied
to outputs
1, 3, 4, and 8
Input
5 audio tied
to outputs
3, 4, and 8
Input
Output
1
3
4
8
5
Video
Audio
Example 3: Removing an audio tie from a set of video and audio ties
In the following example, an existing tie is removed from the current configuration. The
steps show the front panel indications that result from your action.
NOTE: This example assumes that you have performed
.
1.
Clear all selections: Press and release the Esc button. The button flashes once.
2.
Select audio only for the tie: Press and release the Video button and the Audio
button as necessary to light Audio only.
I / O
VIDEO AUDIO
Press the Video button to toggle on and off.
The button is
unlit or background illuminated
when deselected.
Press the Audio button to toggle on and off.
The button lights
red when selected.
3.
Select an input: Press and release the input 5 button.
I
N
P
1 2 3 4 5 6 15 16
17 18 19 20 21 22 31 32
O
U
T
1 2 3 4 5 6 7 8 15 16
17 18 19 20 21 22 23 24 31 32
The Output 3, Output 4, and Output 8 buttons light
red to indicate the audio ties created in example 1.
Press the button.
The button lights
red to indicate that audio
outputs can be tied to or untied from this input.
The Output 1 button
does not light to indicate the tie
created in example 2 because that tie is
video only.
4.
Select the output: Press and release the output 4 button.
C O N T R O L
PRESET
ENTER
ESC
VIEW
O
U
T
1 2 3 4 5 6 7 8 15 16
17 18 19 20 21 22 23 24 31 32
Press the button.
The button blinks
red to indicate the pending change:
audio input will be untied.
The Enter button blinks
green to indicate the need to
confirm the change.
