22 Remote Gateway 9150 Installation and Administration Guide
Remote Gateway 9150 description Standard 3.1
Call scenario 2: host-controlled—external corporate call

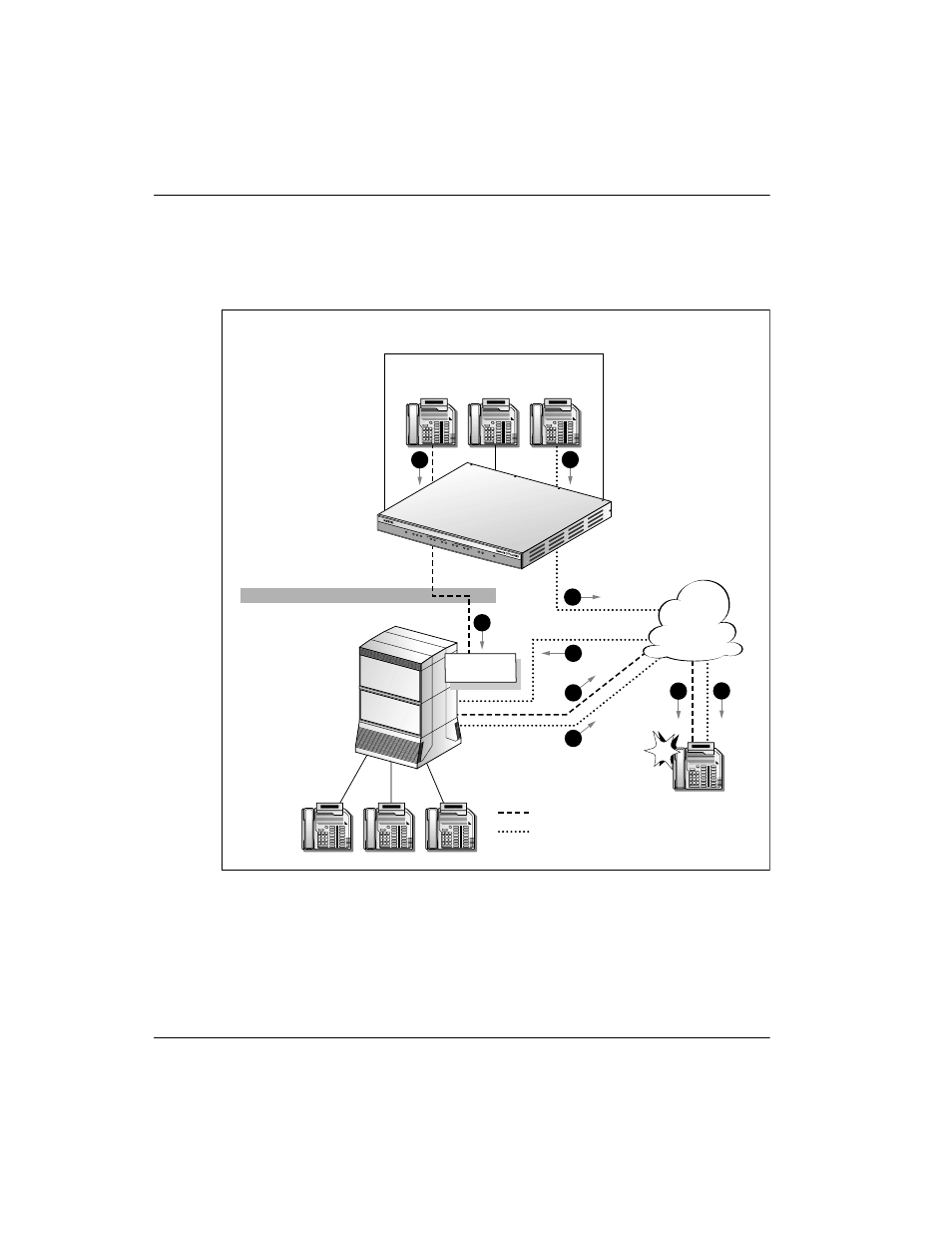

The following diagram shows how a call is routed when making a
host-controlled call to a party outside the organization.
The network used to route the call is transparent to the user, and the dialing
requirement is the same for both. Calls work the same way in reverse, through
the host PBX site to the Remote Gateway 9150 site.
