Scenario 2
All calls alert the reception telephone local key (L2000). Unanswered calls
transfer to the receptionists personal voice mailbox (2000).
!
Local BRI calls ring the local keys of a reception telephone (4000).
!
These calls, when unanswered, call forward-no answer according to the
Remote Gateway 9150 unit’s 9150 Port Configuration property sheet
settings to a PBX Phantom TN (5000).
!
This PBX Phantom TN forwards after one ring to the voice mail target DN
(8000).
!
The voice mail system has a mailbox for DN 2000. You must add an
“Alias” (Octel Terminology) or “Associated/Extension DN” (Meridian
Terminology) of 5000 to the DN mailbox for 2000.
!
Once this call arrives in voice mail, the “Alias” or “Associated/Extension
DN” sends this PSTN call to the personal voice mailbox for DN 2000.

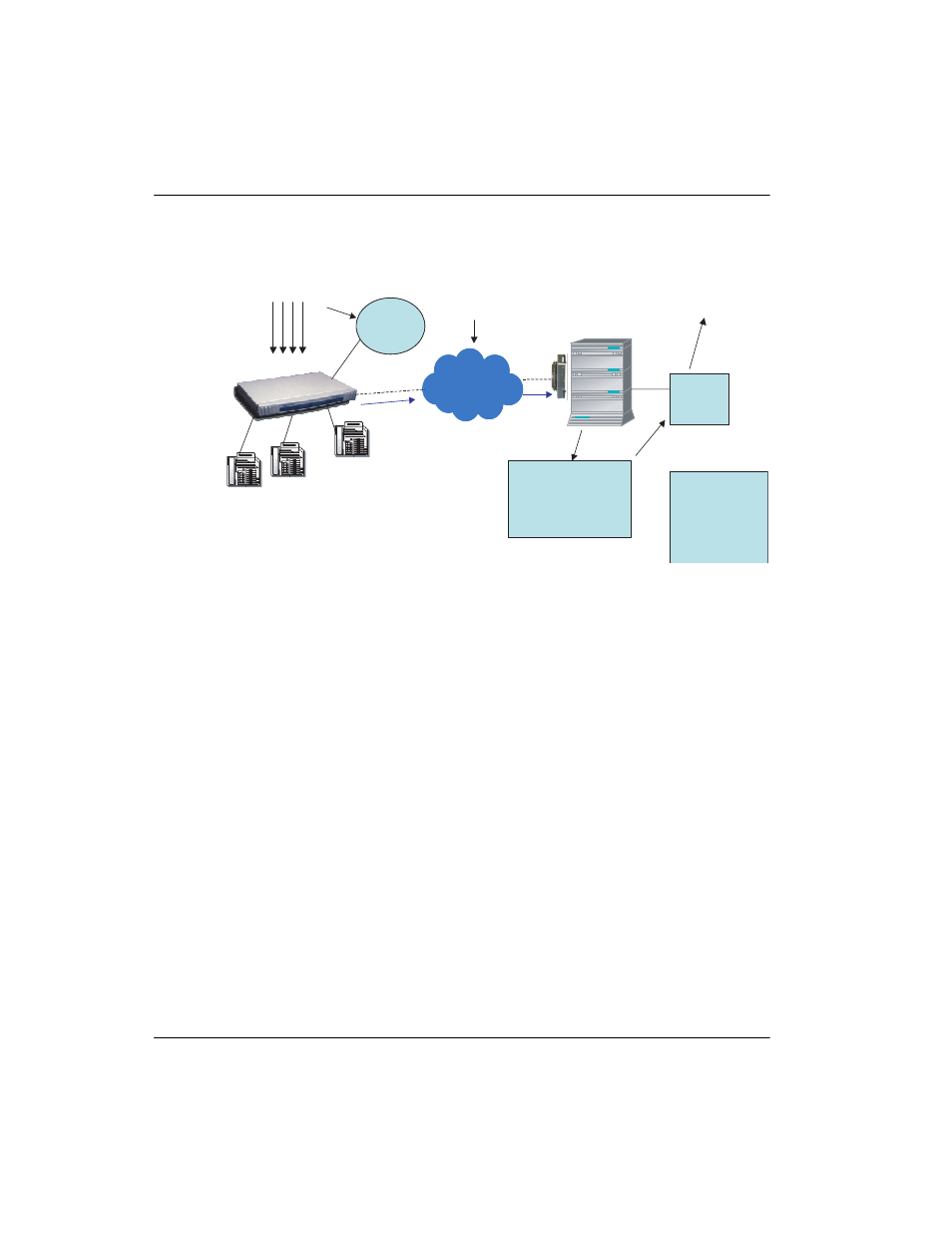

host PBX
