362 Remote Gateway 9150 Installation and Administration Guide
Troubleshooting Standard 3.1
Using Configuration Manager PING
PING, or Packet InterNet Groper, is a protocol and program to test whether a
device is accessible on a network. This section explains how to use the PING
option provided in Configuration Manager to verify network connectivity. Use
this procedure as a troubleshooting tool to determine if you can reach the RLC,
another remote unit, or any other device on the network.
Getting there 9150
→
Configuration Manager
Performing a Configuration Manager PING
To perform a Configuration Manager PING:
1 From the Menu Bar, choose Tests
→
Ping.

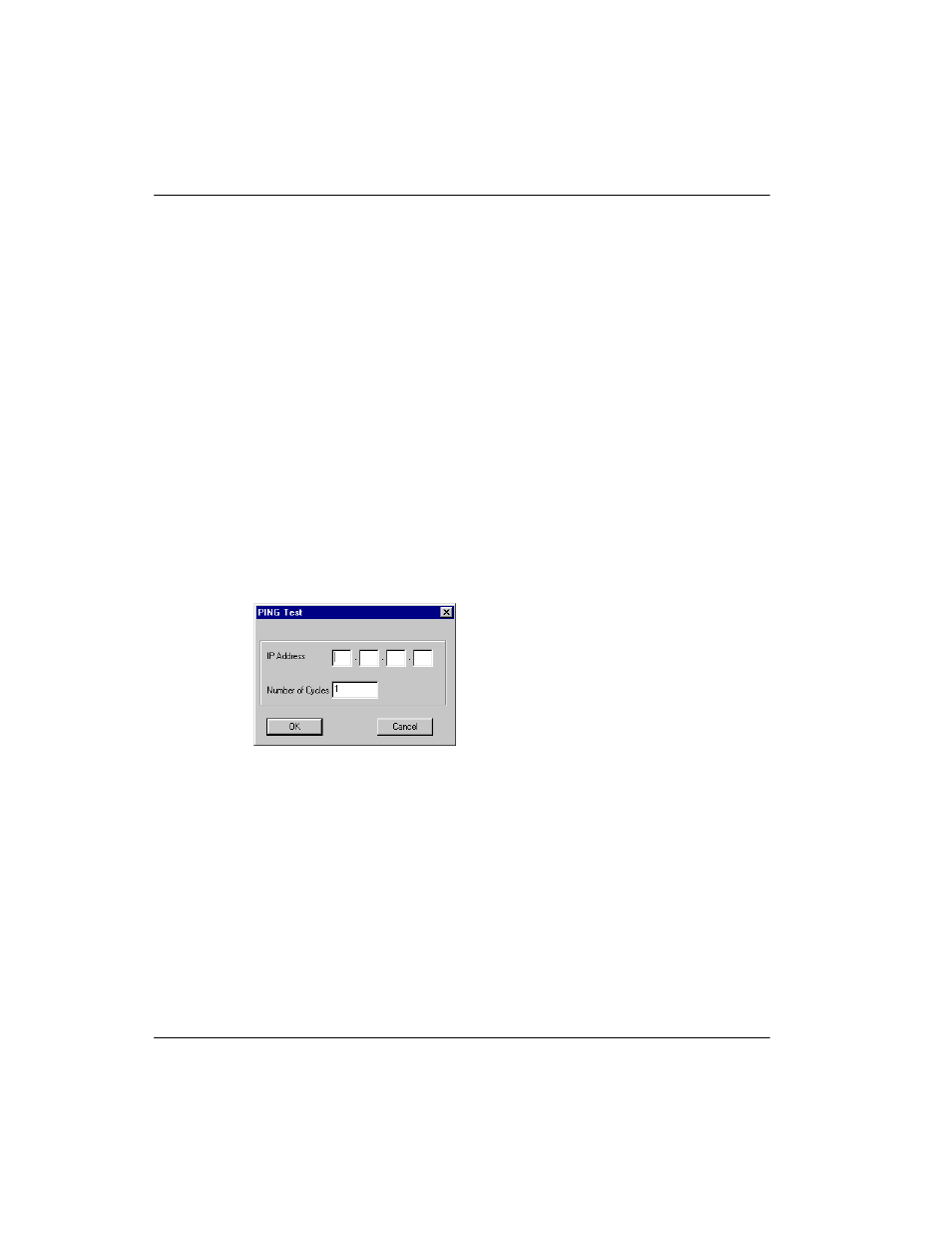

Result: The PING Test dialog box displays, similar to the following:
2 Enter the IP Address of the unit you want to PING in the IP Address field.
3 Enter the number of times you want to PING the unit in the Number of
Cycles field (1 to 100).
