284 Remote Gateway 9150 Installation and Administration Guide
Administration Standard 3.1
3 Click on the Browse button and navigate to the folder where you want to
keep the configuration text file.
4 Enter a name for the file in the File name field.
Note: This configuration file becomes your backup file, so ensure the file
name is meaningful. The file name’s extension must be .TXT.
5 Click on the Download button.
Result: The Download configuration dialog box closes, and the following
message displays in the status bar at the bottom of the screen:
Downloading Config From Board

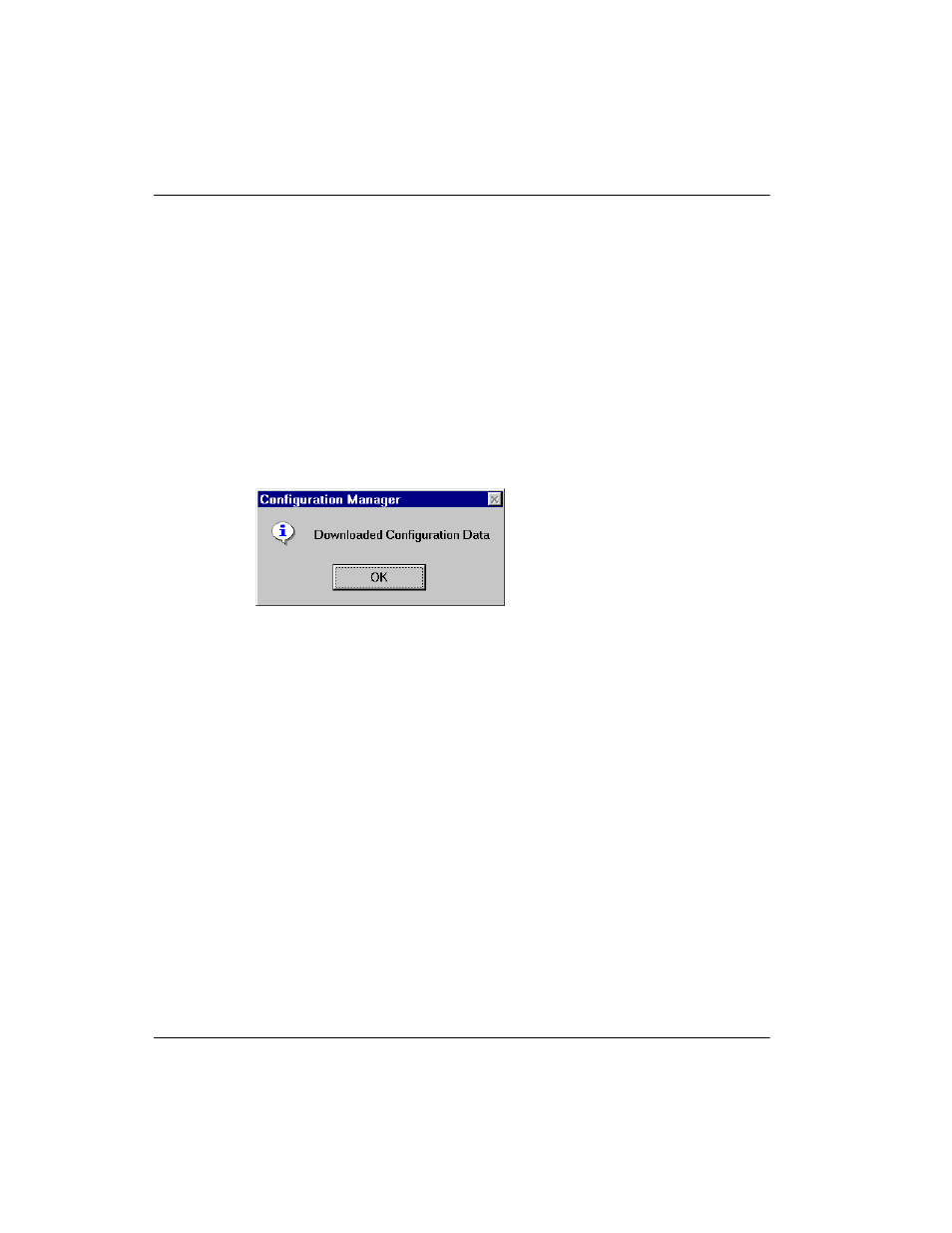

When the download is complete, the Downloaded Configuration Data
dialog box displays, similar to the following:
6 Click on the OK button.
Note: Flash downloads to remote M39xx telephones can take twice as long
compared to when these telephones are connected directly to a standard Nortel
digital line card (XDLC).
