238

Remote Gateway 9150 Installation and Administration Guide

Configuring the Remote Gateway 9150 unit

Standard 3.1

Trunk Group
B Channels

Click on the Trunk Group B Channels button.

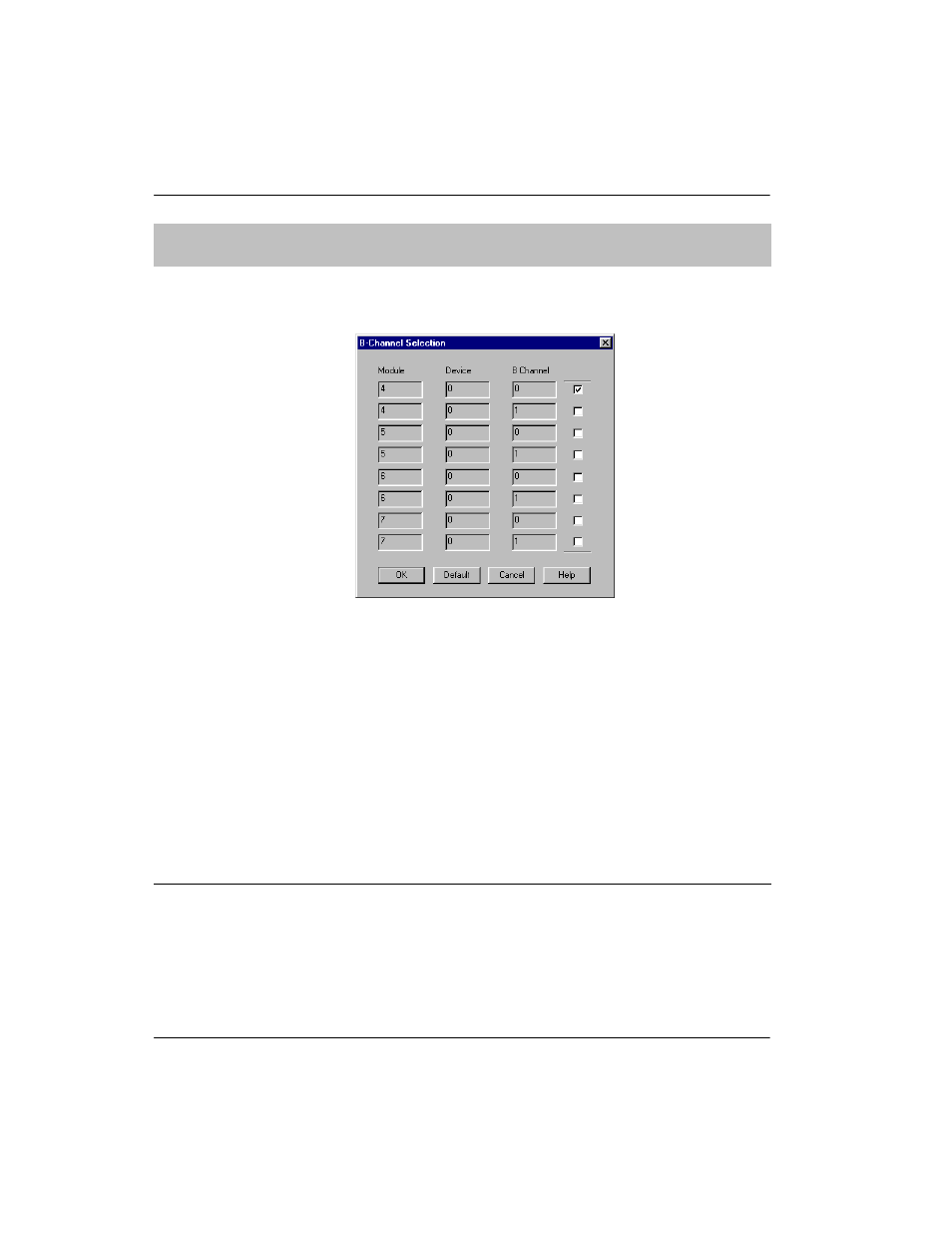

Result: The Trunk Group B-Channel dialog box displays.

Complete the fields as follows:

!

Module: This field displays trunk interface module
numbers.

!

Device: This field displays the internal device number
for each B-channel provided by the module.

!

B Channel: This field displays B-channel numbers.

!

Check boxes: Click on the check box for each B-channel
you want to be part of this trunk group.

Note: A B-channel can be a member of more than one trunk
group.

Click on the OK button.

Field

Description
