Nortel Networks 9150 User Manual
Page 125
Remote Gateway 9150 Installation and Administration Guide
95
January 2005
Installing the Remote Gateway 9150 unit

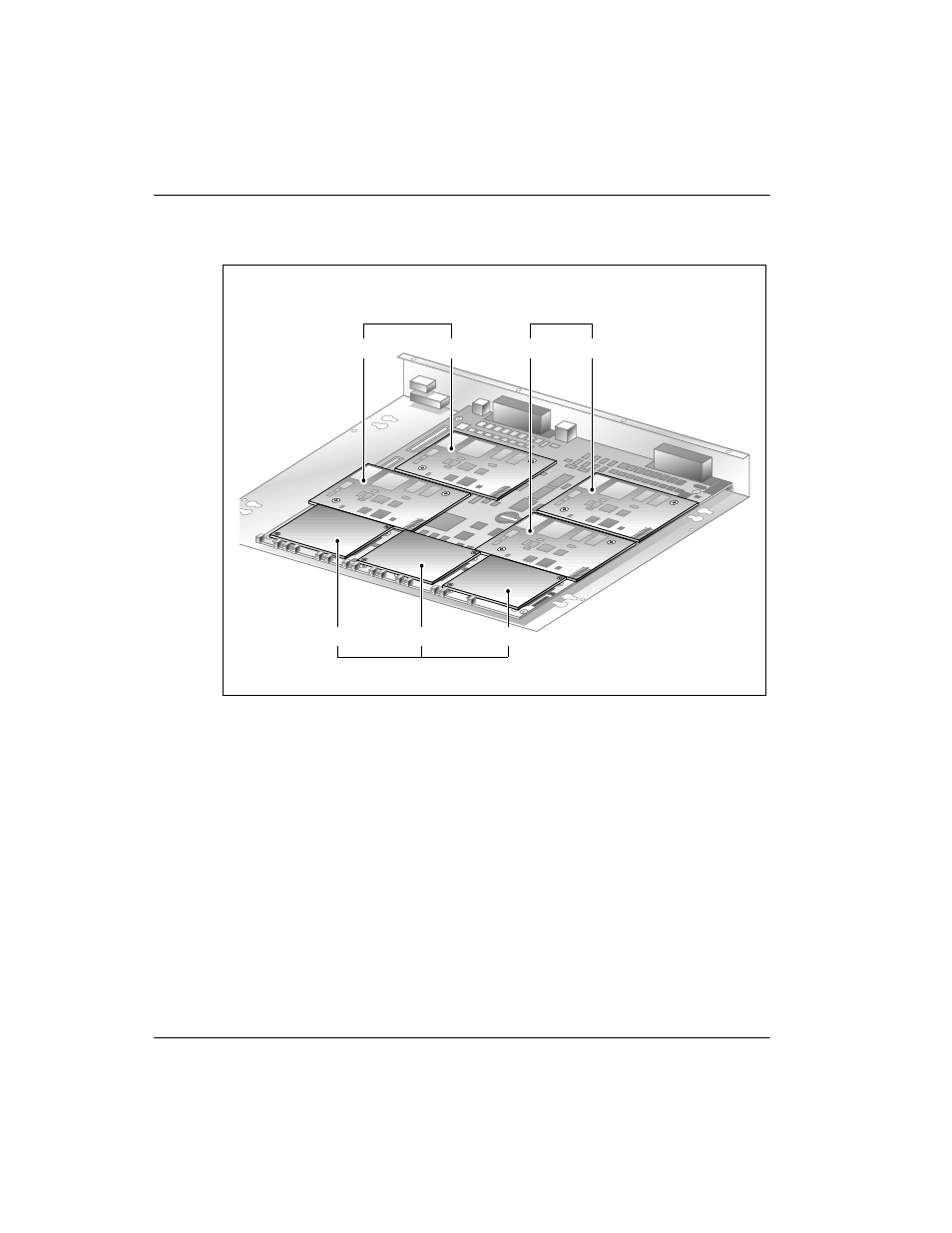

The following diagram shows where you can install the trunk interface and DSP
application modules on the Remote Gateway 9150 unit circuit board:
Nortel recommends that you populate each module position in sequential order.
Install trunk interface modules according to the Telco 1 or Telco 2 connections
used.
Note: The Remote Gateway 9150 unit contains a dongle socket located in the
middle of the circuit board. This dongle is not being used.
G101408
DSP modules
Trunk interface modules
Telco 2
6
7
4
5
Telco 1
3
2
1
