164 Remote Gateway 9150 Installation and Administration Guide
Using Configuration Manager Standard 3.1
Logging on to a unit using the serial port
To log on to a unit using the serial port:
1 From the Menu Bar, choose Connect → Logon Unit → Serial.

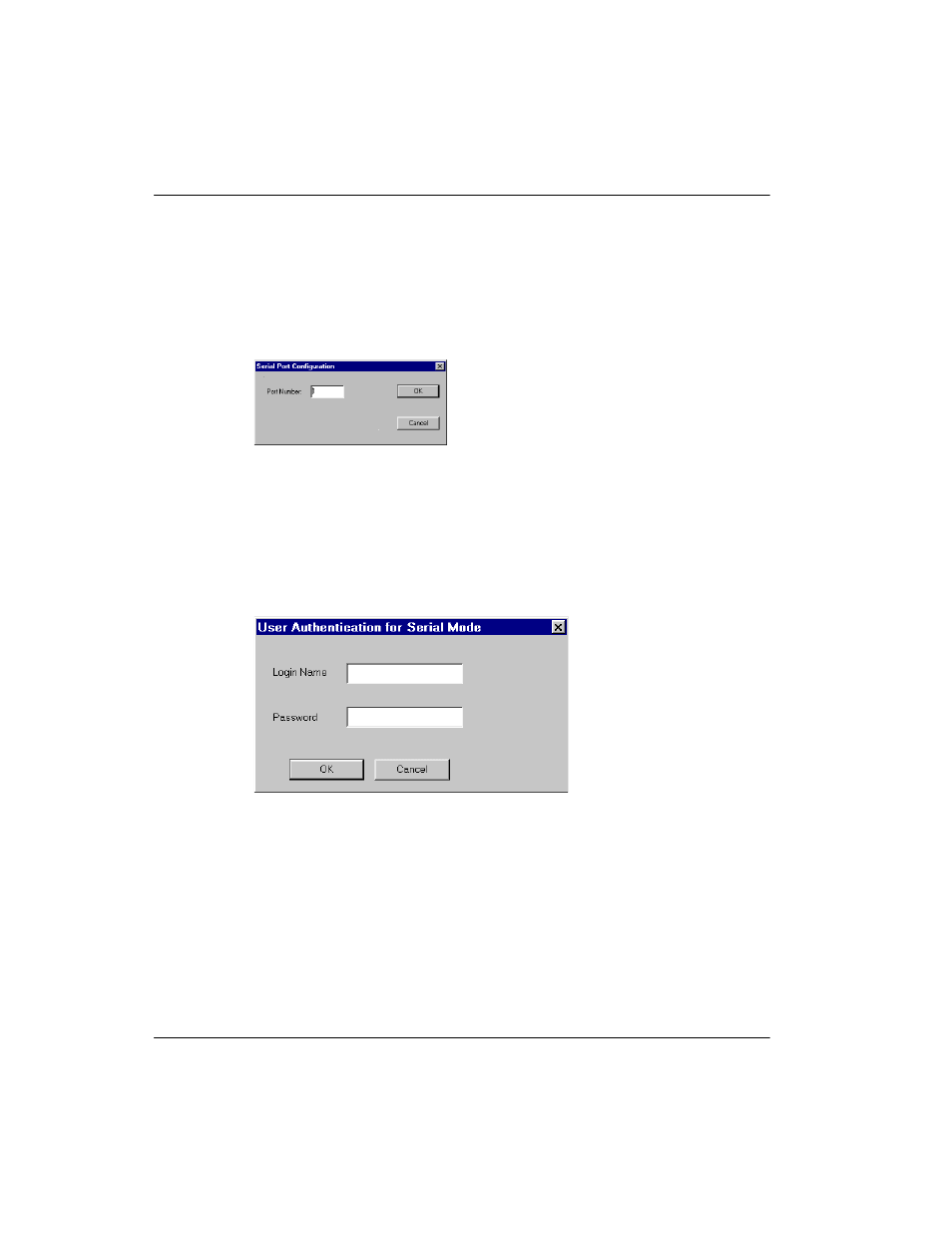

Result: The Serial Port Configuration dialog box displays, similar to the
following:
2 Enter the COM port number the unit is connected to in the Port Number
field.
3 Click on the OK button.
Result: If no one else logged on to the unit before and if your PC is
connected with a serial cable to the Remote Gateway 9150 unit, the User
Authentication for Serial Mode dialog box displays. It is similar to the
following:
4 Enter your logon name in the Login Name field. Refer to “Default logon ID
and password” on page 157 for the default logon ID if you have not yet
customized this setting.
5 Enter your password in the Password field. Refer to “Default logon ID and
password” on page 157 for the default password if you have not yet
customized this setting.
