Remote Gateway 9150 Installation and Administration Guide 239
January 2005 Configuring the Remote Gateway 9150 unit
DSP configuration
This section shows you how to configure DSP resources on your Remote
Gateway 9150 unit. The Remote Gateway 9150 unit must provide the same
number of voice DSP channels as the maximum number of simultaneous calls
your remote services network supports. Each DSP module holds two DSP
devices. Currently, each DSP device holds four DSP channels. To add eight DSP
channels to your Remote Gateway 9100 Series system’s voice processing
capability, add one DSP application module.
Getting there 9150 → Configuration Manager → DSP Configuration

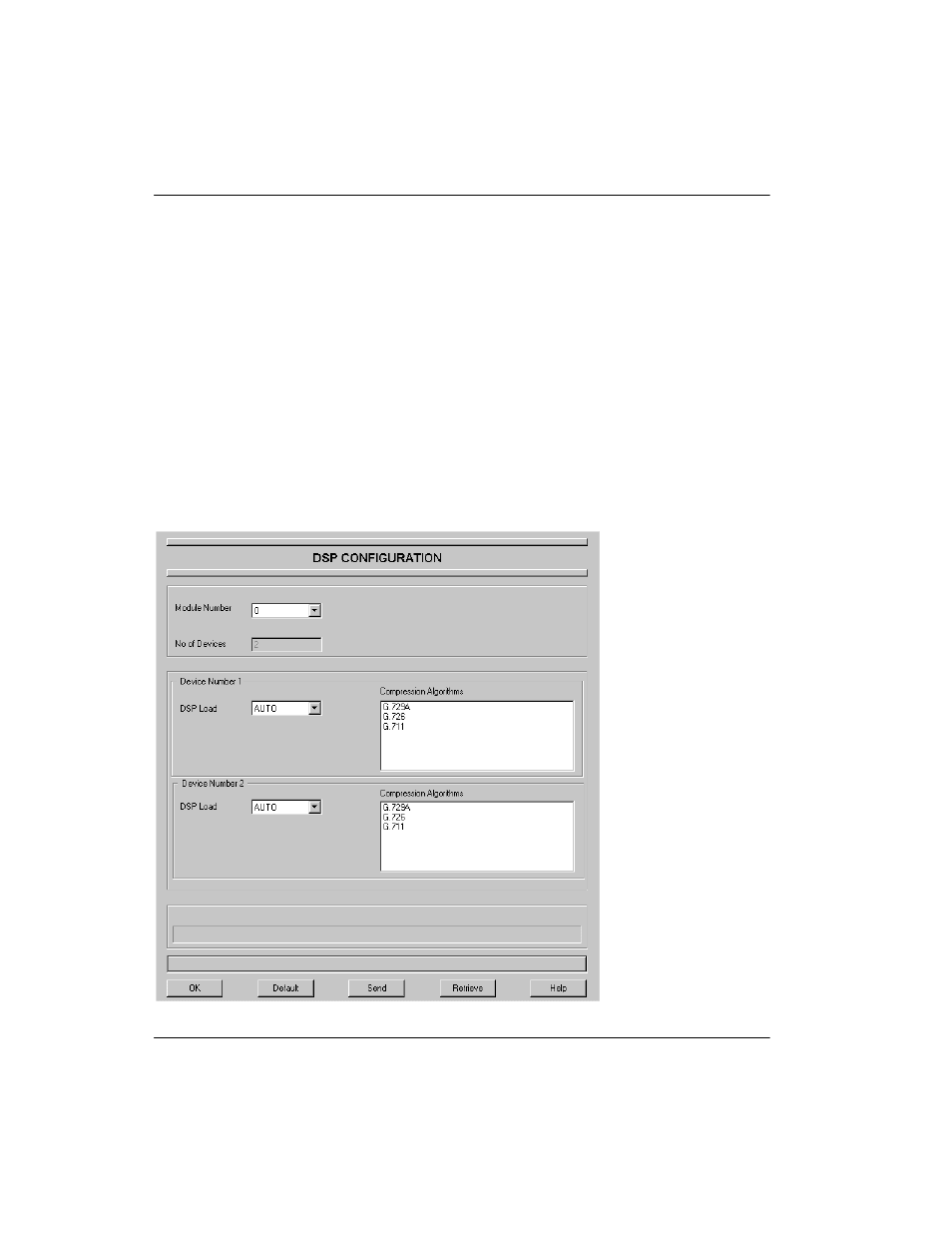

DSP Configuration property sheet
