Remote Gateway 9150 Installation and Administration Guide 223
January 2005 Configuring the Remote Gateway 9150 unit
4 If you selected Local or Local & Remote, click the Configure button for the
port you are configuring.

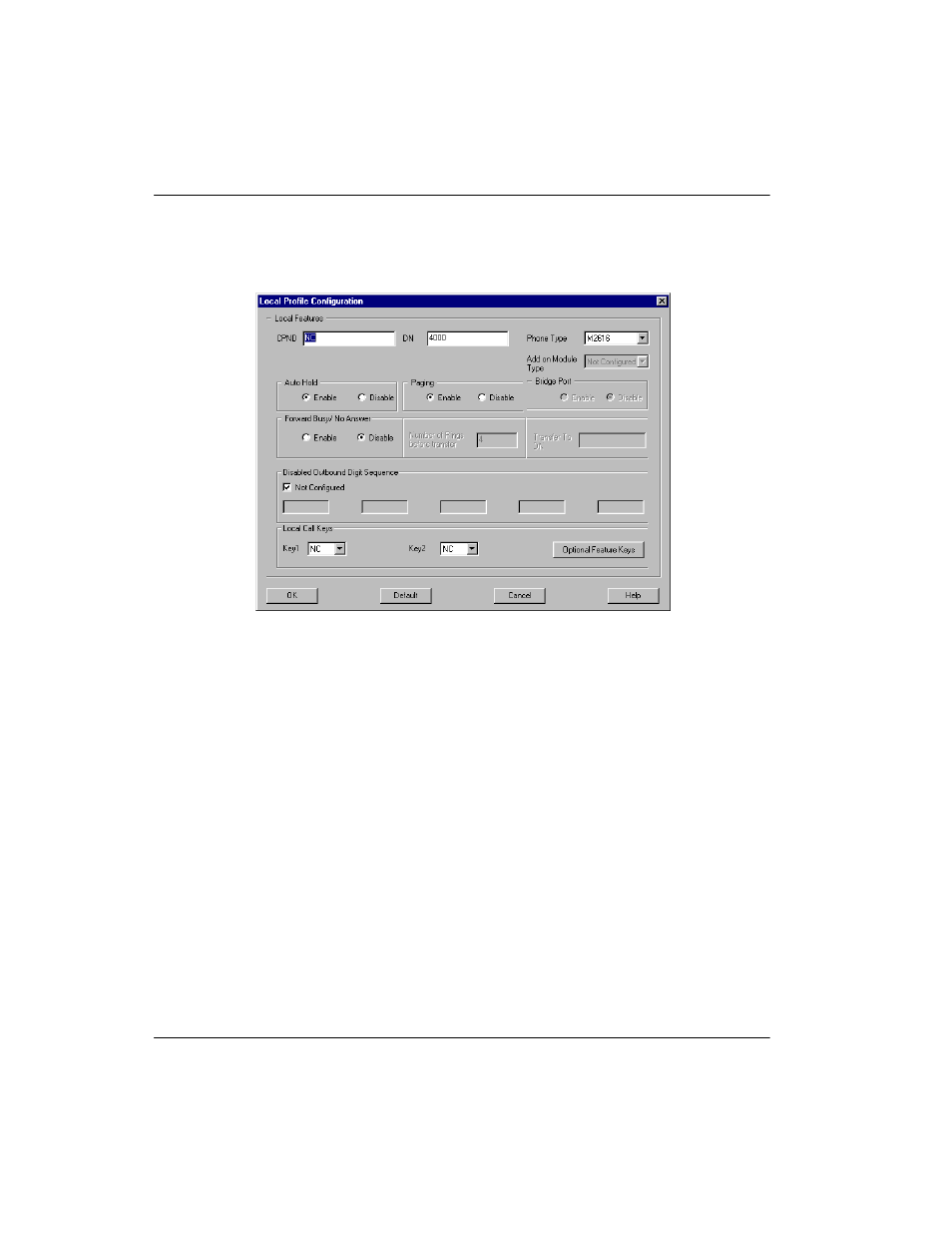

Result: The Local Profile Configuration dialog box displays.
5 In the Local Features: CPND field, enter a description (for example, FAX).
6 Enter the number used to ring the fax machine in the Local Features: DN
field.
7 Click on the Disable option button under Local Features for the following:
!
Auto Hold
!
Forward Busy/No Answer
!
Paging
!
Bridge Port (Local and Remote only)
8 If applicable, enter the digits that prevent a certain type of call from
proceeding in the Disabled Outbound Digit Sequence field.
9 Specify the positions of the Local Call Keys.
Note: Key 0 is not recommended for ports defined as Local and Remote.
Keys 8 and 9 are recommended. You can select Key 0 if the port is
configured as local only.
