162 Remote Gateway 9150 Installation and Administration Guide
Using Configuration Manager Standard 3.1
6 Click on the OK button.

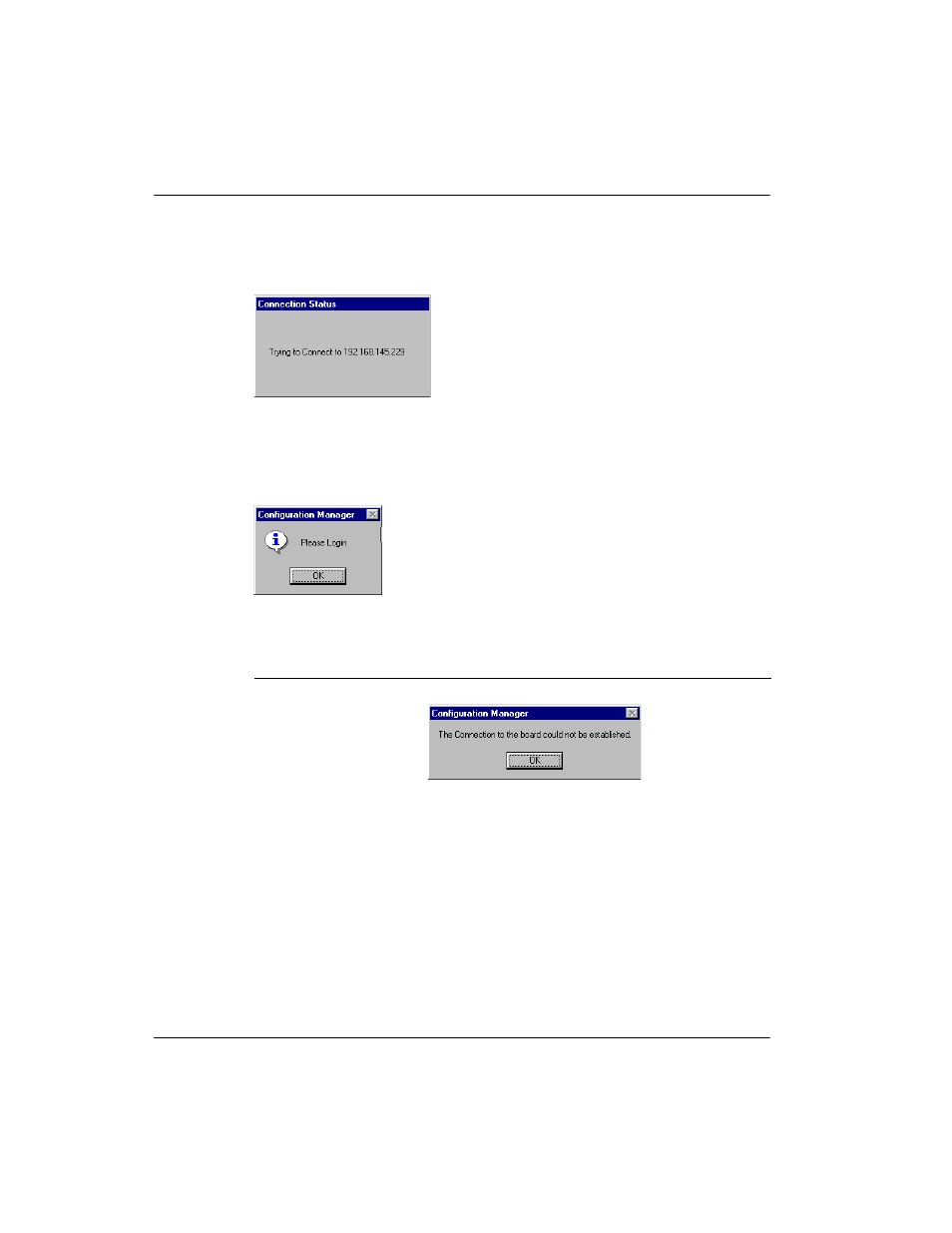

Result: Configuration Manager initiates a connection attempt. The
Connection Status message box displays. It is similar to the following:
Note: The connection speed can be too fast for this message to be seen in
a successful logon attempt.
If you do not enter any logon information, after two minutes Configuration
Manager displays a reminder dialog box similar to the following:
Click on the OK button to return to Step 4 on page 161.
IF the logon attempt THEN
fails, a message box similar to the following displays:
Complete the following actions:
1 Click on the OK button.
2 Go back to Step 1 on page 161 to try again.
