10 Function Description

10.1

Operating States

10.1.1 Overview of the Operating States

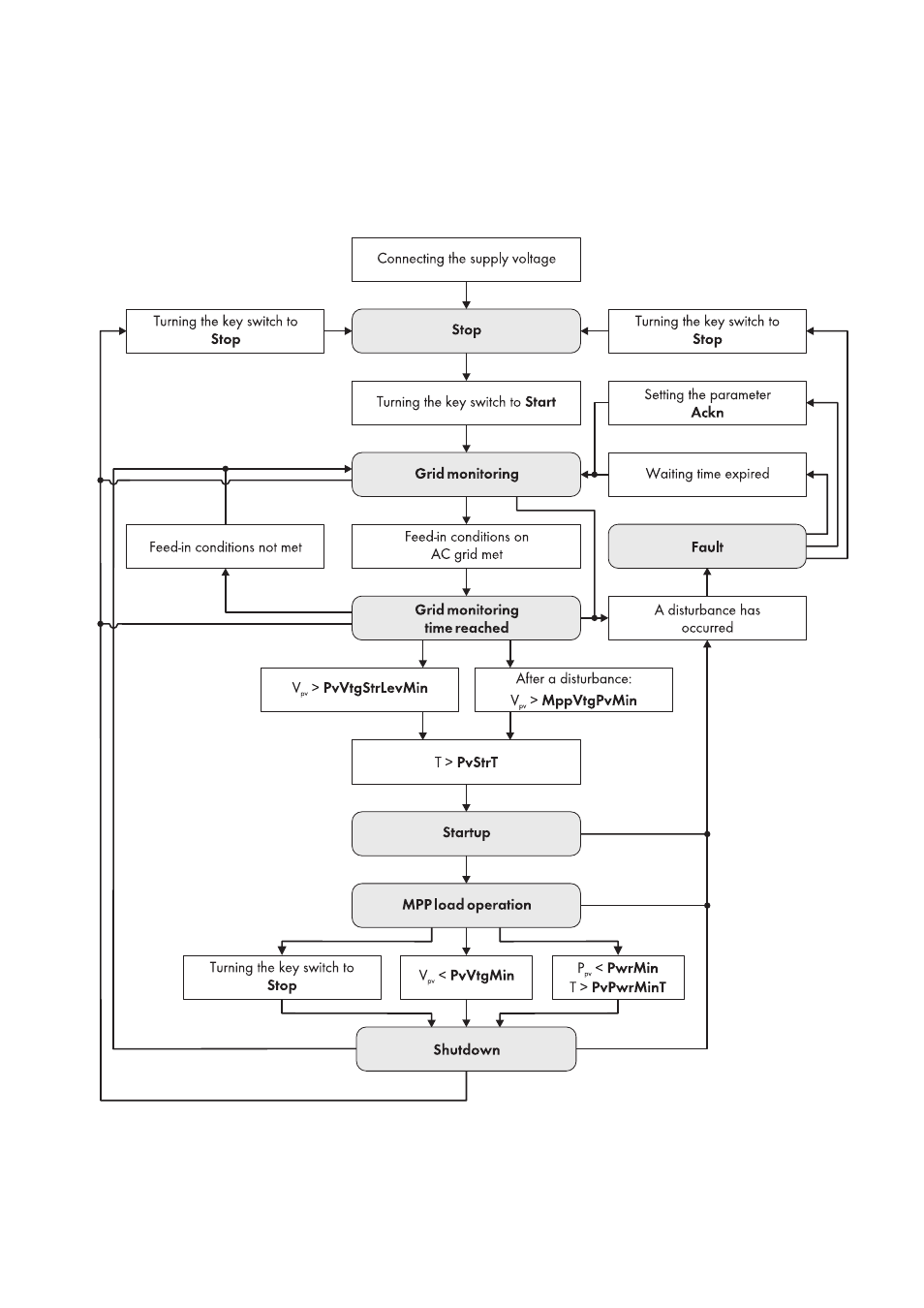

Figure 13: General overview of the operating states of the inverter
