Delta Electronics AC Servo Drive ASDA-B User Manual
Page 87
Chapter 4 Display and Operation|ASDA-B Series
4-32
Revision February 2008, Doc. Name: 2006PDD23000009
NOTE
1) JOG operation is effective only when Servo On (when the servo drive is enabled).
2) Before using JOG function, please ensure to confirm that P2-10 (DI1) is set to 101 (Servo On).
Otherwise, the JOG operation cannot be enabled even if the FUNC key has been pressed.
3) The users can set the acceleration and deceleration time in advance (the settings of parameter P1-
34, P1-35 and P1-36).

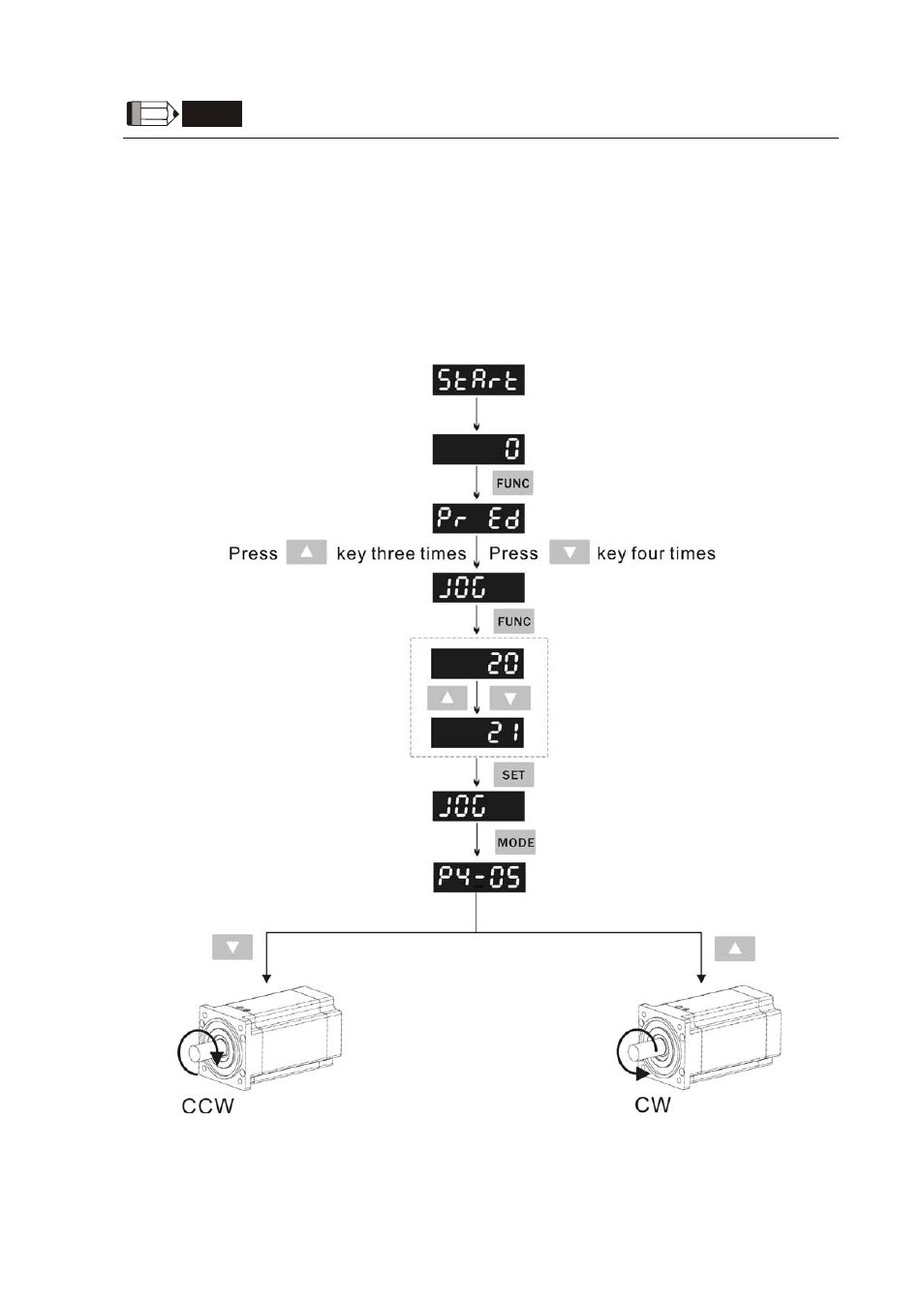

Figure 4.16
