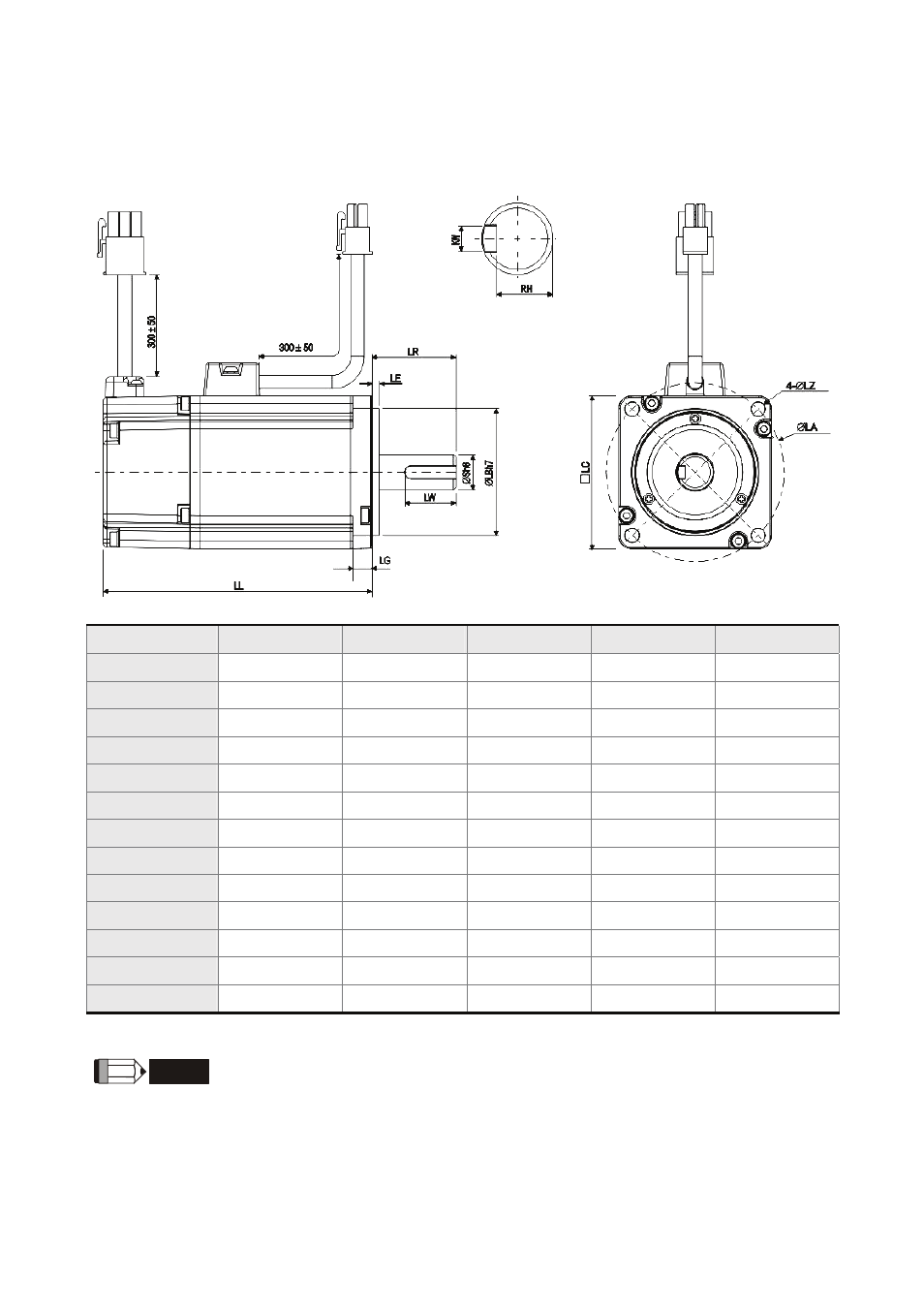

11.6 Dimensions of Servo Motor
Motor Frame Size: 80mm Models
Model C30401 S C30602 S C30604 S C30804 7 C30807 S
LC 40 60 60 80 80
LZ 4.5 5.5 5.5 6.6 6.6
LA 46 70 70 90 90
S 8 14 14 14 19
LB 30 50 50 70 70
LL (without brake) 100.6 105.5 130.7 112.3 138.3
LL (with brake) - 141.6 166.8 152.8 178
LR 25 30 30 30 35
LE 2.5 3 3 3 3
LG 5 7.5 7.5 8 8
LW 16 20 20 20 25
RH 6.2 11 11 11 15.5
kW 3 5 5 5 6
NOTE
1) Dimensions are in millimeters. Actual measured values are in metric units.
Please use metric for precise measurements.
2) The boxes ( ) in the model names are for optional configurations. (Please refer
to Section 1.2 for model explanation)
