Delta Electronics AC Servo Drive ASDA-B User Manual
Page 25
Chapter 2 Installation and Storage|ASDA-B Series
2-4
Revision February 2008, Doc. Name: 2006PDD23000009

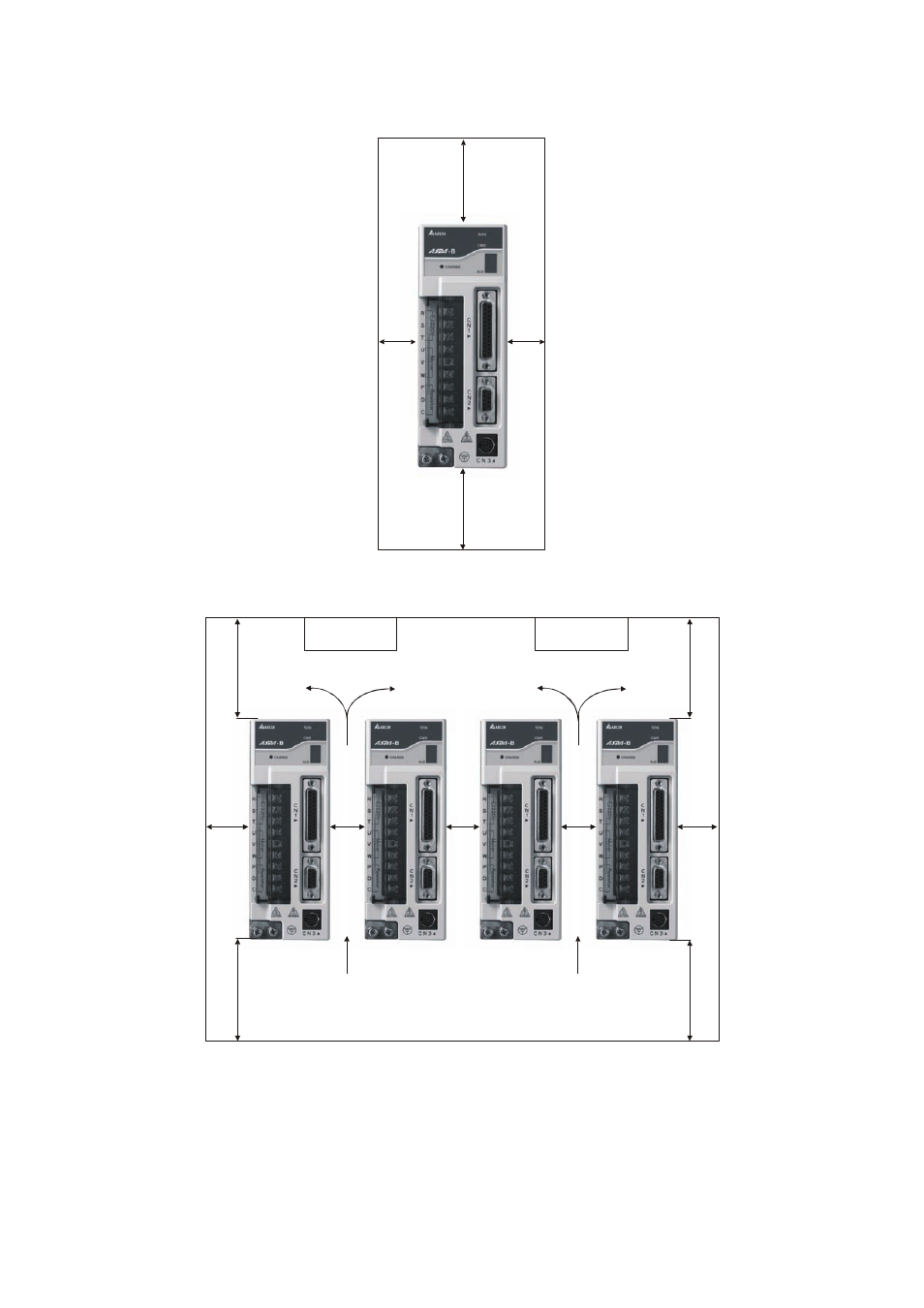

Minimum Clearances
2.0in
50mm
(
)
min.
2.0in
50mm
(
)
min.
0.8in
20mm
(
)
min.
0.8in
20mm
(
)
min.
Side by Side Installation
FAN
FAN
4.0in
100mm
(
)
min.
4.0in
100mm
(
)
min.
4.0in
100mm
(
)
min.
4.0in
100mm
(
)
min.
1.6in
40mm
(
)
min.
1.6in
40mm
(
)
min.
0.4in
10mm
(
)
min.
0.4in
10mm
(
)
min.
0.4in
10mm
(
)
min.
Air flow
Air flow
