Chapter 11 Specifications|ASDA-B Series

Revision February 2008, Doc. Name: 2006PDD23000009

11-13

„

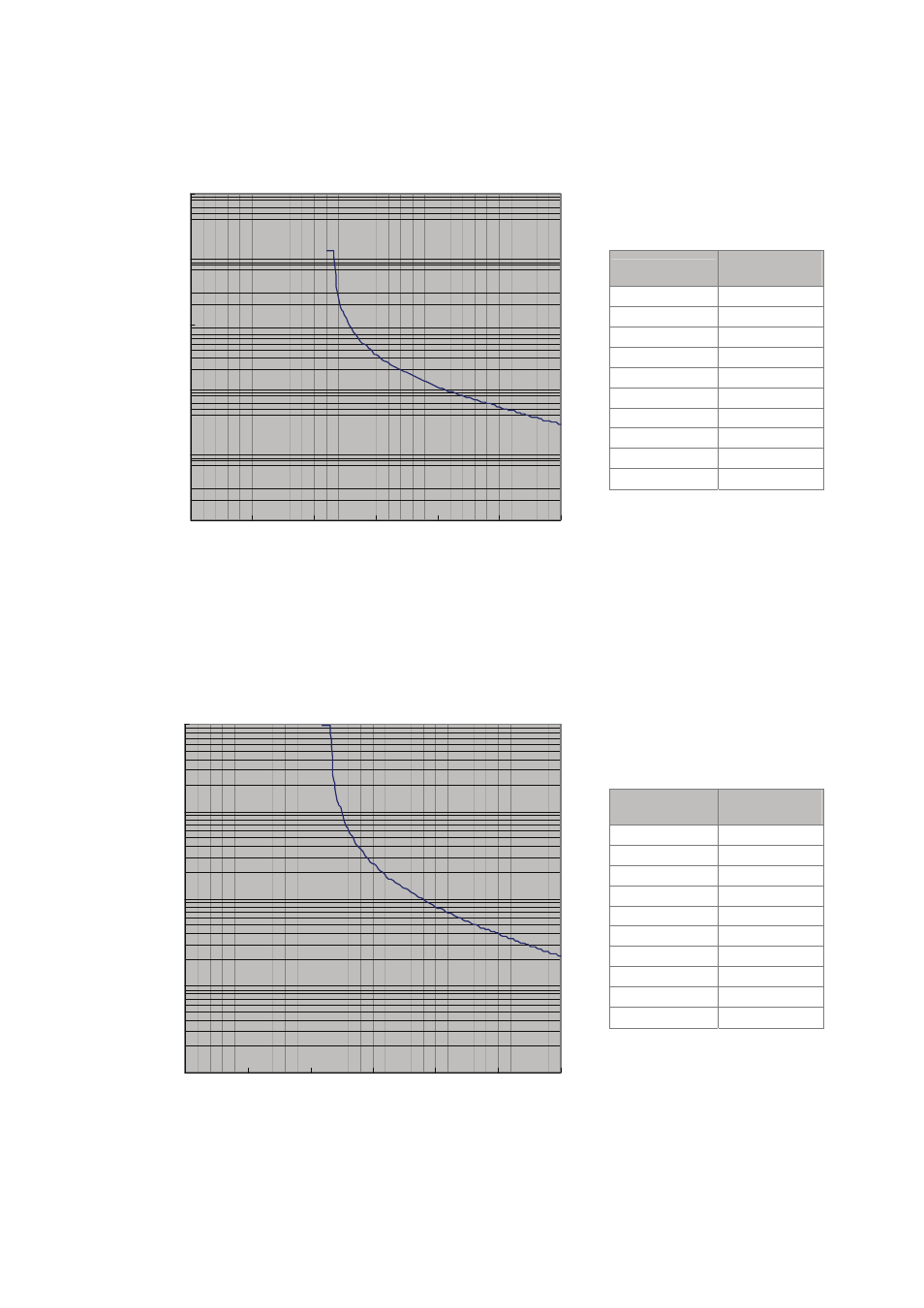

Chart of load and operating time (ECMAC30804

…

7)

0.1

1

10

100

1000

10000

0

50

100

150

200

250

300

Load (% rated torque)

O

pe

rat

ing

T

im

e (

sec

on

ds

)

Load

Operating

Time

120% 254.5s
140% 50.4s
160% 26.0s
180% 16.4s
200% 11.0s
220% 8.2s
240% 6.0s
260% 4.7s
280% 3.8s
300% 2.9s

„

Chart of load and operating time (ECMAC30807

…

S)

0.1

1

10

100

1000

0

50

100

150

200

250

300

Load (% rated torque)

O

pe

rat

in

g T

im

e (s

ec

ond

s)

Load

Operating

Time

120% 185.8s
140% 36.8s
160% 19.0s
180% 12.0s
200% 8.0s
220% 6.0s
240% 4.4s
260% 3.4s
280% 2.8s
300% 2.2s
