Chapter 4 Display and Operation|ASDA-B Series
4-4
Revision February 2008, Doc. Name: 2006PDD23000009
SAVE Mode (Save parameter settings from the Drive to the Keypad)
1. When the power is applied to the AC servo drive, the digital keypad will enter into the monitor
mode first.
2. In monitor mode, pressing SAVE key can switch to SAVE mode.
3. In SAVE mode, pressing SAVE key can execute the function the users select and save the new
parameter settings.
4. In SAVE mode, pressing UP and DOWN key can save the desired memory block that the users
want to save.
5. If the desired memory block has not been used, the LCD display will show the message
“xxxxxxxx”. If the desired memory block has been used and there are parameters data saved in
it, the LCD display will show the MCU version of the servo drive and the preset file name, such
as “BL001-XX”. The last two words “XX” can be modified by the users and its range is within 0 ~
9 or A ~Z. The users can select the words by using UP and DOWN keys and change the words
by using SHIFT key.
6. In SAVE mode, pressing MODE key once can return to the previous display and finally exit the
SAVE mode. However, if the users have pressed the SAVE key, i.e. the SAVE operation has
been executed, the MODE key will become disabled, the users cannot return to previous
display and only can move to the next step.
7. The users can save the parameters in some memory block repeatedly on the condition that the
version, inertia and models of the servo drives should be the same. If one of the parameters is
set by the servo drive in different condition, it cannot be saved into the same memory block with
other parameters and must be saved to other memory blocks. Before re-using the same
memory block, please perform the “Memory Block Clear” function first (Please see the
description of parameter P8-11).

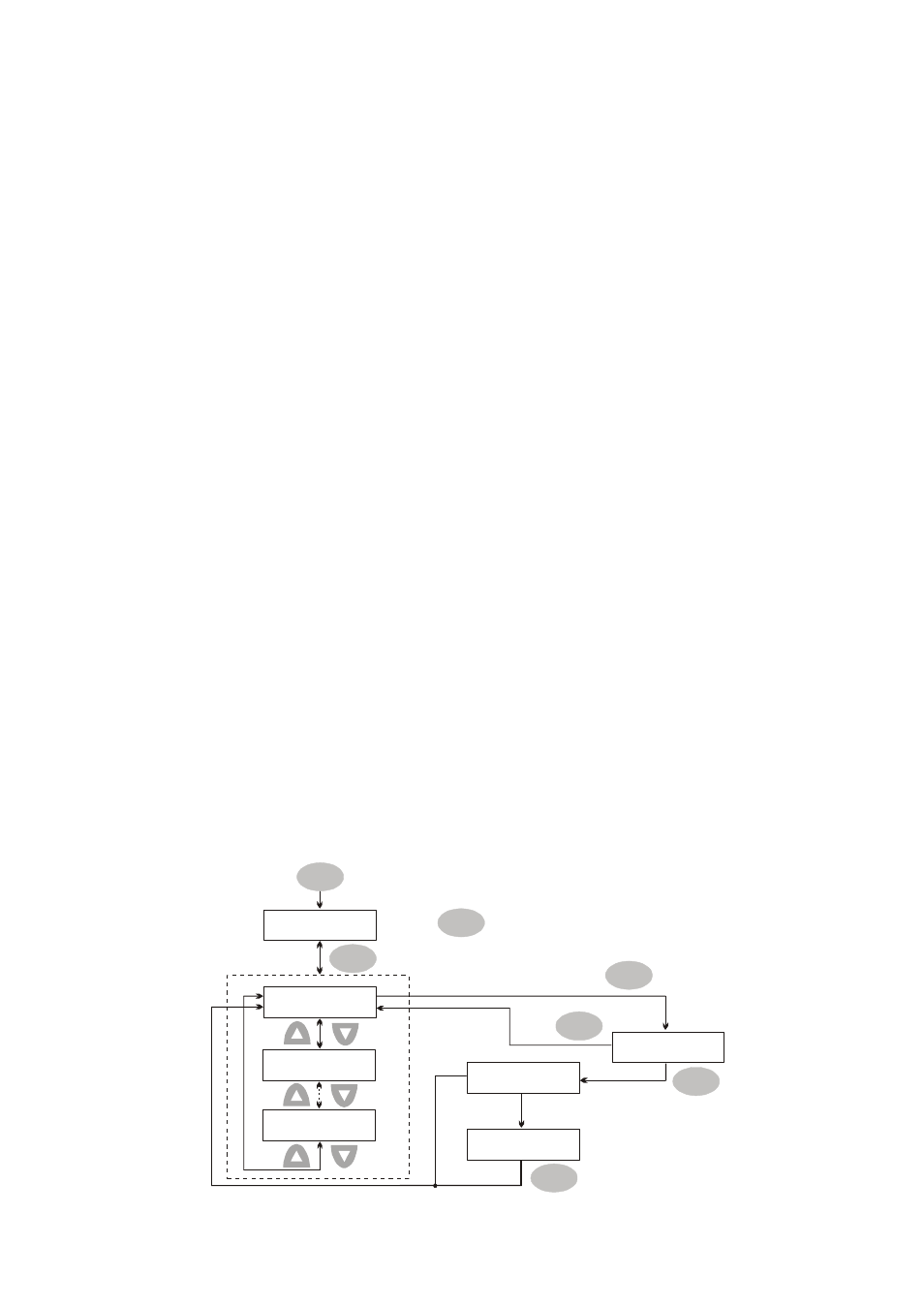

Figure 4.3
KPD SAVE 0.000
ROM24:********
YES
KPD SAVE 0.000
ROM00:saving
NO
KPD SAVE 0.000
ROM01:********
KPD SAVE 0.000
ROM00:********
KPD SAVE
yes?
KPD SAVE 0.000
ROM00:********?
SAVE
SAVE
SAVE
MODE
SAVE
KPD SAVE 0.006
ROM00:BL003-00
SAVE
Press key to return to previous display
MODE
