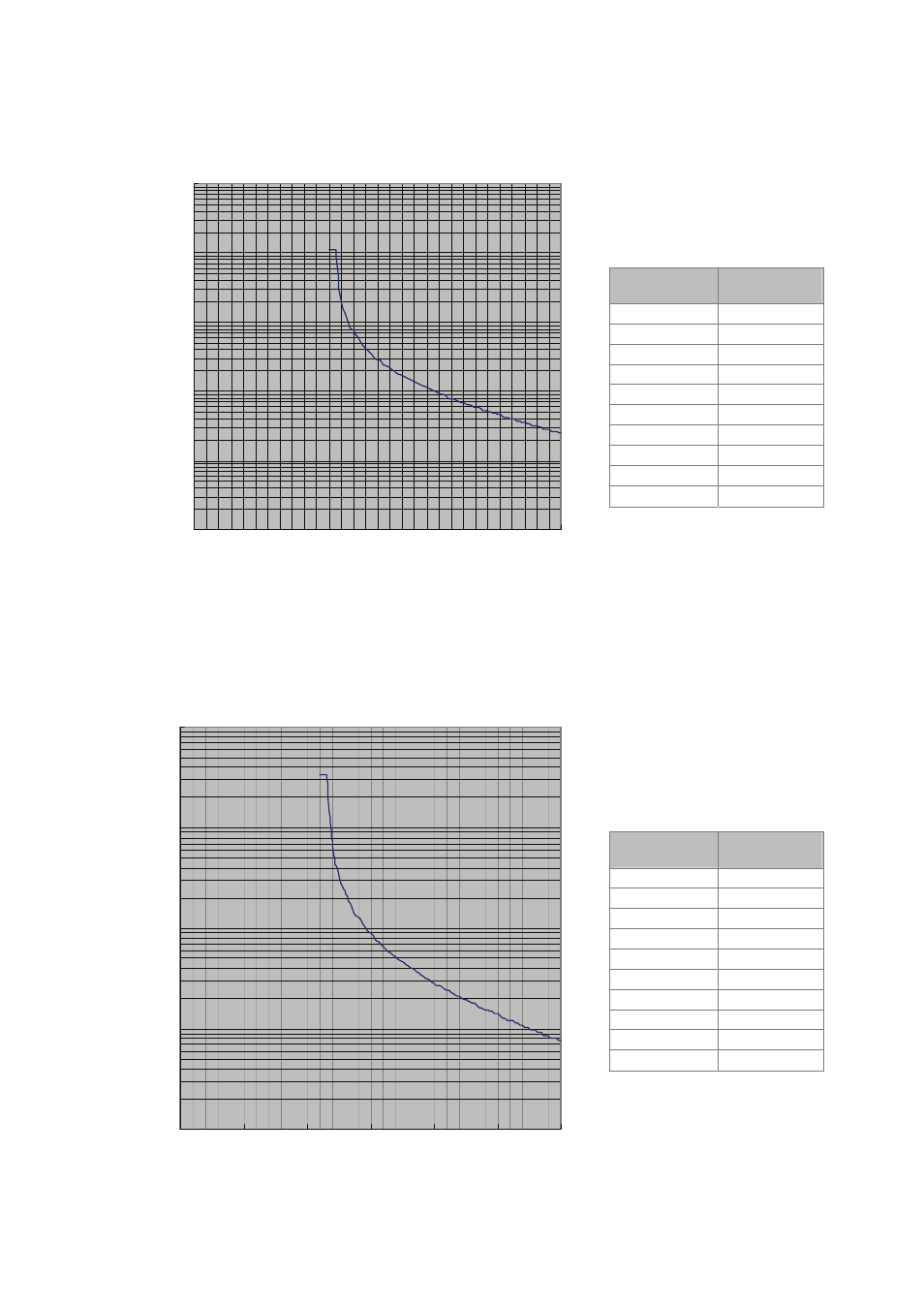

„ Chart of load and operating time (ECMAC30602 S)
0.1
1
10
100
1000
10000
0 50 100 150 200 250 300
Load (% rated torque)
O
per
at
ing
T
im
e (
sec
on
ds
)
Load
Operating
Time
120% 213.6s
140% 42.3s
160% 21.8s
180% 13.7s
200% 9.2s
220% 6.9s
240% 5.0s
260% 3.9s
280% 3.2s
300% 2.5s
„ Chart of load and operating time (ECMAC30604 S)
0.1
1
10
100
1000
0 50 100 150 200 250 300
Load (% rated torque)
O
pe
rat
in
g T
im
e (s
ec
on
ds
)
Load
Operating
Time
120% 65.0s
140% 12.9s
160% 6.6s
180% 4.2s
200% 2.8s
220% 2.1s
240% 1.5s
260% 1.2s
280% 1.0s
300% 0.8s
