Chapter 12 Application Examples|ASDA-B Series
12-6
Revision February 2008, Doc. Name: 2006PDD23000009

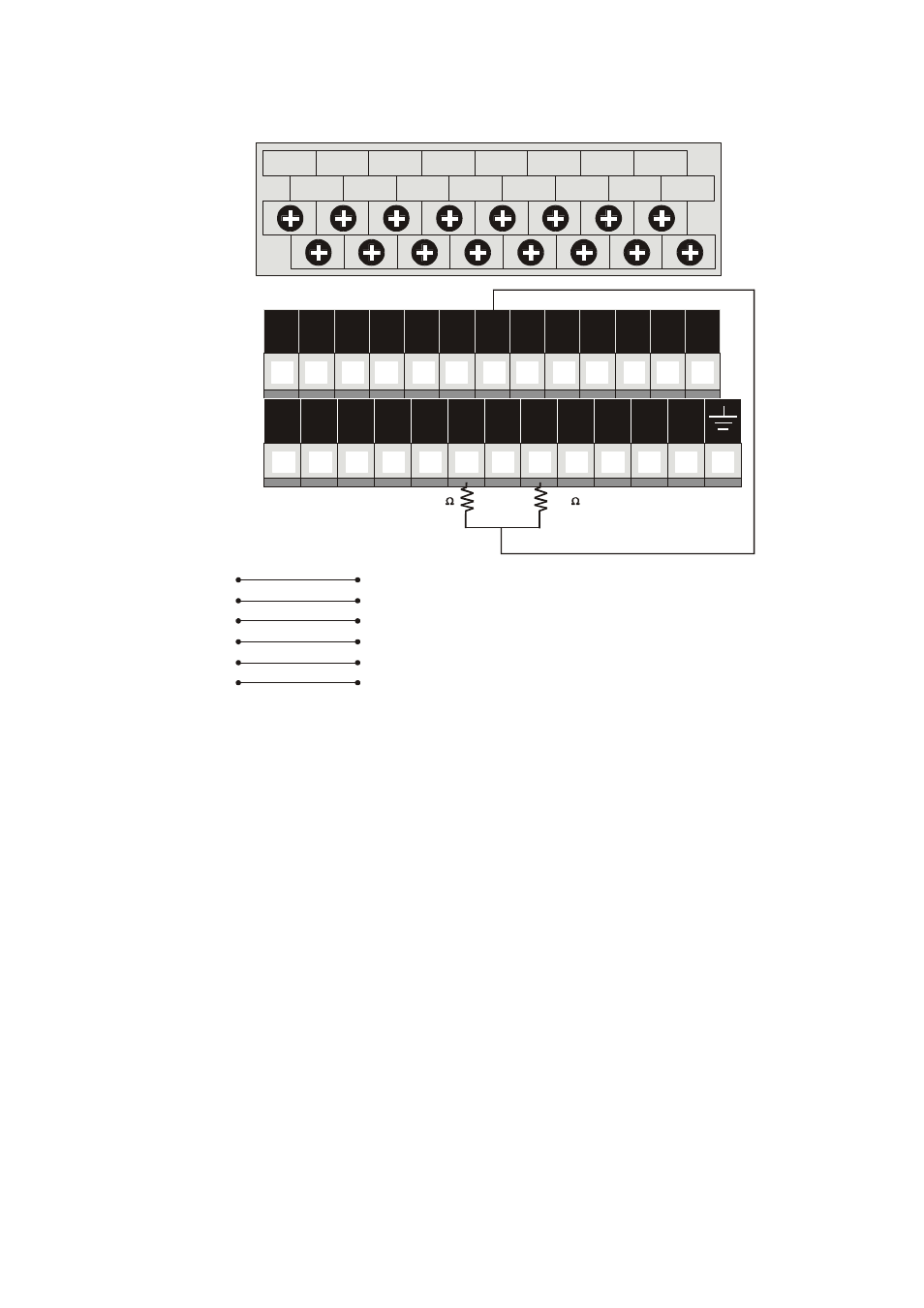

Connections between DVP-EH series PLC and ASDA-B series Servo Drive
Y0
Y1
Y2
Y3
Y4
Y5
Y6
Y7
C0
C1
C2
C3
C4
C5
C6
C7
DVP-EH
1
2
3
4
5
6
7
8
9 10 11 12 13
14 15 16 17 18 19 20 21 22 23 24 25
ASDA-B
CN1
Y2
Y3
Y4
Y5
Y0
Y1
1k
1k
Connections:
DVP-EH
Y0
Y1
Y2
Y3
Y4
Y5
ASDA-B CN1
22
20
5
3
15
17
