Chapter 3 Connections and Wiring|ASDA-B Series
3-24 Revision February 2008, Doc. Name: 2006PDD23000009
3.4 Encoder Connector CN2
Integrated within the servo motor is an incremental encoder with 2,500PPR and commutation signal.
When power is first applied to the servo drive, control algorithms detect the motor's rotor position through
imbedded sensors in the motor within 500msec approximately.
Feedback to the amplifier of the UVW signals for commutation is via the ABZ encoder signal wires. Following
rotor position sensing the amplifier automatically switches to encoding for commutation control.
The 2500PPR encoder is automatically multiplied to 10000PPR by X4 logic for increased control accuracy.

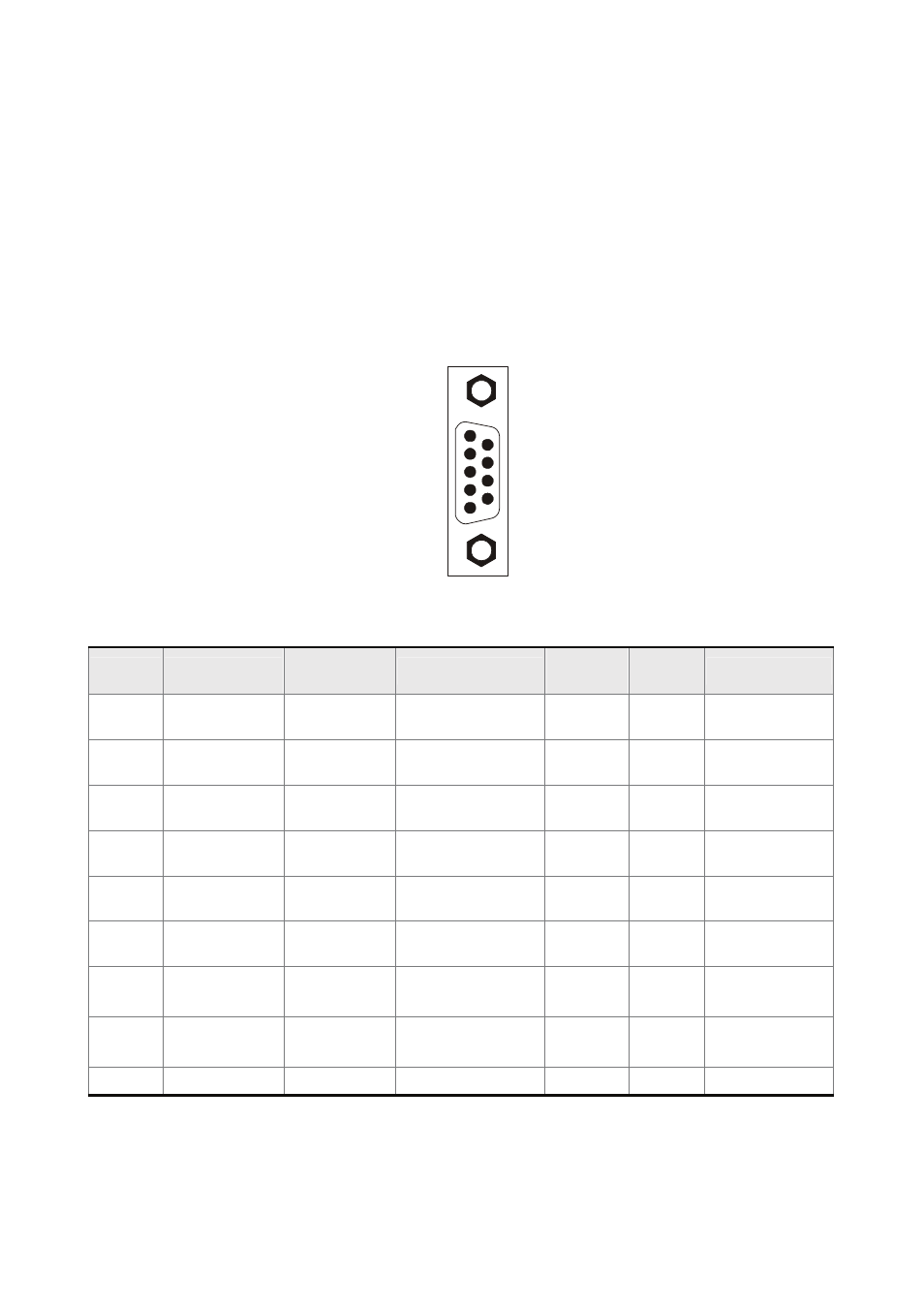

Figure 3.8 The layout of CN2 Drive Connector:
1
6
5
9
CN2 Terminal Signal Identification
Pin No Signal Name
Terminal
Identification
Description
Military
Connector
Fast
Connector
Wire Color
4 A phase input A
Encoder A phase
output
A A1 Black
5 /A phase input /A
Encoder /A phase
output
B A4 Black / Red
3 B phase input B
Encoder B phase
output
C A2 White
2 /B phase input /B
Encoder /B phase
output
D A5 White / Red
9 Z phase input Z
Encoder Z phase
output
F A3 Orange
1 /Z phase input /Z
Encoder /Z phase
output
G A6
Orange / Red
8 Encoder power +5V Encoder 5V power S A7
Brown &
Brown / White
6, 7 Encoder power GND Grounding R A8
Blue &
Blue / White
Shielding Shielding Shielding L A9 Shielding
