Chapter 4 Display and Operation|ASDA-B Series
Revision February 2008, Doc. Name: 2006PDD23000009 4-23
WRITE Mode ( Parameter settings written out from Keypad to the Drive)
1. When the power is applied to the AC servo drive, the digital keypad will enter into the monitor
mode first.
2. In monitor mode, pressing FUNC key first. Then, pressing UP key five times or DOWN key two
times can switch to WRITE mode.
3. In WRITE mode, pressing UP and DOWN key can write out the desired memory block that the
users want to write out.
4. If the desired memory block has not been used, the LED display will show the message “00000”
or “10000” or “20000” or “30000”, etc. If the desired memory block has been used, the LED
display will show the MCU version of the servo drive and the preset file name. For example, if
the MCU version is 1.014, the message “01014” or “11014” or “21014” or “31014”, etc. will show
on the LED display. The users can change the write address (memory block) by using UP and
DOWN keys.

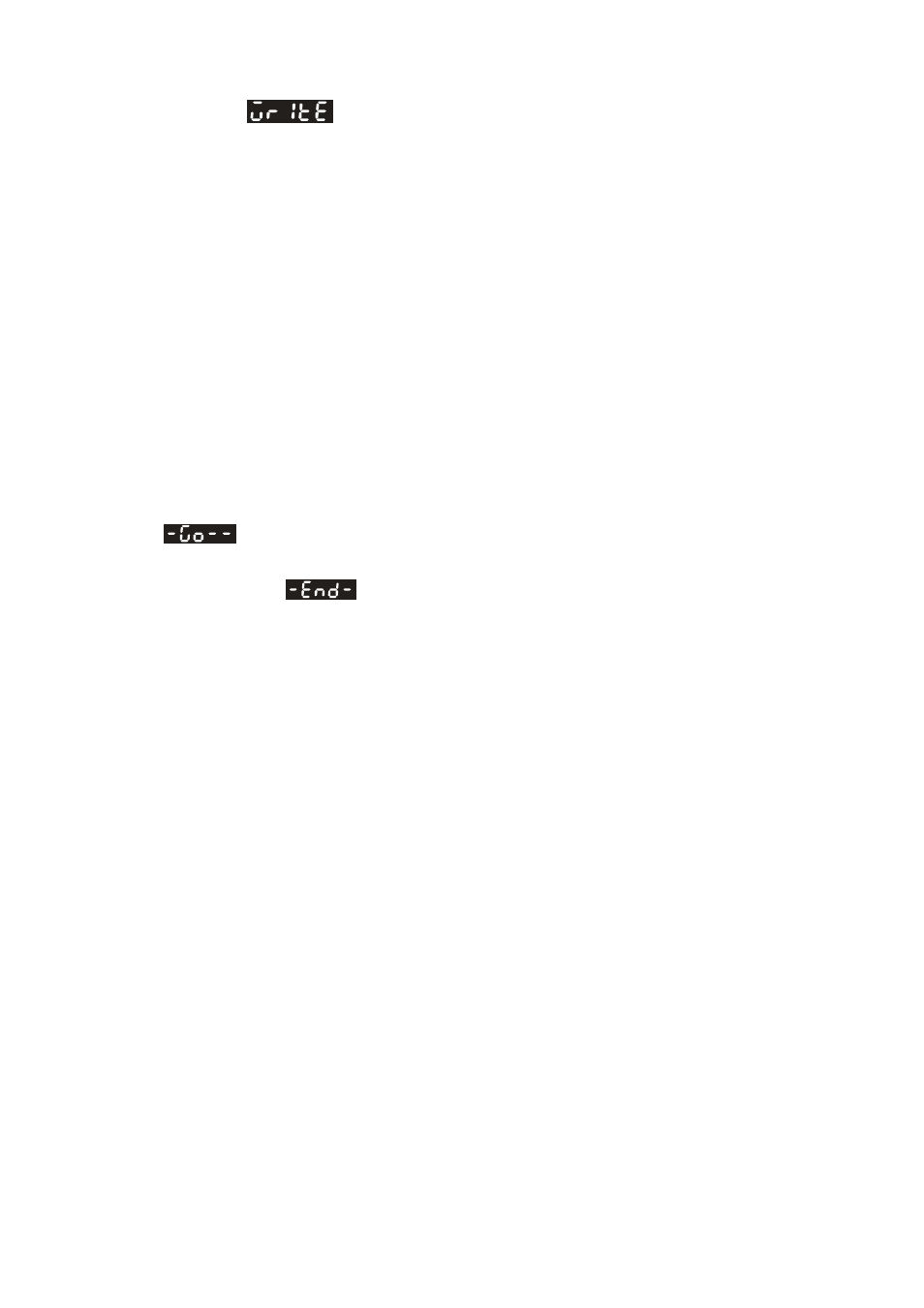

5. After the write address (memory block) is selected, press FUNC key, the LED display will show
. At this time, pressing MODE key once can return to the previous display, pressing
FUNC key can record the address and write out the data. When recording the address, the LED
display will show . After the address is written, the LED display will show “0XXXX”
(such as “01012” shown in Figure 4.11 on next page).
6. In WRITE mode, pressing MODE key once can return to the previous display and finally exit the
WRITE mode.
7. Only the parameters of the same version, the same inertia and the same model type of the
servo drives can be written out. If the servo drive version stored in the keypad is different than
the actual servo drive version, the users can make them the same via Delta Servo Drive PC
software, ASDAB_SW.
