Chapter 3 connections and wiring, 1 connections, 1 connecting to peripheral devices – Delta Electronics AC Servo Drive ASDA-B User Manual
Page 26: Chapter 3 connections and wiring -1, 1 connections -1, Connecting to peripheral devices -1
Revision February 2008, Doc. Name: 2006PDD23000009
3-1
Chapter 3 Connections and Wiring
This chapter provides information on wiring ASDA-B series products, the descriptions of I/O signals and
gives typical examples of wiring diagrams.
3.1 Connections
3.1.1 Connecting to Peripheral Devices

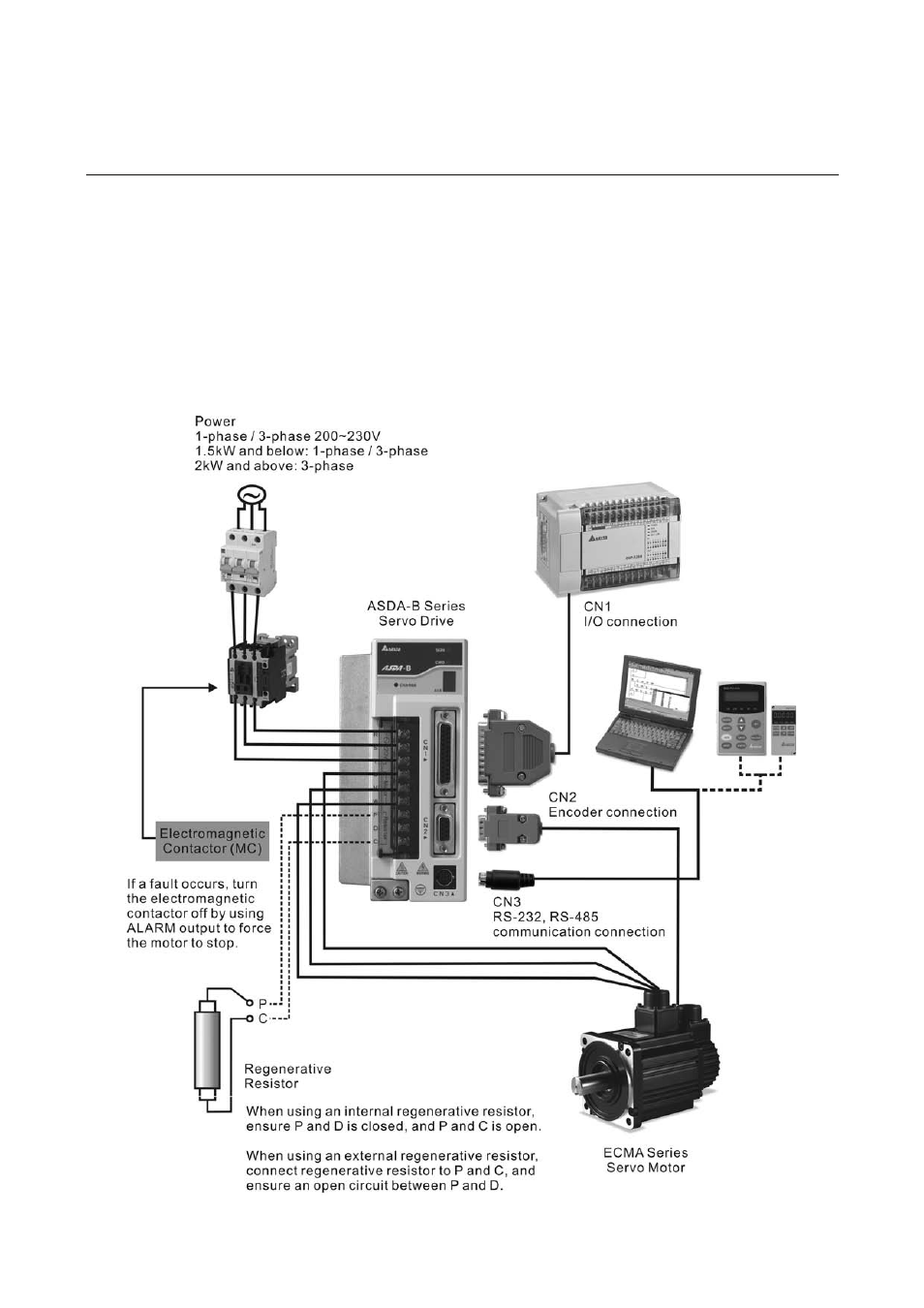

In Figure 3.1, it briefly explains how to connect each peripheral device.
Figure 3.1
